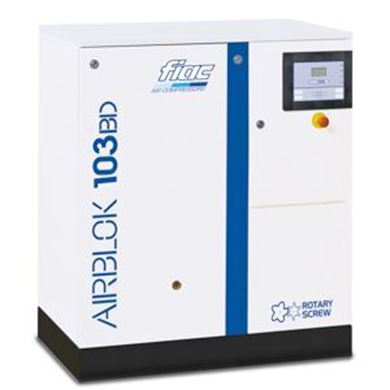

FIAC 4152026073 Airblok 103 BD Screw Compressor 10HP
Airblok 103 BD 10HP Screw Compressor 10 Bar 400V
Super Silent Belt Drive
- Microprocessor controlled
- Service schedule countdown
- Compact, totally enclosed design
- Patented automatic belt tentioner
- High efficiency IE3 motor
- Vertically mounted suction valve (No oil return)
- Quite noise levels

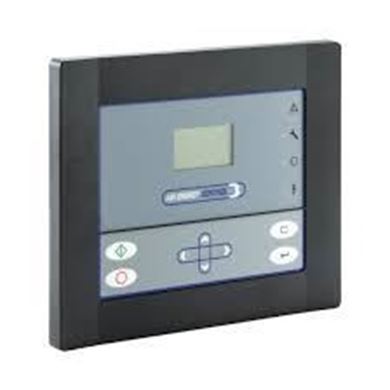

Fiac Air Energy Microprocessor Control 3
FIAC's rotary screw air compressors are the ideal option for industrial compressed air applications. They are easy to use, very well made and require minimum maintenance. The excellent layout and the top quality of the main components allows the airblok to deliver the highest quality air with the best energy efficiency; all at a very low noise output.
Management and total control of the compressor operating parameters.
LCD display Instantaneous parameters displayed during operation.
Features
- Working pressure
- Oil temperature
- Max. and min. pressure setting.
- Intelligent unload cycle management.
- Organiser: program of daily working cycles and periods of inactivity.
- Programmed maintenances schedule.
- Remote Start/Stop.
- Warning and stop alarms display and memorisation.
- Management of multi units plant: feature MASTER / SLAVE.
Technical Data
- High efficiency motor IE3
- IP55F protection class
- Ventilated control cabinet
- Long life bearings
- Silent (63 DBA)
- Output of up to 1080L per minute
- Displacement of 38.1 CFM / 64.8 M3
- 10 BAR
- 145 PSI
- 10 HP motor horsepower
- Dimensions - 1065MM x 615MM x 1070MM
- Weight - 246KG
