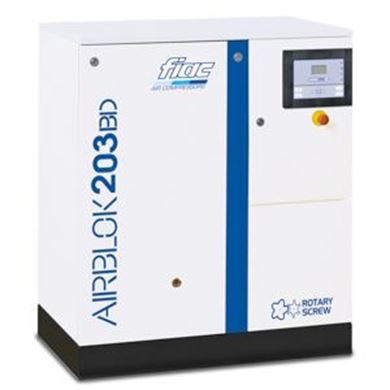

FIAC 4152026236 Airblok 253 BD Screw Compressor
Airblok 203 BD 25HP Screw Compressor 10 Bar 400V - Super Silent Belt Drive
- Microprocessor controlled
- Service schedule countdown
- Compact, totally enclosed design
- Patented automatic belt tentioner
- High efficiency IE3 motor
- Vertically mounted suction valve (No oil return)
- Quite noise levels

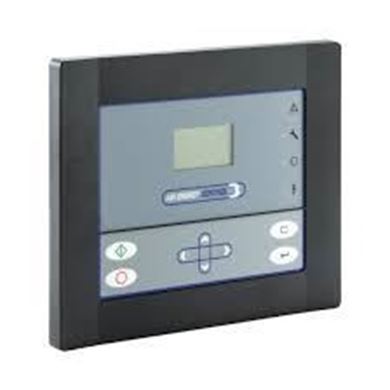

Fiac Air Energy Microprocessor Control 3-Management and total control of the compressor operating parameters.
LCD display Instantaneous parameters displayed during operation:
Features
- Working pressure
- Oil temperature
- Max. and min. pressure setting.
- Intelligent unload cycle management.
- Organiser: program of daily working cycles and periods of inactivity.
- Programmed maintenances schedule.
- Remote Start/Stop.
- Warning and stop alarms display and memorisation.
- Management of multi units plant: feature MASTER / SLAVE.
Technical Data
- HP: 25.0
- kW: 18.5
- CFM: 96.1
- PSI: 145
- Bar: 10
- Noise Level dB(A): 69
- Dimensions mm: 1130 x 780 x 1220
- Weight: 361 Kg
