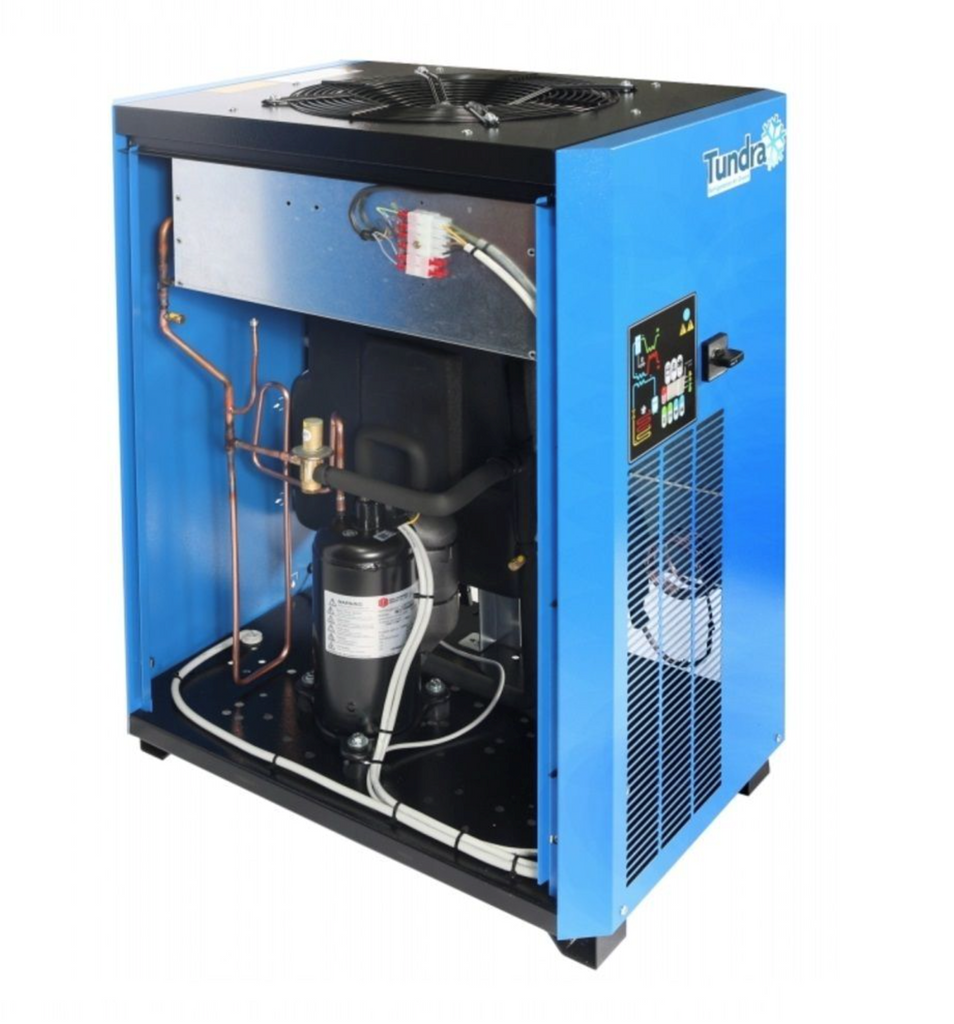

FIAC TUNDRA22/FIL Tundra Refrigerated Dryer 22cfm c/w Filters
Tundra refrigerant dryers are perfect for ensuring your air compressors air is clean and dry. The Tundra 22 CFM Refrigerant Air Dryer removes moisture from compressed air, protecting tools, equipment, and finished products from damage. By maintaining a consistent +3°C pressure dew point, it ensures high quality welding and fabrication while operating energy efficiently. With ultra high efficiency and minimal pressure drop, the Tundra 22 reduces energy costs and delivers reliable performance in both workshop and industrial environments.
Features
- 22CFM
- Operating pressure range 2 to 16 BAR
- Maximum inlet air temperature of 60 degrees Celsius
- Ambient air temperature - 0C to 50C
- Constant +3C dew point delivered at all times, unlike thermal dryers.
- Dewpoint indicator as standard
- Illuminated power on switch
- Ultra high efficiency heat exchangers
- Minimises pressure drop thus minimising costs
Technical Data
- Displacement - 21 CFM
- Refrigerant - R134a
- M3 per hour - 35
- M3 per minute - 583
- Connection - 1/2”
- Input voltage - 230V
- Dimensions - 365mm x 455mm x 500mm
- Weight 23 Kg
