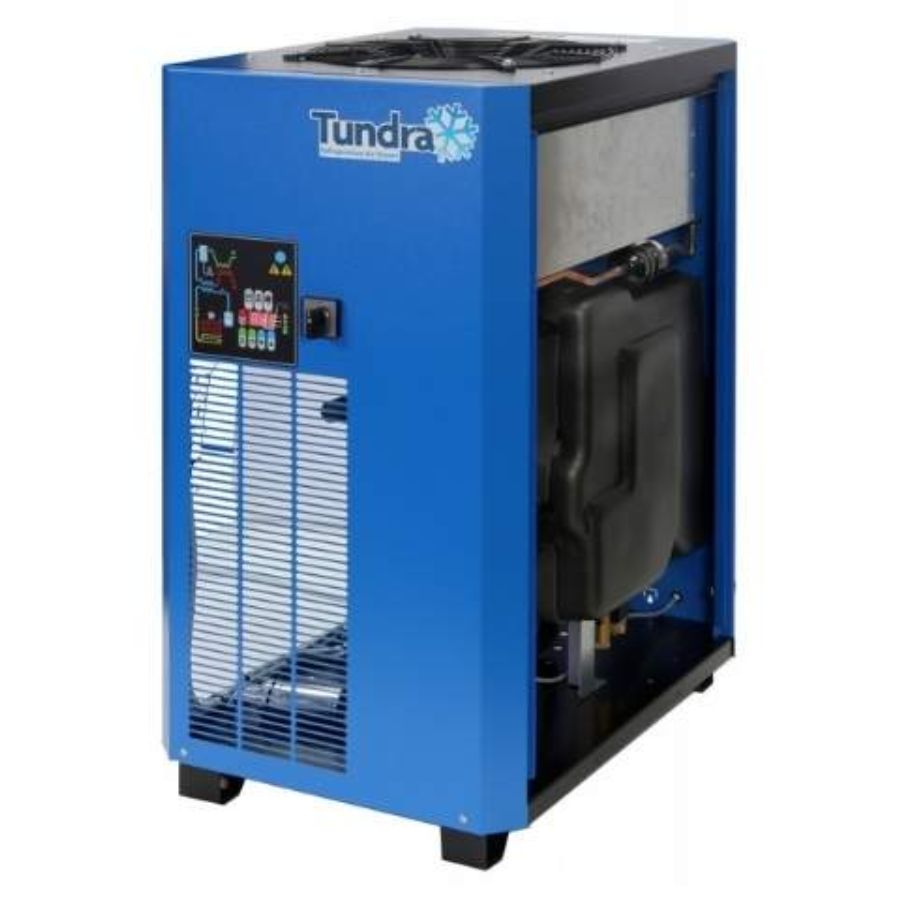

Tundra Refrigerated Air Dryer – 64 Series – 64cfm – with Pre and After Filters
Tundra refrigerant dryers are perfect for ensuring your air compressors air is clean and dry.
Key features
- Operating pressure range 2 to 16 BAR
- Maximum inlet air temperature of 60 degrees Celsius
- Ambient air temperature – 0C to 50C
- Constant +3C dew point delivered at all times, unlike thermal dryers.
- High pressure range available with pressure up to 50 BAR
- Dewpoint indicator as standard
- Illuminated power on switch
- Ultra high efficiency heat exchangers
- Minimises pressure drop thus minimising costs
Technical Data
| Displacement | 64 CFM |
| Refrigerant | R134a |
| M3 per hour | 108 |
| Connection | 1/2″ |
| Input voltage | 230V |
| Dimensions | 410mm x 560mm x 550mm |
| Weight | 28 Kg |
