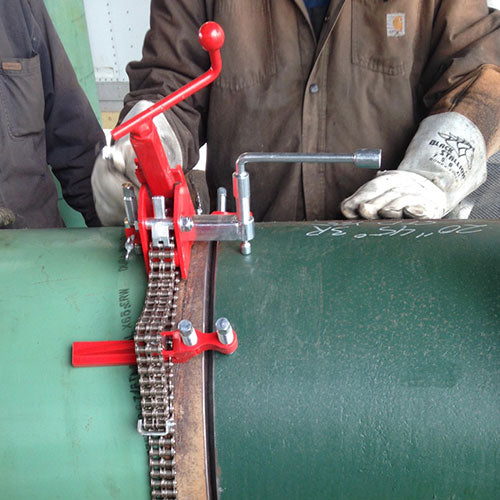

Single chain clamps are designed for aligning, Double chain clamps are designed for aligning and reforming.
All clamps include:
- Length of chain required for the pipe ran
- Double jackscrew jackbars listed for the pipe range
- Main block
- Fine adjustment
- Fitting alignment device
- Jackscrew wrench
- Parts and operating manual
- Metal Storage box
- Alignment - can align all pipe schedules accurately
- Reforming - jackscrews enable the elimination of 'Hi-Lo' points either side of the weld joint. Can reform up to schedule 40 pipes (Double chain clamps only).
- Adaptable - one chain clamp covers the range of 8 cage clamps.
- No Tack Jackbars - joints can be fully welded without removing the clamp.

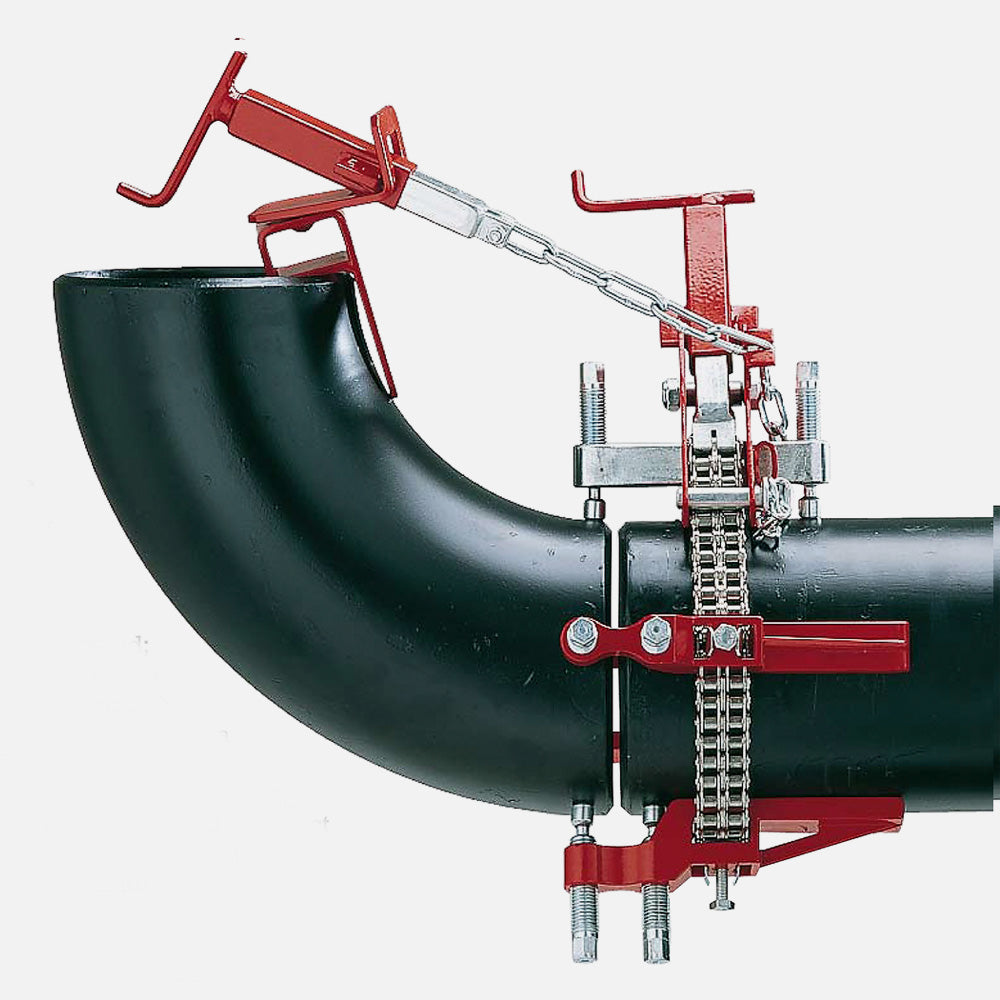

- Versatile - elbows, tees and other fittings can be accurately aligned using the Fitting Alignment Device.
- Quality - jackbars are cast from high quality steel alloys.
- Additional jackbars can be added if extra pressure is required.
- Jackscrews - Jackbars have two jackscrews with independently pivoting pads to compensate for uneven surfaces.
- Stainless Steel - available in both carbon and stainless steel versions
Single Chain Clamps :-
Part No. Pipe Diameter No. Of Reforms Pipe Aligns Pipe Shipping
Range "/mm Jackbars to Schedule to Schedule wgt kgs
SCC20 4-20 / 101.6 - 508 7 40 80 17
SCC20SS 4-20 / 101.6 - 508 7 40 80 17
SCC36 10-36 / 254 - 914.4 8 40 80 42
SCC36SS 10-36 / 254 - 914.4 8 40 80 42
SCC54 10-54 / 254 - 1371.6 13 40 80 82
SCC54SS 10-54 / 254 - 1371.6 13 40 80 82

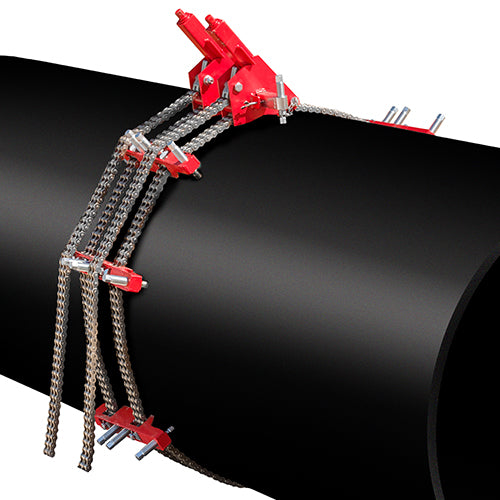

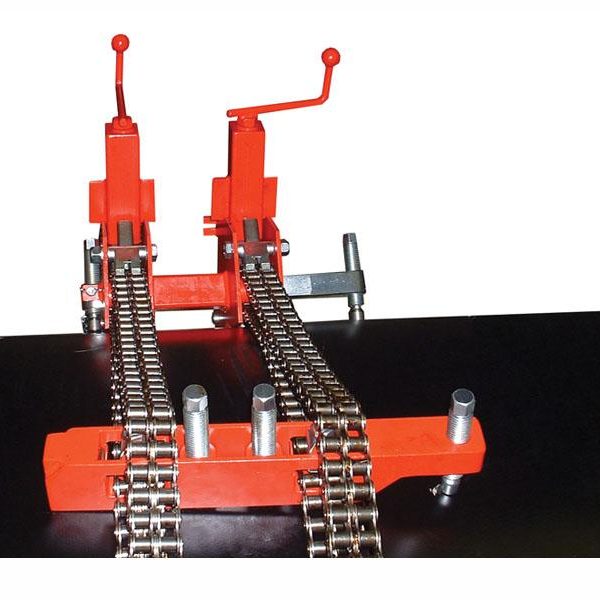

Double Chain Clamps :-
Part No. Pipe Diameter No. Of Number of Shipping
Range "/mm Jackbars Main Blocks wgt kgs
DCC36 10-36 / 254-914 9 1 100 / 220
DCC36SS 10-36 / 254-914 9 1 100 / 220
DCC48 10-48 / 254-1219 12 1 126 / 278
DCC48SS 10-48 / 254-1219 12 1 126 / 278
DCC54 10-54 / 254-1372 14 1 136 / 300
DCC54SS 10-54 / 254-1372 14 1 136 / 300
DCC60 10-60 / 254-1524 16 1 149 / 328
DCC60SS 10-60 / 254-1524 16 1 149 / 328
DCC72 10-72 / 254-1829 20 1 176 / 387
DCC72SS 10-72 / 254-1829 20 1 176 / 387
