Flange Aligners

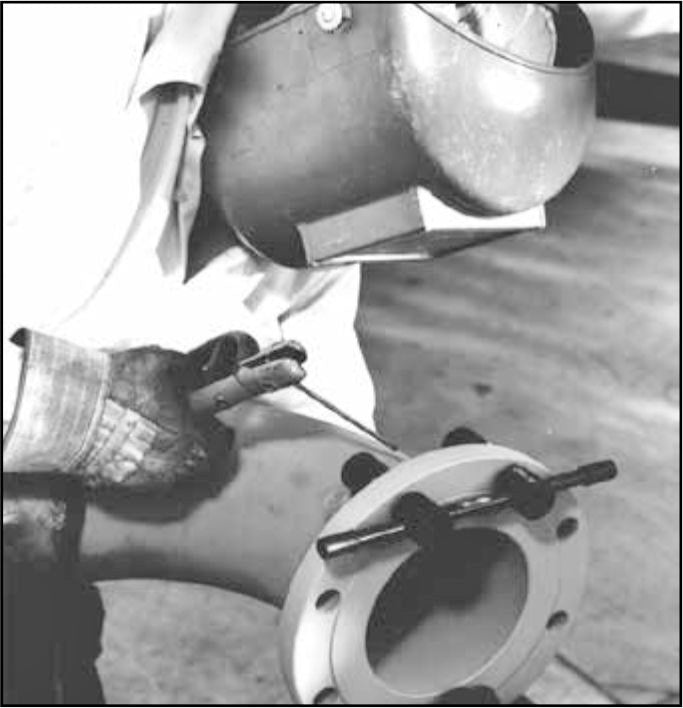

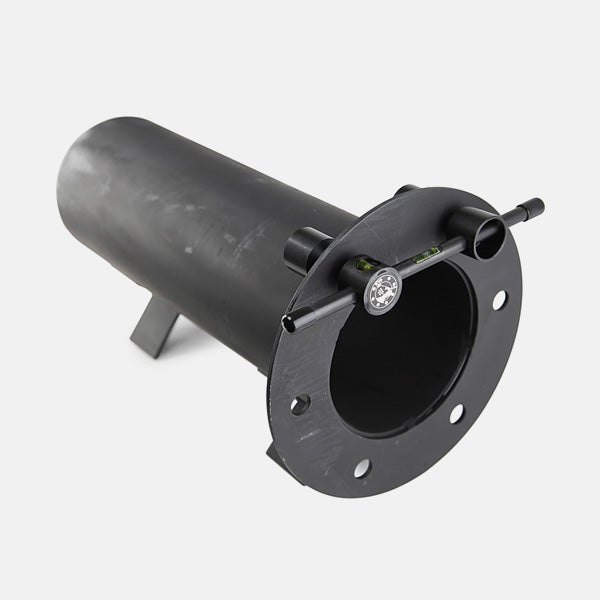

The pipe flange aligner will make 2 holes of the flange horizontally level with the ground and vertically level the face in one easy step.
Threaded models have fast release double lead threads, and all model have one pin that has a 360 degree vial for easier vertical levelling.
Features and advantages:
Threaded models have fast release double lead threads, and all model have one pin that has a 360 degree vial for easier vertical levelling.
Features and advantages:
- Cuts fit up time in half, saving on valuable labour time
- All models machined from steel to ensure a sturdy and lasting tool
Two Hole Flange Pins
Part No. Description Size
42050-TM Two Hole Flange Pin Mini 5/16” - 63/64” Holes
42050-T Two Hole Flange Pin Standard 1/2 “ - 1 7/16”
42050-TL Two Hole Flange Pin Large up to 1 15/16”
42050-TXL Two Hole Flange Pin Extra Large 5/8” - 3.0”

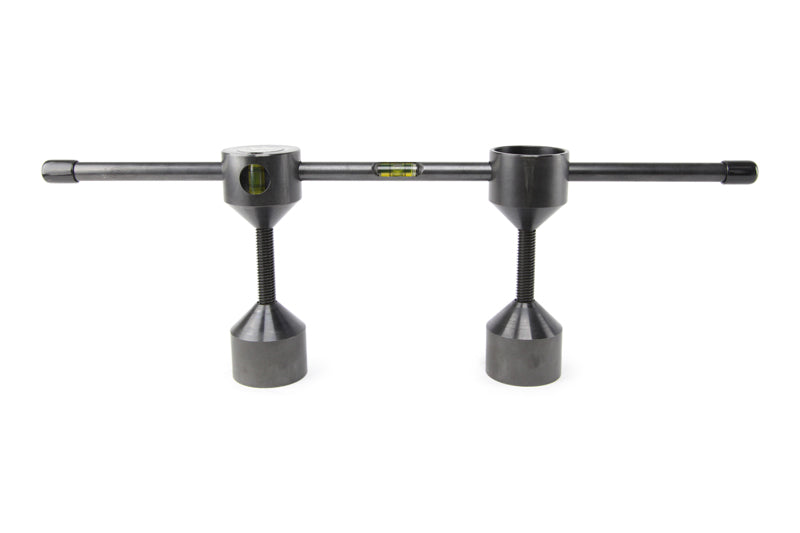

Pipe Flange Aligner
Part No. Description Size

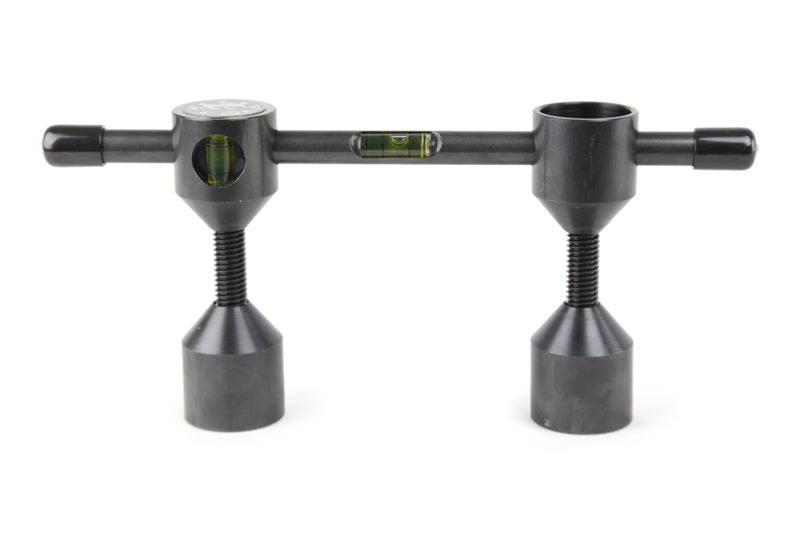

38240-T Pipe Flange Aligner Up to 180mm hole distance

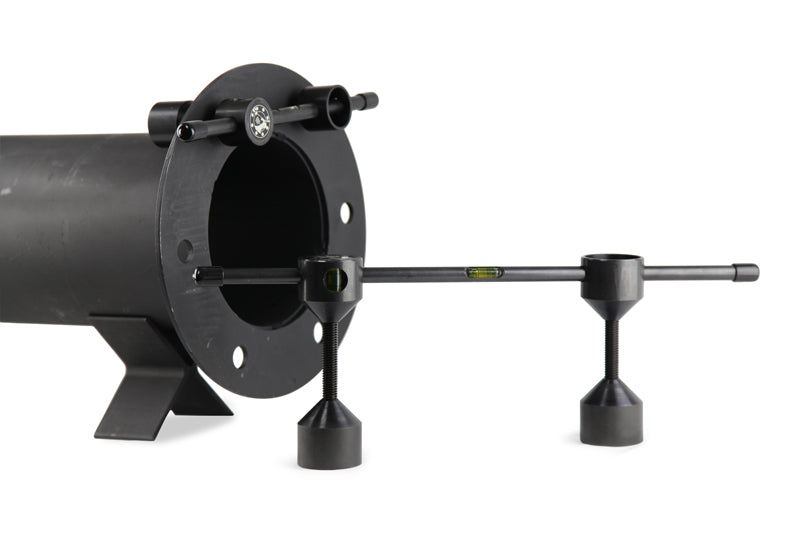

38420-TL Pipe Flange Aligner Up to 365mm hole distance
