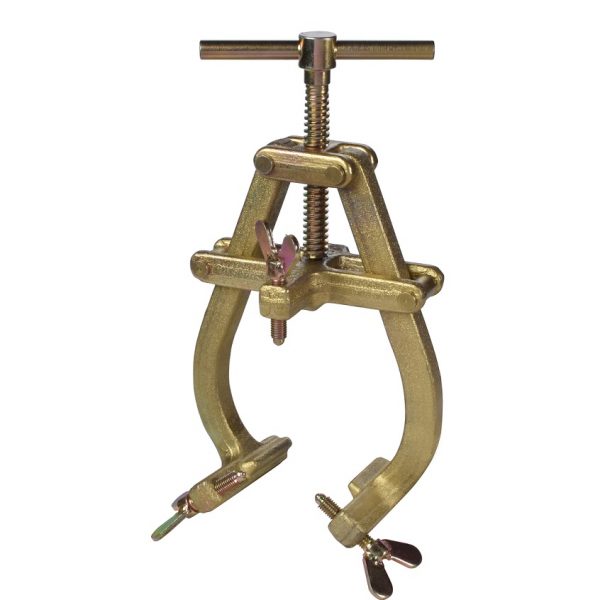

Pipe alignment clamp. 1-14” o/d

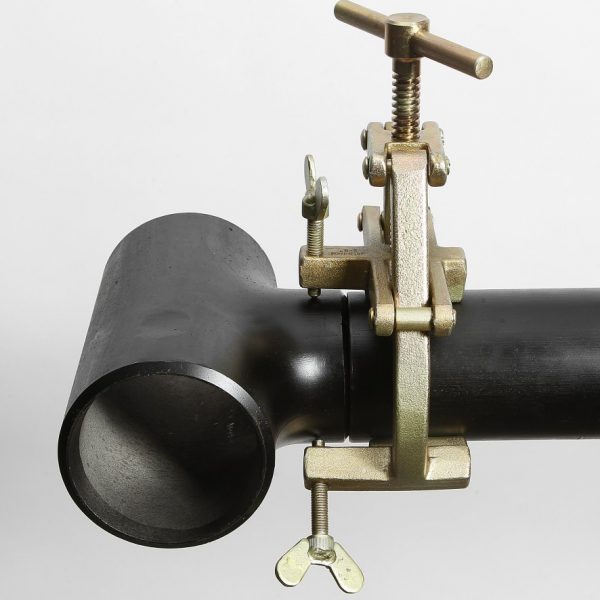

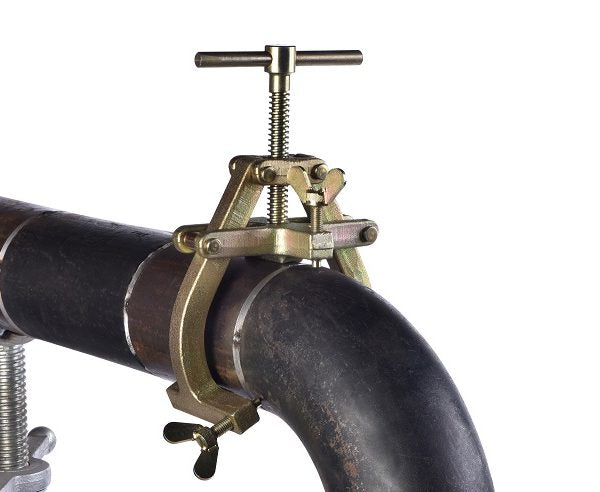

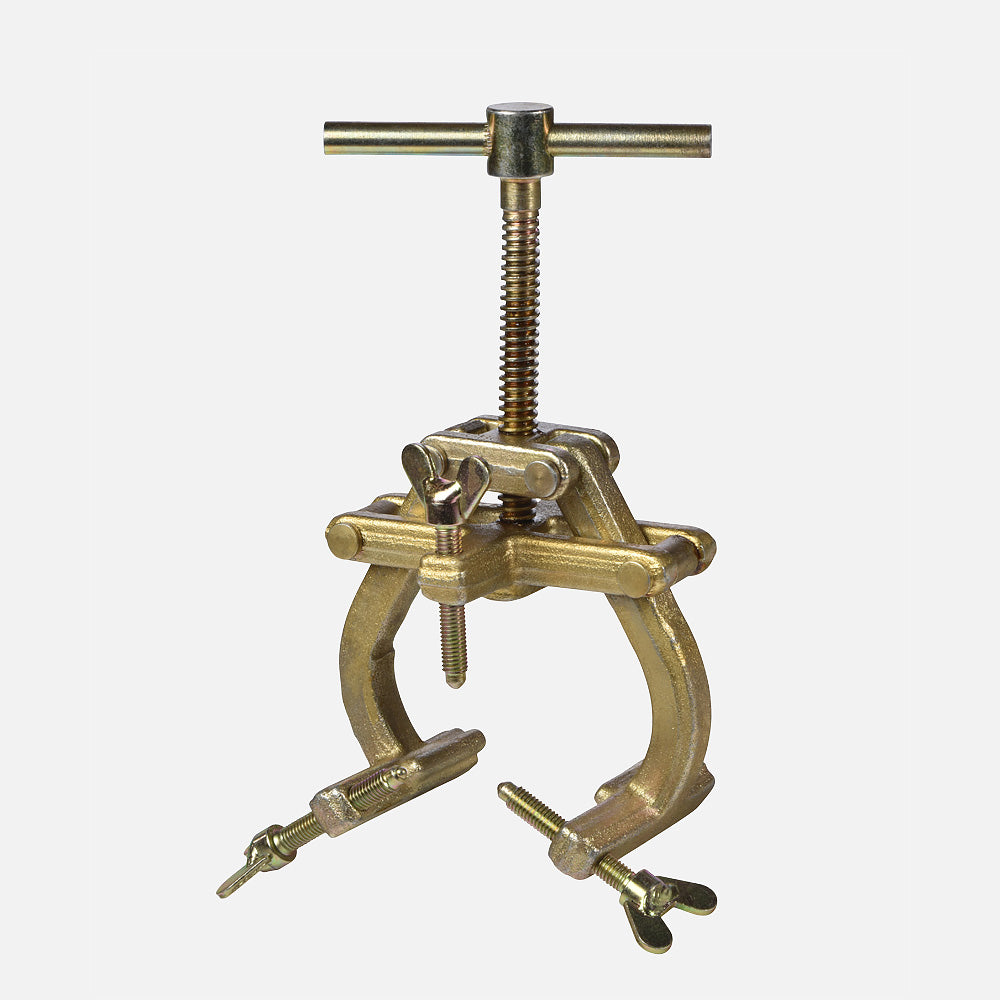

The Gold Bridge Clamp is manufactured out of forged steel to enable maximum strength and durability. A quality product at low cost.
- Quick and easy to use
- Combines accuracy with safety Instant centring
- Wing bolts with stainless steel bearings
Part No. Pipe Diameter Imperial Pipe Diameter Metric Weight KG/LBS
GBC3 1”-3” 20-90 mm 1.4 / 3
GBC5 2”-5” 50-150 mm 3 / 7
GBC7 4”-7” 90-190 mm 3.3 / 7.5
GBC9 5”-9” 125-225 mm 7 / 15.5
GBC14 10”-14” 225-370 mm 9 / 20
Stainless Steel covers can be fitted quickly to the clamps. This makes the contact points of the clamp stainless, thus eliminating contamination of the pipe.
Stainless Steel Shoes & Screws
Part No. Pipe Clamp Size
GBC3SSK 1”-3”
GBC5SSK 2”-5”
GBC7SSK 4”-7”
GBC9SSK 5”-9”
GBC14SSK 10”-14”
Part No. Pipe Clamp Size
GBC3SSK 1”-3”
GBC5SSK 2”-5”
GBC7SSK 4”-7”
GBC9SSK 5”-9”
GBC14SSK 10”-14”
