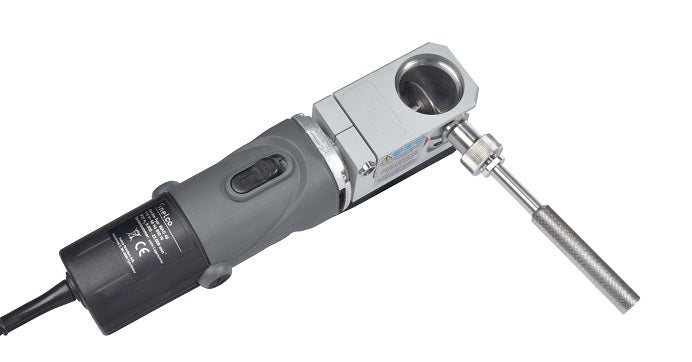

Portable Tungsten Electrode Grinder
Grinds electrodes up to 4mm diameter
The MasterPoint Handy is a portable tungsten electrode grinder, that is both environmentally friendly and has the ability to repeatably grind quality points on tungsten electrodes.It is equipped with an integrated, replaceable dust filter, protecting the operator and the environment against the potentially harmful dust produced during electrode grinding.
Specification
- Voltage: 110V / 220V
- Voltage: 15-180 degree angle adjustment range
- Power: 850W
- Grinding Speed 28-50 m/sec
- Disc rotating speed: 22,000-28,000rpm
- Minimum grinding length: 19mm standard, 15mm with special electrode clamps
- Grinding angle range: 15-180 degrees
- Integrated Dust Filter Easy to change
- Weight: 2.8KG
