GBC MPP2P/MPP2 Masterpurge Pro2 Plus/Mobile-MasterPurge Pro2 Plus Weld Purge Monitor-0.5ppm (MPP2P)
Measures oxygen levels down to 0.00005% (0.5ppm)
The top of the range portable, digital oxygen monitor
- Accuracy to 0.5 ppm
- Temperature regulated maintenance free zirconium cell
- Graphic display (blue & white)
- Built-in recognition for 110v-240v power sources
- Internal battery power for up to 90 min
- Integrated programmable sound function
- Date and time function for data logging
- Easy to use software
- Low permeability measure hose (FPM) for accurate measurements
- Connects via RS 232 interface, Bluetooth, CAN-Bus, AUX (AMI)
- Can be calibrated to ambient oxygen
- Software updateable
- Multi language: English, French, German, Dutch, Czech, Danish
- Data logging up to 250 entries internally or externally on a PC.
The Master Purge PRO2 Weld Purge Monitor is the ideal tool for many welding applications where critical weld standards are required. Used for Production of Semi-conductors, Nuclear, Aerospace, Pharmaceutical, Energy, Dairy, Brewery and Food processing where strict welding guide lines to eliminate weld-quality issues associated with atmosphere contaminated welds are required.
The PRO2 Weld Purge Monitor enables Welders and Welding Engineers on site or in the workshop to precisely monitor rest oxygen levels to the point where precision welding can take place, resulting in “perfect conditions” for consistent high-quality repeatable welds.
TECHNICAL DATA
- Part No. MPP2P
- Measuring Range 0.5 – 206,400ppm
- Dimensions 220 x 165 x 85cm
- Weight: 3.3kg

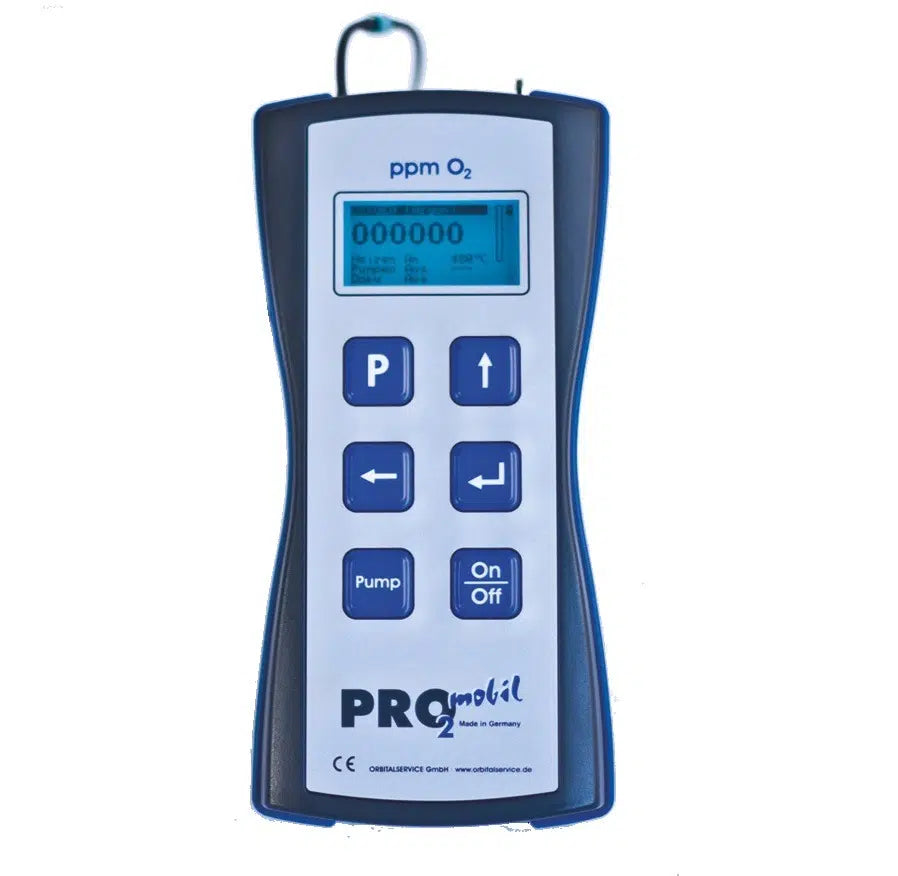

Master Purge Mobile Weld Purge Monitor – PRO2
The ultimate handheld Oxygen monitor, measuring the level of oxygen in the designated atmosphere down to 5 ppm (parts per million)!
The new Master Purge PRO2 Mobile Monitor is essential for reading oxygen levels for titanium welding.
The interface option enables the Master Purge PRO2 Mobile
To be connected (via a cable or Bluetooth dongle) to a PC & printer to record the readings. A rechargeable battery pack and multi range power plug are standard features of the Handy Purge Pro 5, and its light weight and ergonomic shape make it the ideal portable instrument for all orbital welding applications.
The unit incorporates an internal pump and is designed for measuring rest oxygen in inert gases such as argon. This unit can be used up to 4 hours before recharging is necessary.
Key Features:
- Measures oxygen levels down to 5ppm (Parts per million)
- Rechargeable batteries, standby life approx. 4hrs
- Temperature regulated zirconium cell (maintenance free)
- Graphic display screen changes color relative to process and function
- Built-in recognition for 110V –240V power sources
- Portable for remote and difficult access sites using rechargeable batteries (supplied)
- Integrated programmable sound function
- Multi language: English, French, German
- Low permeability measuring hose for accurate measurements
- Data logging of up to 250 entries – Connects via RS 232 interface or Bluetooth
Technical Data
| Part No. | MPP2P |
| Measuring Range | 5 – 999 ppm |
| Dimensions (L x W x H) | 290 mm x 130 mm x 60 mm |
| Weight | 0.8 kg |
| Supply Voltage | 7 VDC, 2850 mAh rechargeable batteries |
