The Multi Hole Imager - for marking round or elongated holes
The Multi Hole Imager is designed to layout round or elongated holes (ellipse) on flat material or pipe to match laterals at compound angles or at 90 degrees.
The strong "on/off" magnet makes positioning on a round, flat or irregular surface easy.
A levelling vial is built in the main tower to assist in levelling the tool as required.

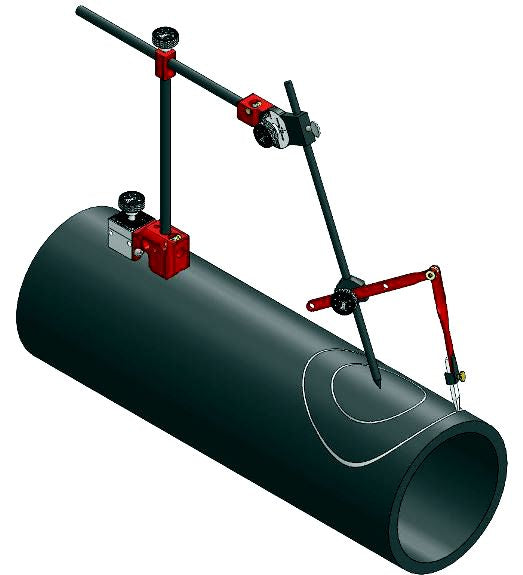

A protractor, with adjustable shaft and sliding marking arm, fits in the main arm of the Imager allowing for layout of elliptical holes in header pipe for matching compound pipe laterals coming in to the header.
Features and advantages:
The strong "on/off" magnet makes positioning on a round, flat or irregular surface easy.
A levelling vial is built in the main tower to assist in levelling the tool as required.
A protractor, with adjustable shaft and sliding marking arm, fits in the main arm of the Imager allowing for layout of elliptical holes in header pipe for matching compound pipe laterals coming in to the header.
Features and advantages:

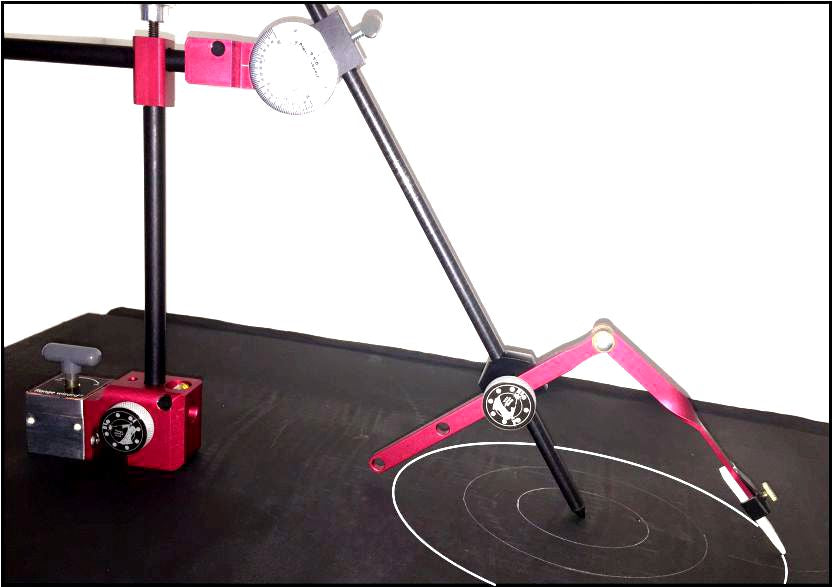

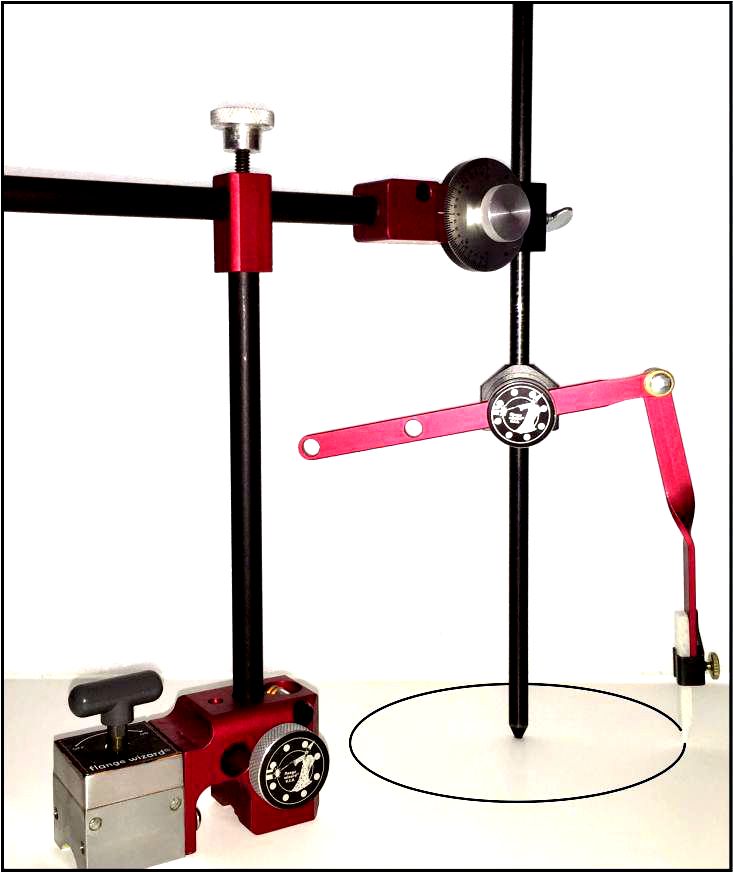

- Marks 3/4" to 20" holes in plate with vertical shaft at 90 degree

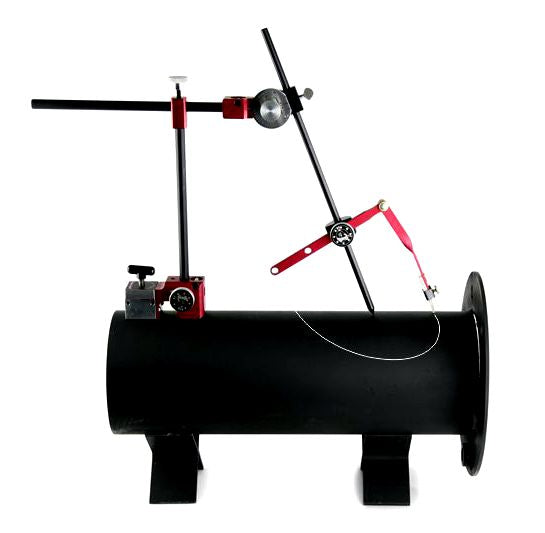

- Marks 3/4" to 18" saddle holes in pipe with a vertical shaft at 90 degree
- "ON/OFF" 150lb holding magnet

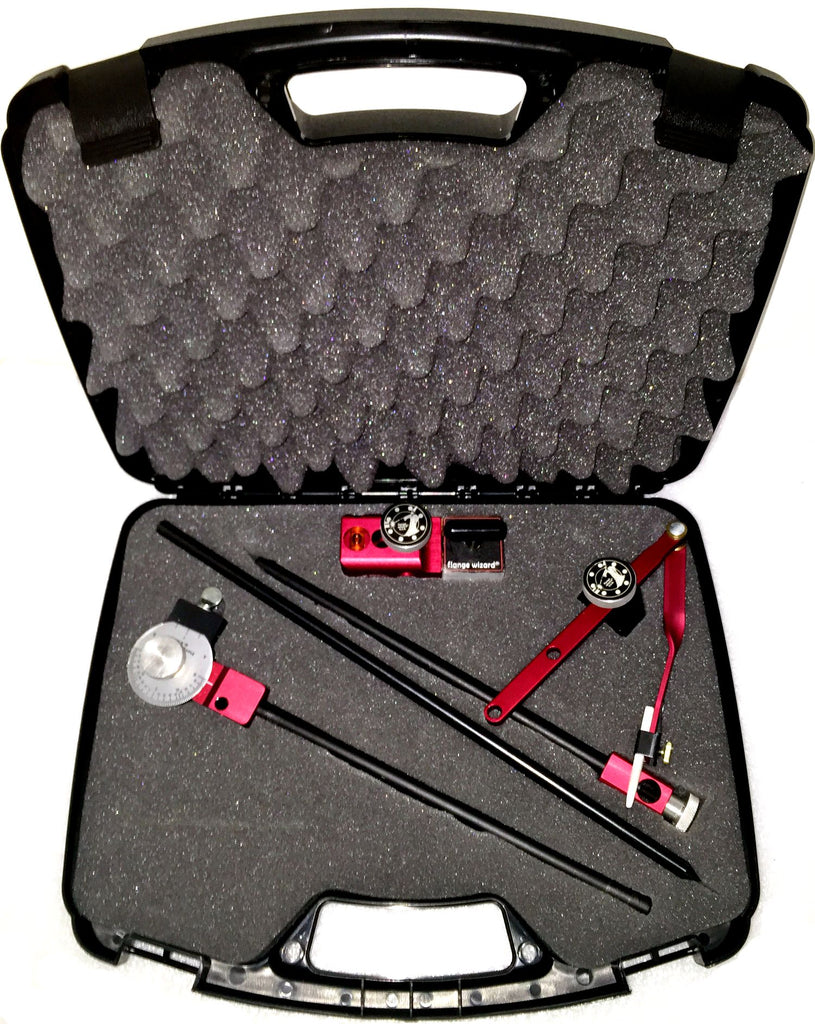

- Provided in a polypropylene lockable case for transport and storage
- Large marking arm available for bigger diameters - 26" in diameter on pipe, 40" diameter on flat
