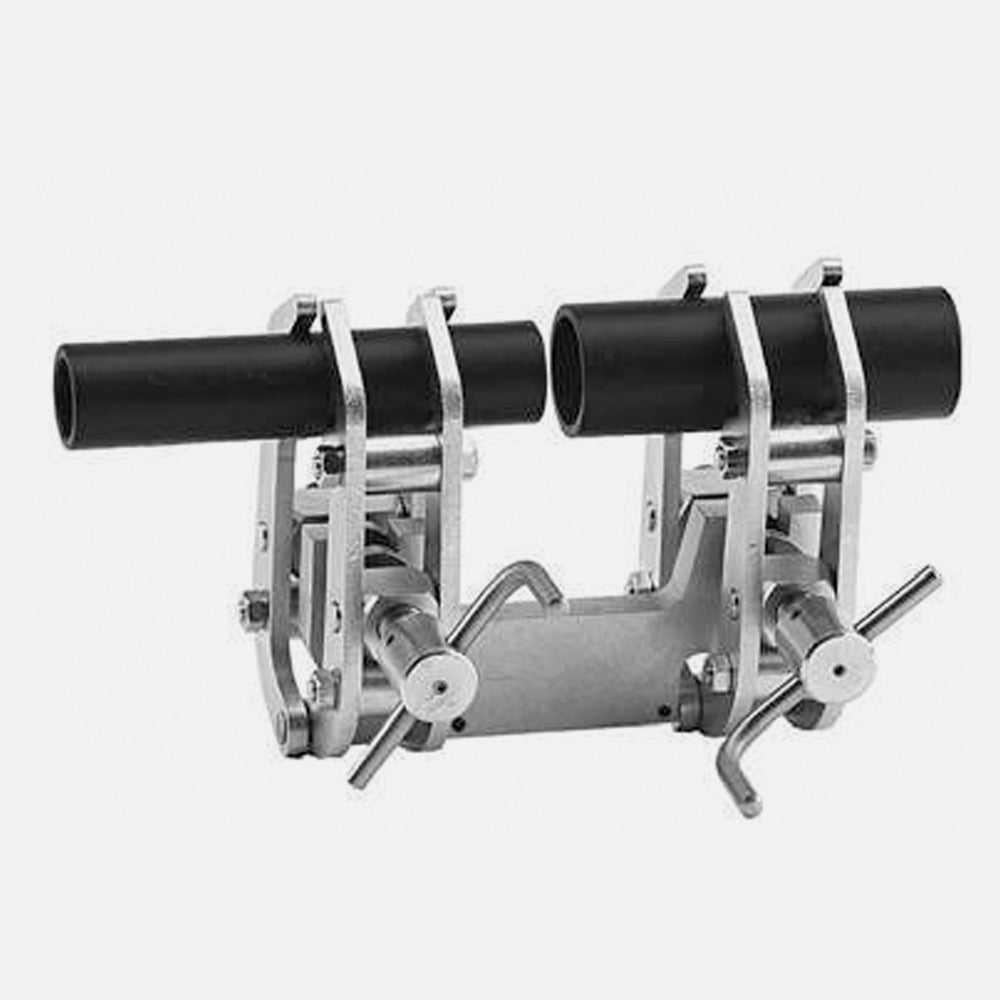

PINCER CLAMP
For quick and accurate alignment of pipes of equal or differing diameters on a common centre line. Automatic diameter compensation. All parts stay easily accessible for welding.
Part No. Clamping Range (mm) Weight KG/LBS
PC70 10-70 2.1 / 5
PC140 40-140 5.9 / 135
PC330 75-330 26 / 57.5
MINI CLAMP
For quick and accurate alignment and clamping of flanges, nozzles, etc to pipes and cylindrical tanks. Available in stainless steel.
Part No. Clamping Range (mm) Weight KG/LBS
MC19 15-19 0.20 / 0.7
MC20 16-20 0.20 / 0.7
MC25 19-25 0.25 / 0.9
MC32 24-32 0.50 / 1
MC40 31-40 0.50 / 1
MC52 38-52 1.25 / 3
MC64 51-64 1.25 / 3

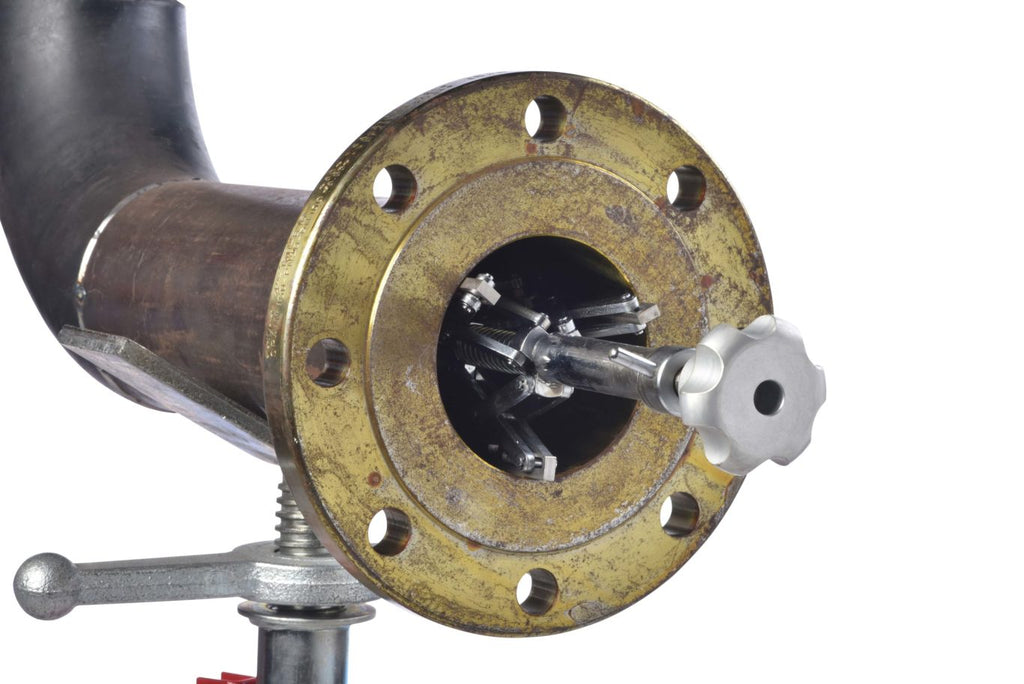

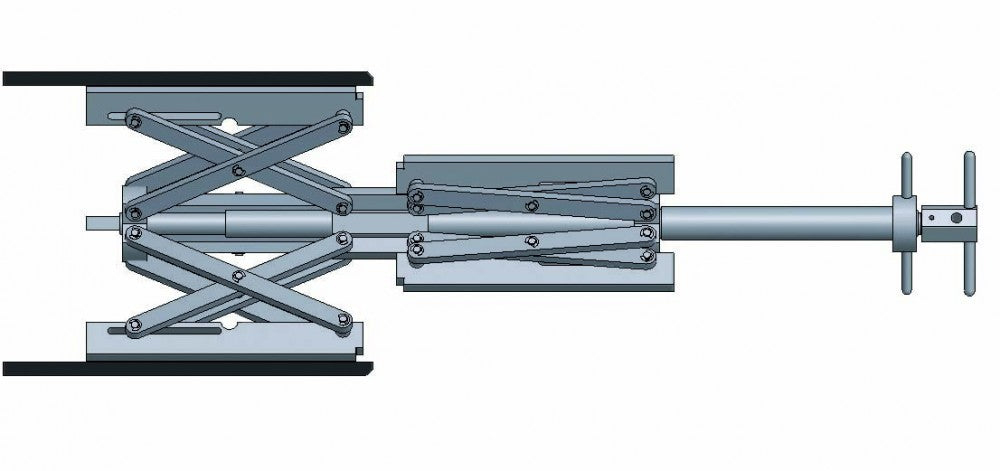

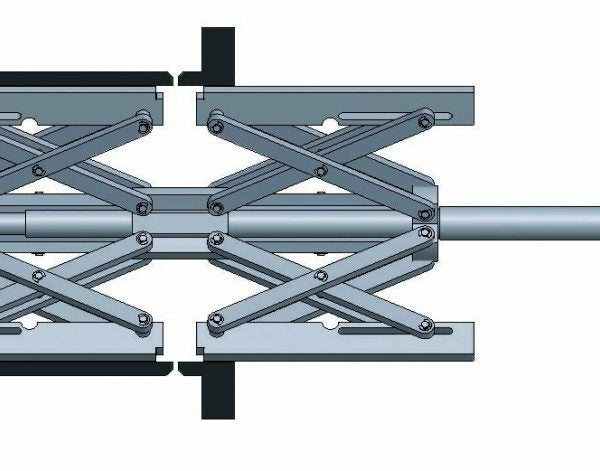

FTP CLAMP SS READY
This model has two independent expanding clamps, allowing coaxial alignment of two hollow cylindrical components of different diameters. The bottom expanding clamp is inserted and clamped in the pipe by means of the knob. Then the other part (e.g. a flange) is placed over the top expanding clamp and clamped by means of the hand-bar.
Part No. Clamping Range (mm) Weight KG/LBS
FTP140 40-140 5.9 / 135 FTP220 85-220 20 / 44.0 FTP350 75-330 26 / 57.5 FTP520 180-520 27 / 60 FTP940 400-900 39 / 86

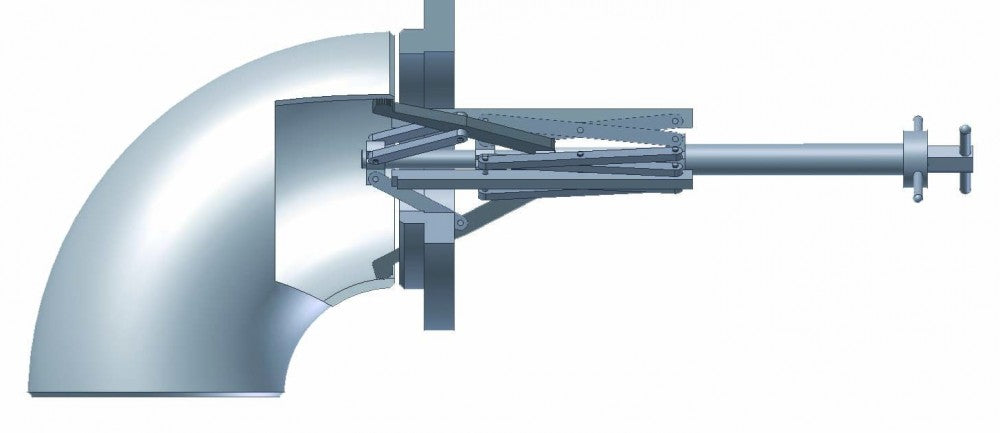

FTE CLAMP
This model with two independent clamps is used for clamping flanges of all kinds and similar parts to elbows and pipe-bends of various diameters. The lower expanding clamp has strong gripping feet which insert into the bend and are tightened by means of the knob. The top expanding clamp is tightened by means of the handbar in the flange.
Part No. Clamping Range (mm) Weight KG/LBS
FTE115 54-115 1 / 3
FTE195 89-195 3.3 / 7
FTE315 120-315 9.5 /21
FTE520 180-520 23.1 /51
