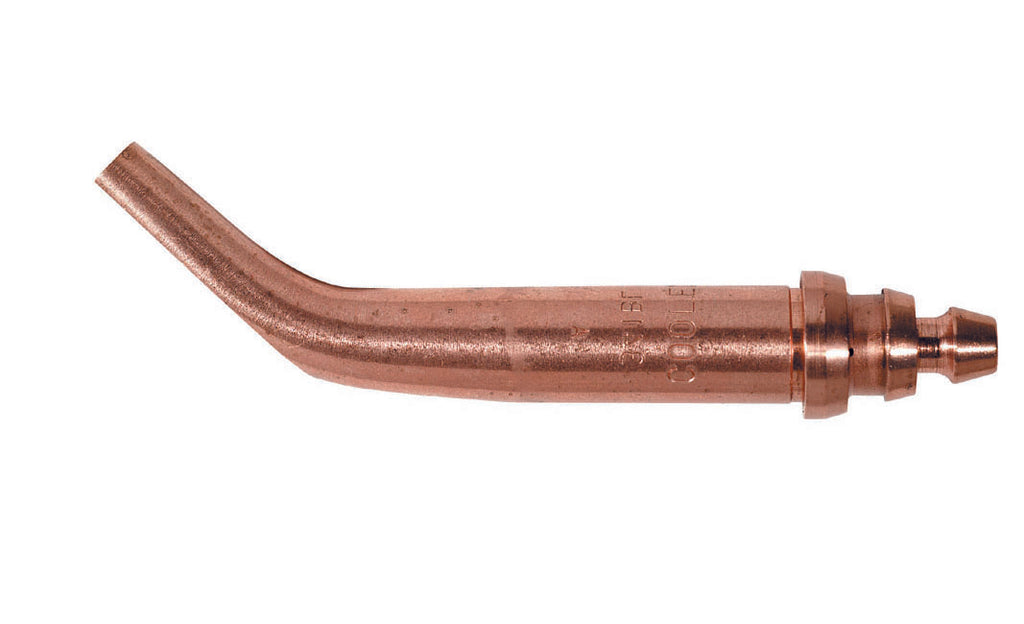

GCE A341 Coolex Bent Rivet Nozzles, bent Rivet Nozzle for Acetylene.
COOLEX A 341 is a 3-cone sealed cutting nozzle forged from a single piece of copper with a extra cooling flow duct for increased lifetime. Specially designed for rivet cutting up to 500 mm. for acetylene used in welding & cutting applications. It is designed for cutting rivets and separating seized screw connections, with different variants available for varying cutting thicknesses.
Rivet cutting nozzle
- COOLEX A 341 is a rivet cutting nozzle of the flicker flame type, forged from a single piece of copper
- The nozzle is bent for good accessibility
- Use cleaning method: KR21
Areas of application:
- Specially intended for separating rivet joints and screw joints that have rusted solid
- Cutting convex rivet heads or nuts and screws
- Separating welded joints welded in T-grooves, which are cut off level
| Art. Nr. | Pressure - Ox. bar | Pressure - fuel gas bar | Flow rate - Ox. m3/h | Flow rate f. gas m3/h |
| 6700C1083 | 3 | 0,2 - 0,5 | 2,8-3,8 | 0,5 |
| 6700C1084 | 4 | 0,2 - 0,5 | 4,6 | 0,5 |
| 0768745 | 3 - 6 | 0,2 - 0,5 | 5,5 | 0,6 |
| 6700C1085 | 4 - 7 | 0,2 - 0,5 | 6,5-7,7 | 0,7 - 0,8 |
Select item number required in drop down box
Cutting Thickness Options:
- 3 - 25 mm
- 25 - 40 mm
- 40 - 100 mm
- 100 - 200 mm
