GCE Air Propane Equipment

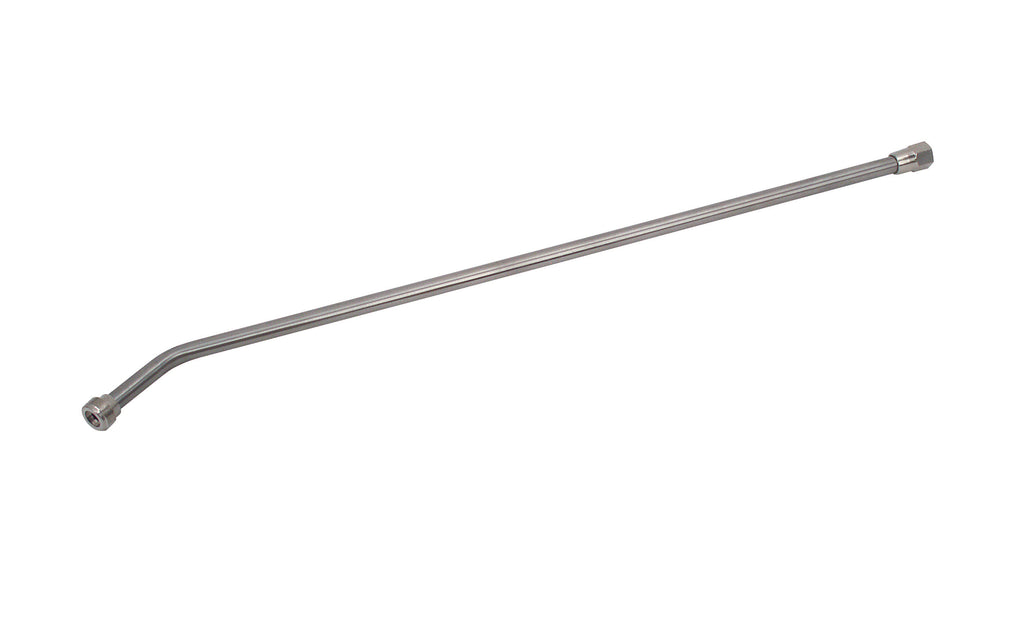

NECK TUBE UNIVERSAL-Manufactured in stainless steel.
For use-
- designed to connect UNIVERSAL heating torches to shank UNIVERSAL.
- head connection M20 × 1 MALE.
- torch connection M14 × 1 FEMALE.
Technical Data
| Art. Nr. | Length | Inlet connection | Outlet connection | Weight |
| 9381280 | 75 mm | M14 × 1 | M20 × 1 | 0,11 kg |
| 9381290 | 130 mm | M14 × 1 | M20 × 1 | 0,11 kg |
| 9381300 | 230 mm | M14 × 1 | M20 × 1 | 0,14 kg |
| 9381310 | 350 mm | M14 × 1 | M20 × 1 | 0,19 kg |
| 9381320 | 600 mm | M14 × 1 | M20 × 1 | 0,29 kg |
| 9381330 | 750 mm | M14 × 1 | - | 0,35 kg |
| 9381340 | 1000 mm | M14 × 1 | M20 × 1 | 0,44 kg |

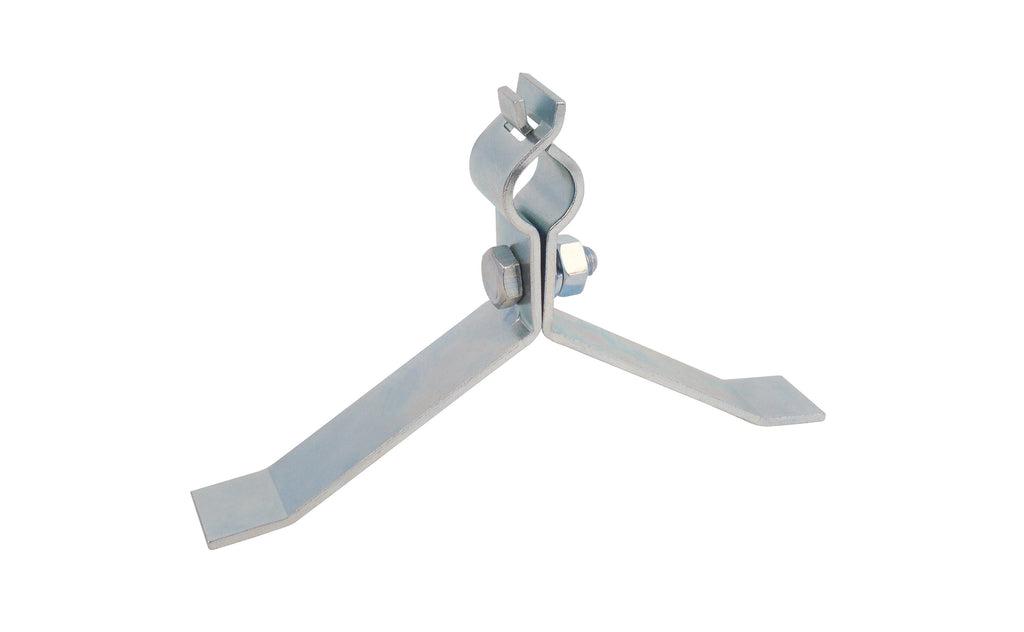

SUPPORT H UNIVERSAL-Allows hot heating torches to be rested safety on a horizontal surface. Assembled onto the neck tube of the torch.
Technical Data
| Weight: | 0,15 kg |

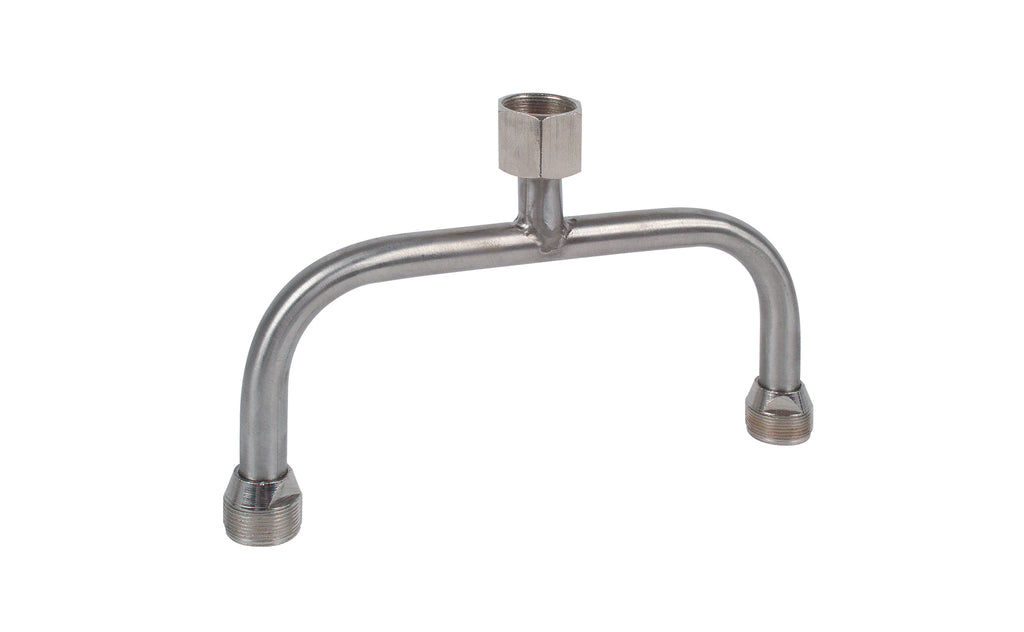

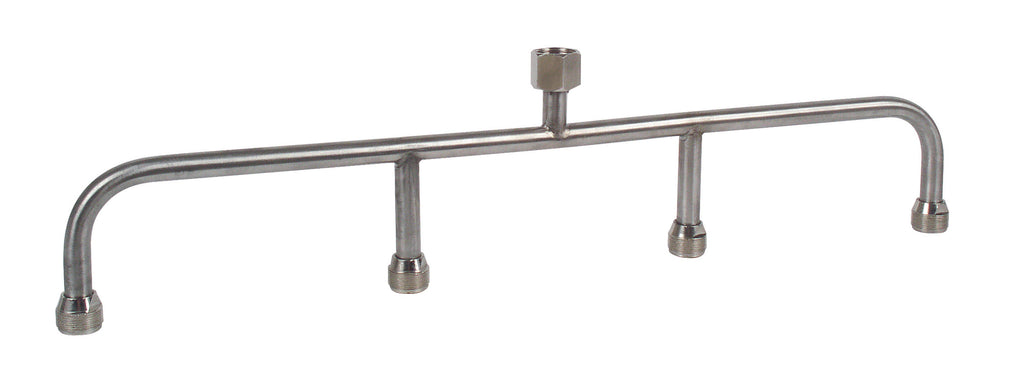

Multi-Neck Tube- 2 or 4 Outlets, designed to connect UNIVERSAL heating torches to the neck tube.
Technical Data (2 outlets)
| Art. Nr. | Connection | Width | Weight |
| 0763232 | M20 × 1 | 150 mm | 0,14 kg |
(4 outlets)
| Art. Nr. | Connection | Width | Weight |
| 0763233 | M20 × 1 | 450 mm | 0,29 kg |

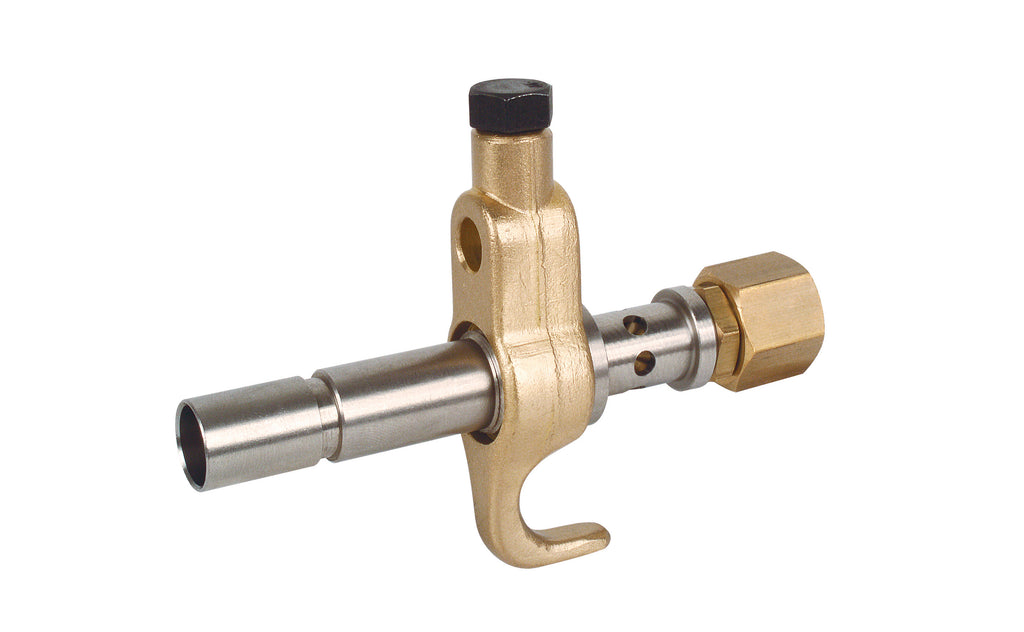

Soldering Torch Kit - UNIVERSAL-Soldering bit holder. Connection M14 × 1, for WT soldering iron UNIVERSAL.
Technical Data
| Type: | WT |
| Gas: | P, PB |
| Working pressure: | 1,5 bar |
| Consumption PB: | 120 g/h |
| Output: | 1,55 kW |
| Length: | 110 mm |
| Weight: | 0,147 kg |

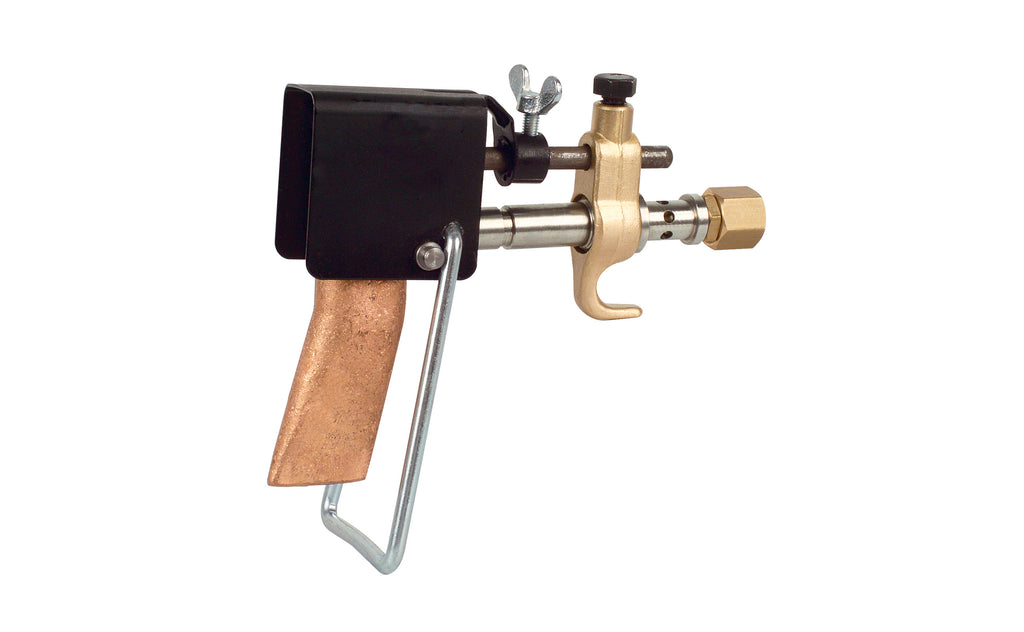

Soldering Iron Universal-for soldering jobs and roof making. The soldering iron weight is 350g.
Technical Data
| Working pressure: | 1,5 bar |
| Consumption PB: | 120 g/h |
| Output: | 1,55 kW |
| Length: | 140 mm |
| Weight: | 0,64 kg |
| Gas: | P, PB |

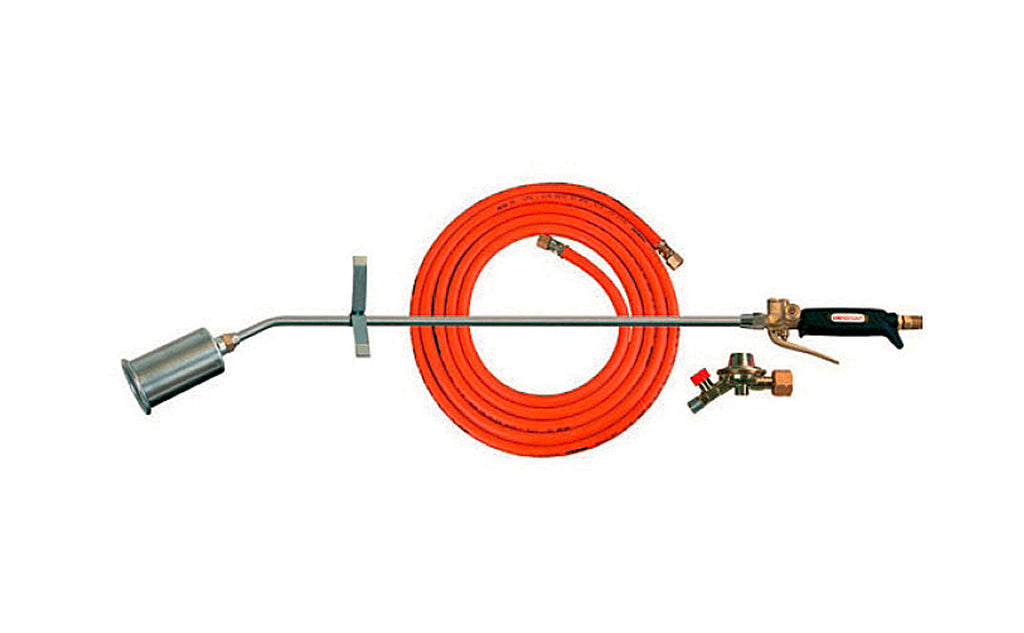

SET UNIVERSAL ROOFER-Shank with a gas saver, heating torch H60, neck tube 600 mm, PB hose fitted 5m, DN 6,3. Without regulator.
