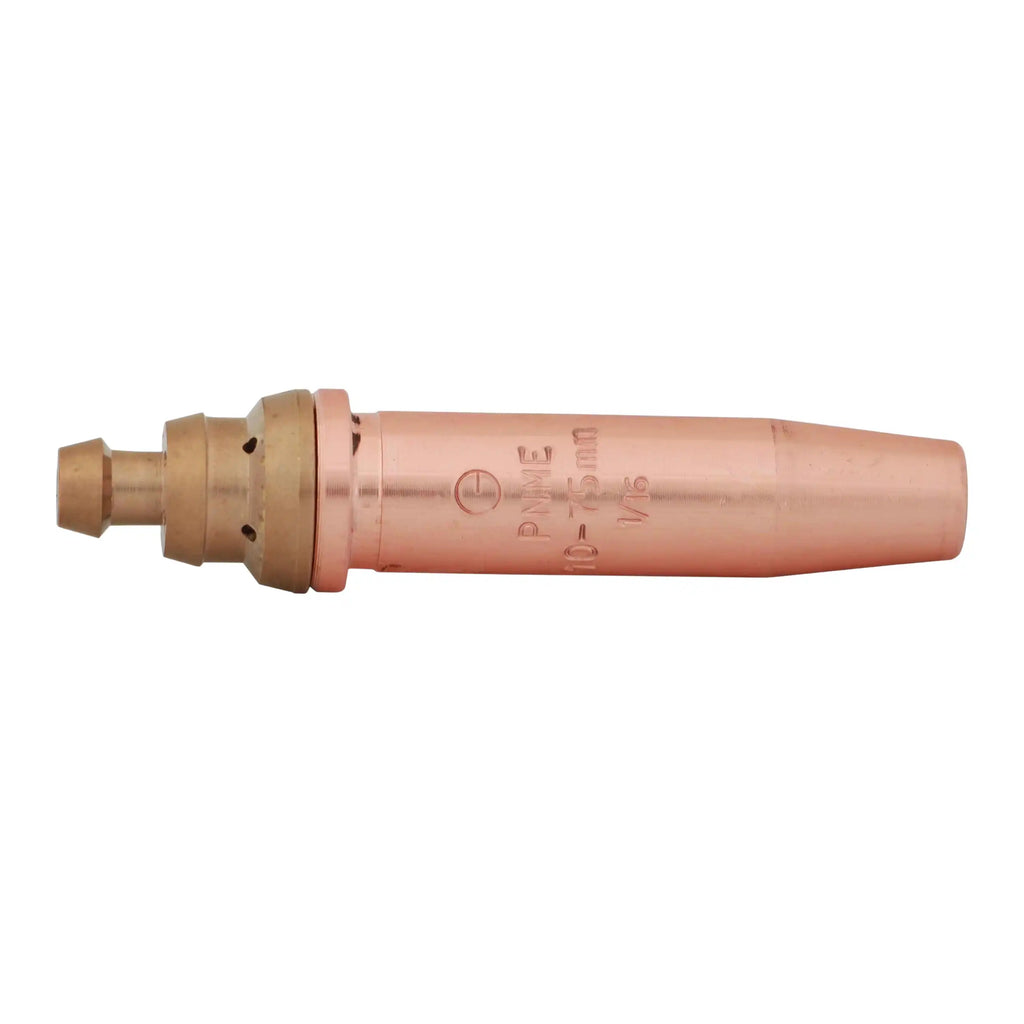

GCE PNME Coolex X511 3 Cone Sealed Cutting Nozzles

GCE PNME Mix Cutting Nozzles, Nozzle mix. Propane. Hand Cutting. Two-Piece Nozzle. Brass Inner/Copper Outer.

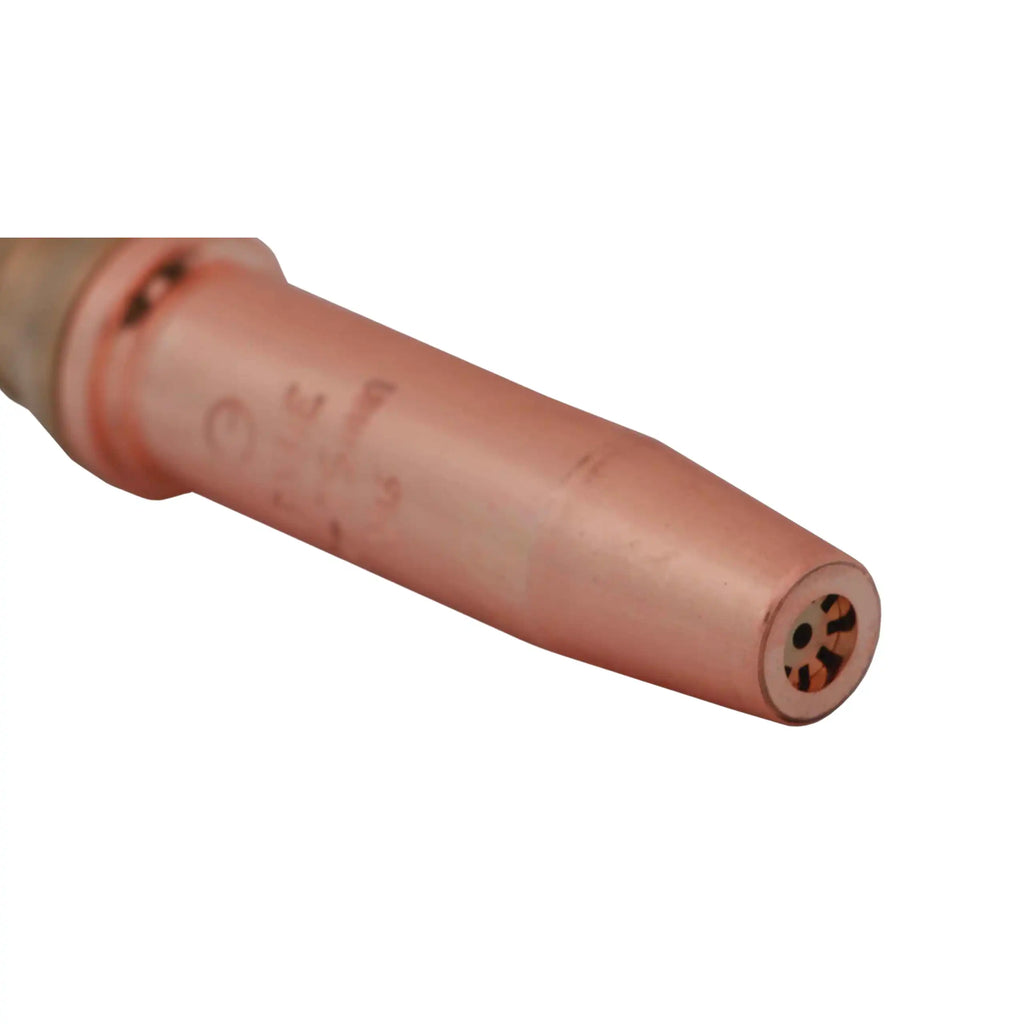

Improve your oxy-propane cutting operations with GCE PNME Mix Cutting Nozzles, engineered for superior performance, unwavering safety, and extended operational life. As an essential component for professional welding and metal fabrication, these nozzles embody GCE’s commitment to quality and innovation, ensuring precise and efficient cuts across a comprehensive range of material thicknesses. The GCE PNME Mix Cutting Nozzles are meticulously designed to optimise the oxy-propane cutting process. Utilising the advanced nozzle mix principle, these two-piece cutting nozzles ensure that the combustible gas mixing is precisely confined within the nozzle itself. This innovative design significantly enhances resistance to backfire and flashback, establishing a new standard for safety in high-demand industrial environments.

Features

• Nozzle Mix Design: Gas mixing occurs within the nozzle, providing superior resistance to backfire and flashback for enhanced operator safety.

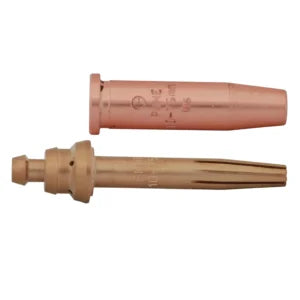

• Two-Piece Construction: Features a robust brass inner nozzle and a resilient copper outer sheath, ensuring durability and longevity.
• Optimised Gas Flow: Engineered with large internal channels to handle the higher volumes of gas necessary for efficient oxy-propane cutting.
• Precision Engineering: Designed to create controlled turbulence for thorough mixing of propane and oxygen, promoting flame stability and cutting accuracy.
• Wide Cutting Range Compatibility: Available in multiple sizes to accommodate various metal thicknesses, from thin sheets to heavy plates.
• High-Quality Materials: Manufactured from premium brass and copper for maximum wear resistance and consistent performance.

TECHNICAL DATA			Convex
			321	401
Three phase input 50/60 Hz	V	+20%	400
		-20%
Input Power @ I2 Max	kVA		13	17,8
Delayed Fuse (l eff)	A		20	25
Power Factor / cos φ			0,87/0,99	0,90/0,99
Efficiency Degree			0,87
Open circuit voltage	V		63	63
Current range	A		10 – 320	10-400
Duty cycle at (40°C)	A 100%		280	300
	A 60%		300	350
	A %		320(40%)	400(40%)
Wires	Ø mm		0,6 – 1,2	0,6 – 1,2
Standards			EN 60974-1 • EN 60974-5 • EN 60974-10
Protection Class	IP		23S
Insulation Class			H
Dimensions	mm		660
	mm		290
	mm		515
Weight	kg		41	42

Datasheet
