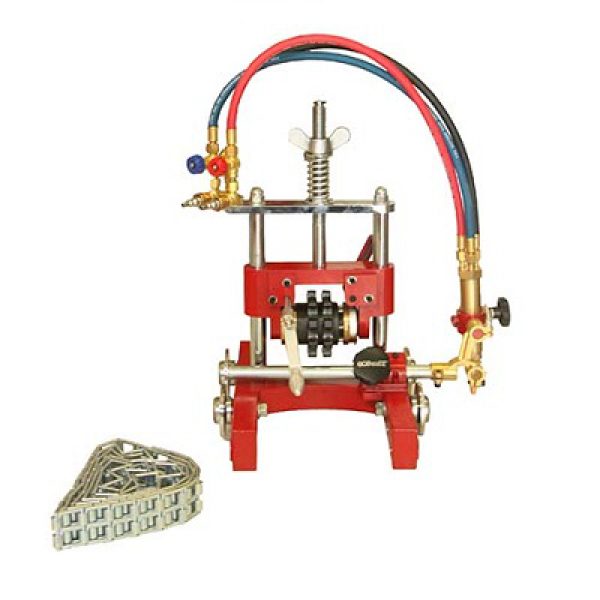

The GCE proFIT PCM is a universal, manually driven cutting machine with a lightweight design for oxy-fuel applications, ideal for cutting of pipes up to 100 mm of tube wall thickness. Basic equipment contains a chain with the length for cutting pipes with external diameter up to 400 mm. The chain is built by the interlocking links which can be easily removed or added based on particular tube diameter.
There is no electricity needed for operating the machine. Therefore it is an ideal tool that can be used in each workshop but also on-site.
Besides perpendicular cuts, the machine can be used for cutting bevels with angle adjusted on the torch holder mechanism.
Technical Data
| Cutting capacity: | up to 100 mm of tube wall thickness |
| Cutting speed: | manually driven |
| Operation: | forward and reverse manually operated |
| Oxygen inlet connection: | G1/4“, up to 8 bar, hose min. DN8 |
| Fuel gas inlet connection: | G3/8“LH, up to 1 bar, hose min. DN8 |
| Body dimensions: | (400 × 500 × 600 ) ( W x L x H in mm) |
| Weight: | 15 kg |
| Chain links: | Zn - coated, length 1300 mm, for tube diameter 1000 mm |
| Art. Nr. | Description | Nozzles to be ordered |
| 0870648 | GCE proFIT® PCM with nozzle-mixing cutting torch | |
| 3C00448 | Additional chain links, 82 detachable links, length 2,4 m | |
| F25310014 | Cutting torch nozzle mixing, G1/4, G3/8, G3/8LH | ANME, PNME |
| F25310015 | Cutting torch nozzle mixing, 9/16 UNF | ANME, PNME |
Basic Machine Package Includes:
Manually driven machine; One nozzle mix cutting torch with basic cutting nozzle, Torch holder, Torch bar, Chain tightening mechanism, Internal gas hoses, Gas manifold with shut-off valves, Basic chain 1.3 m long
