GCE proFIT SLM Straight Line Cutting Machine.

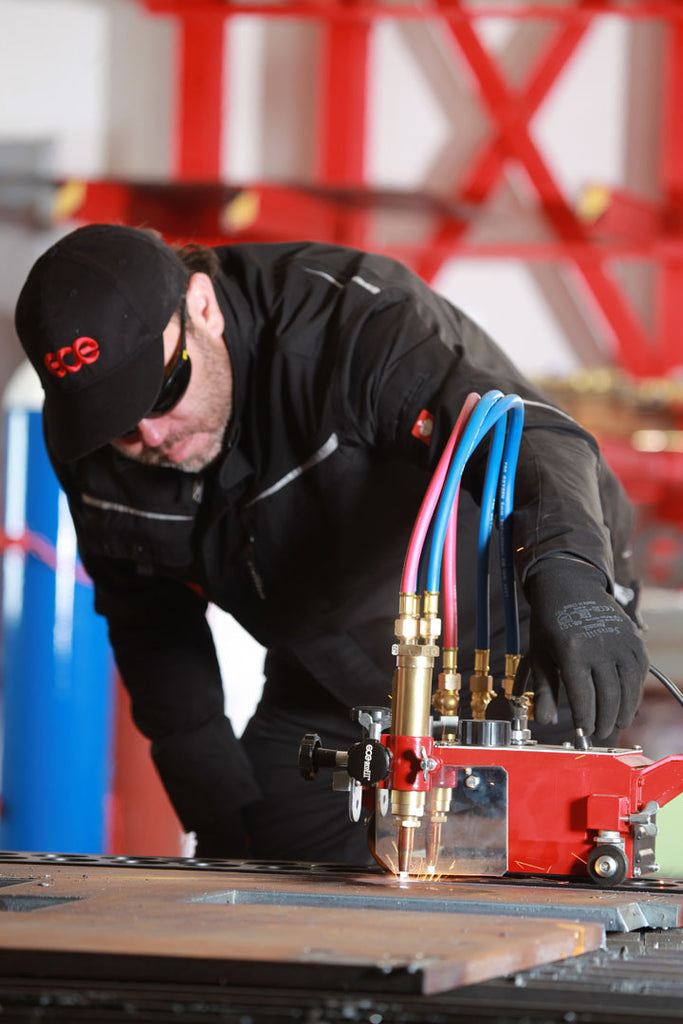

GCE proFIT® SLM is a universal cutting machine with lightweight design mainly for oxy-fuel cutting applications up to 150 mm metal sheet thickness (up to 100 mm with two cutting torches). It is a rugged but precise portable machine which has many features and benefits. For example, it can be used for straight cuts guided by the rail, manually-guided shape cuts, circular cuts and Strip Cutting when using two torches. The cutting torch can be fixed in a vertical position or angled for bevel cutting of metal sheet edges. The machine is ideal for small workshops or as an additional tool to a gantry machine. It can be used indoor but also due to its flexibility it can be used outdoors on the construction sites.(Select items to purchase from drop down box)
Features
- Lightweight portable machine for one-hand manipulation
- Easy installation and operation
- Interlocking, 1,8 m long guide rail
- All common fuel gases service
- Nozzle mixing (IC 30° cone) cutting torches or BIR+, an injector cutting torch technology
- Basic one-torch configuration can be extended for two-torch operation

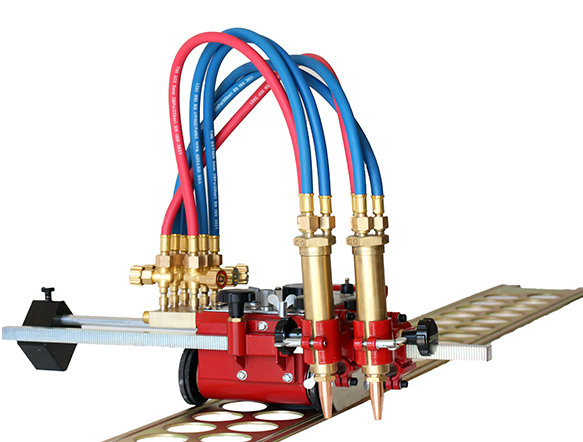

- Strip cutting and bevel cutting with two torches
- The precise drive system is ensuring constant cutting speed
- Exact adjustment of the torch position
- High speed of motor drive enables the machine to be used also for plasma cutting
Technical Data
| Cutting capacity: | up to 150 mm with one torch, up to 100 mm with two torches |
| Cutting speed: | 50 - 1600 mm/min |
| Operation: | forward and reverse with variable speed |
| Power supply: | 230V AC / 50 Hz |
| Oxygen inlet connection: | G1/4“, up to 8 bar, hose min. DN8 |
| Fuel gas inlet connection: | G3/8“LH, up to 1 bar, hose min. DN8 |
| Body dimensions: | 175 x 350 x 140 (W x L x H) |
| Weight: | 9,5 kg (with one torch configuration) |
| Rail: | Zn-coated, 1,8 m |
Variants available
| Art. Nr. | Description | Nozzles to be ordered |
| 0870613 | GCE proFIT SLM 230V with nozzle-mixing cutting torch | ANME, PNME |
| 0870614 | GCE proFIT SLM 230V without cutting torch | |
| 0870615 | GCE proFIT SLM 110V with nozzle-mixing cutting torch | ANME, PNME |

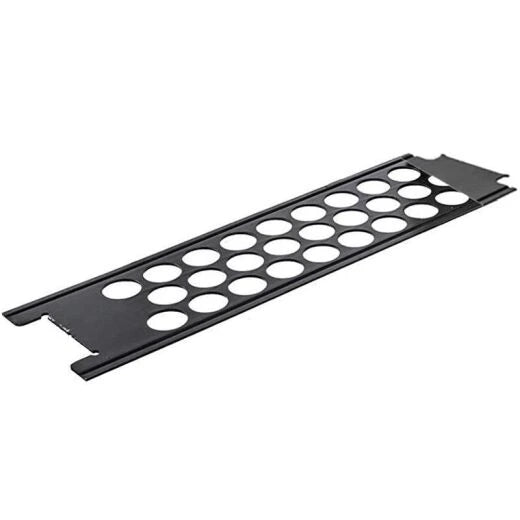

| 0870617 | Rail track 1,8m, Zinc coated | |
| 0870618 | Rail track 1,2m, Zinc coated | |

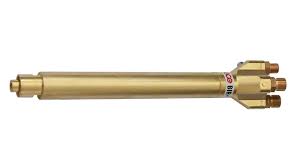

| F25310012* | Cutting torch BIR+ 110/32PMY, G1/4, G3/8, G3/8LH | PUZ |
| F25310013* | Cutting torch BIR+ 110/32A, G1/4, G3/8, G3/8LH | AC |
| F25310014* | Cutting torch nozzle mixing, G1/4, G3/8, G3/8LH | ANME, PNME |
| F25310015* | Cutting torch nozzle mixing, 9/16 UNF | ANME, PNME |
*One of these torches has to be selected and ordered for the machine item 0870614

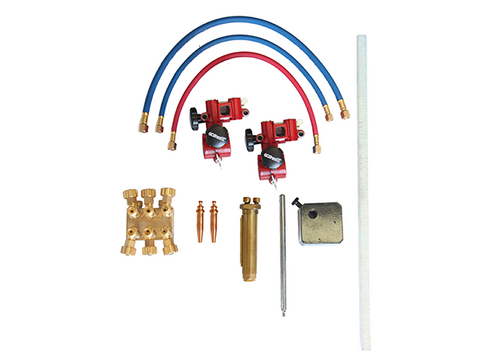

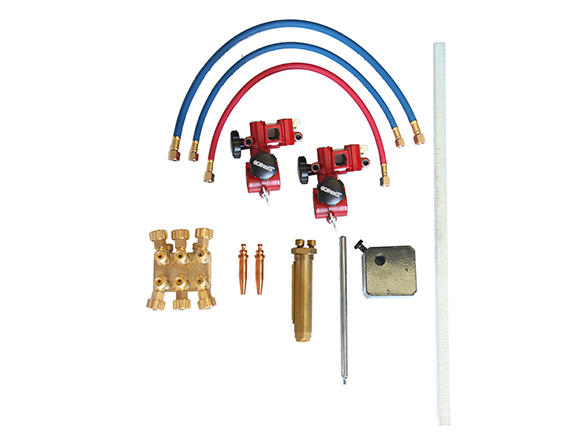

Basic Machine Packages Include-
- Equipment for one torch-cutting application
- One nozzle mix cutting torch
(The basic package of machine 0870614 does not include cutting torch and nozzle. To be selected and ordered separately.) - Torch holder, torch bar, a stainless steel heat shield
- Internal gas hoses, gas manifold with shut-off valves
- Power cable 8m with plug DIN
Guide rail and cutting nozzle are not included, to be ordered and delivered separately.
