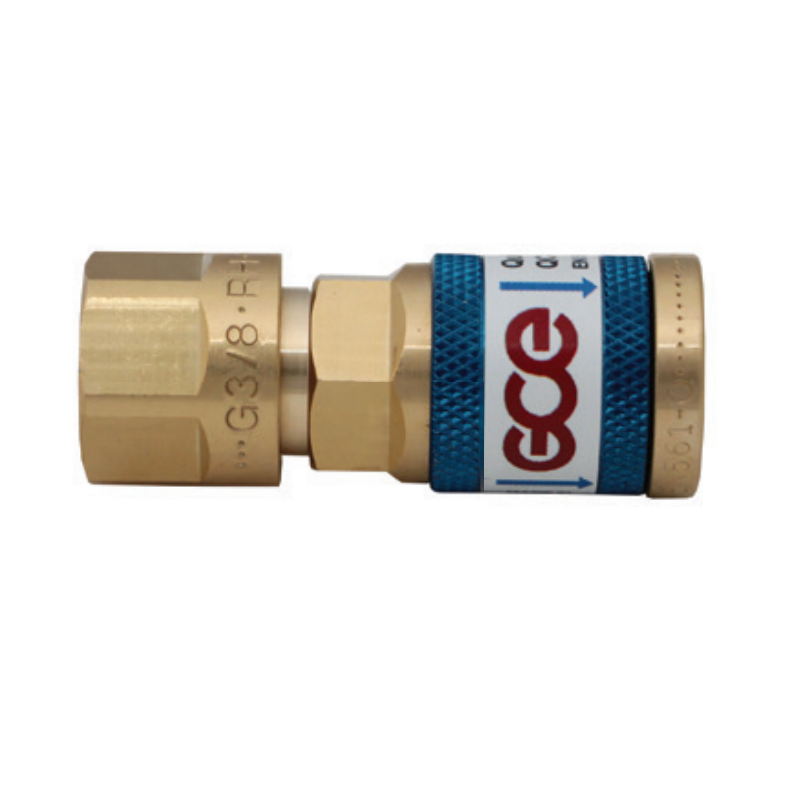

GCE Quick Couplings QC-010, QC-020, QC-030

New Generation Of Quick Couplings

GCE offer a range of Quick Couplings suitable for easy and quick connection to regulators, cutting & welding torches and gas hoses.

They are manufactured in accordance with EN561/ISO7289 standard. The couplings are made of brass and the hose pins made of stainless steel.

Features & Benefits

• Robust design - For heavy duty usage
• Colour coding - according to gas type
• Pull design - Easy connection without accidental disconnection
• Stainless Steel Coupling Pin - Longer life
• Gas cut-off - Automatically cut off gas flow when disconnected
• To Hat Seal - Gives an excellent sealing without any risks for leakage

Description

• Quick connection according to EN561 ISO 7289
• Standard hose connection according to EN 560.
• Stainless steel Coupling pin with colour coding by O-ring for better recognizing. According to ISO 7289.
• Colour coded sleeve for easy gas identification.
• Standard hose connection according to EN 560. Marking of thread dimension for easy identification.
• Hose nipples design according to EN 1256 available for most common sizes of hoses.

Combination of Connectors

The GCE range of quick couplings has several application possibilities. The type QC-010 is developed special for connection to regulators whereas the others can be used in connections between hoses and hoses to torches.

QUICK COUPLER QC-010

QUICK COUPLER QC-020

QUICK COUPLER QC-030

Datasheet
