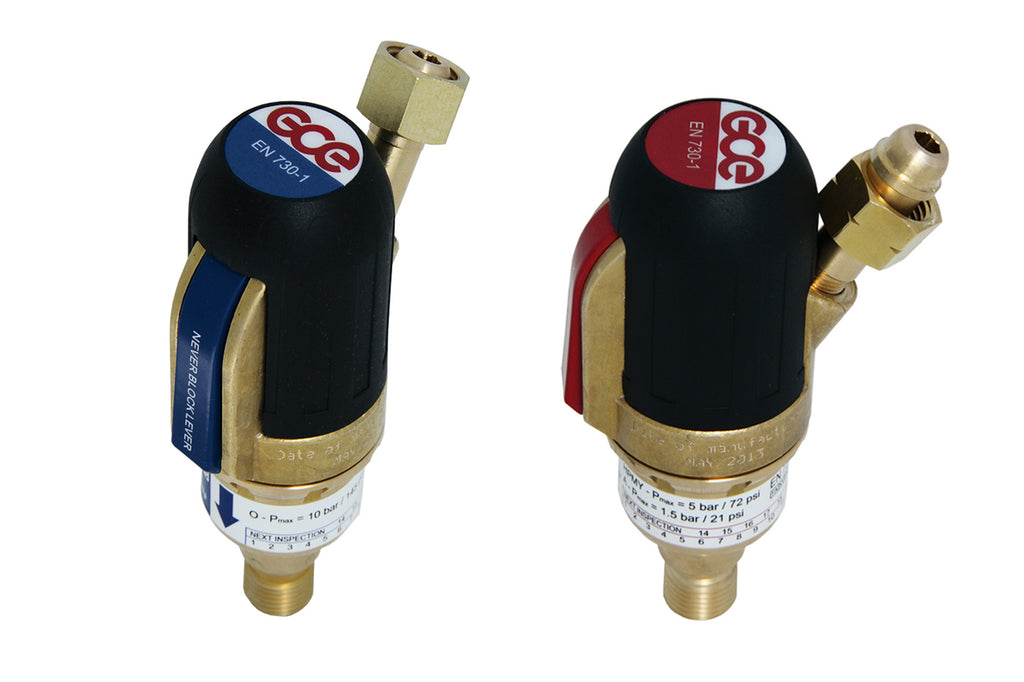

GCE Safe-Guard 5 Safety Devices for Regulators, 5 function Flashback arrestor. The latest innovation from GCE the SAFE-GUARD-5 offers the maximum level of protection required by ISO 5175-1 to prevent dangerous flashbacks from reaching the regulator and cylinder supply sources.
Features
There are so many conditions that can cause a flashback, the fitting a flashback arrestor is common sense. This unit offers the highest level of safety.
- Maximum number of safety features defined by ISO 5175-1
- High visibility trip/reset lever coupled with quick acting reset even when pressurised
- Angled inlet to minimise hose damage
- 100% production flame tested for Flashback resistance
- Inspection dates can be marked on product for easy reference

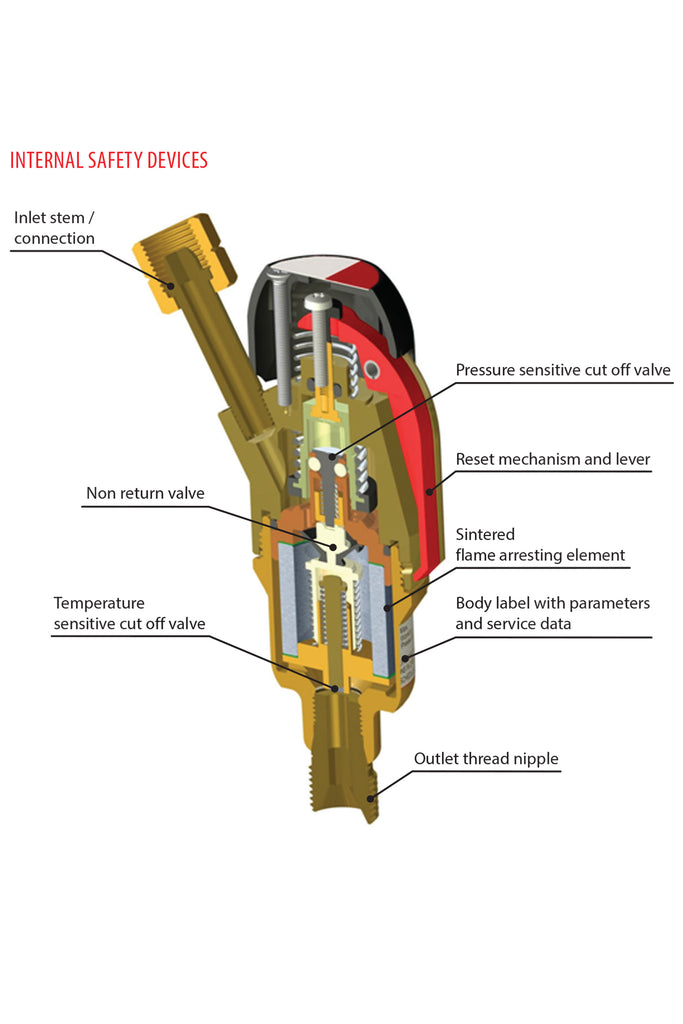

Functions
- Flame arresting element FA
- Non return valve NV
- Pressure sensitive cut off valve PV
- Temperature sensitive cut off valve TV
- Reset mechanism to clearly advise unit activation RM
Technical Data
|
Right Hand |
|
| Oxygen: | 10 bar |
| Left Hand | |
| Acetylene: | 1,5 bar |
| Hydrogen: | 5 bar |
| Propane: | 5 bar |
| Methane: | 5 bar |
| Natural Gas: | 5 bar |
| MPS: | 5 bar |
| MAPP: | 5 bar |
| Art. Nr. | Gas | Working pressure | Inlet connection | Outlet connection |
| 0764456 |
Fuel |
1,5 bar (A) 5 bar (M) 5 bar (P) |
G3/8” LH F | G3/8” LH M |
| 0764461 |
Fuel |
1,5 bar (A) 5 bar (M) 5 bar (P) |
9/16” UNF LH F | 9/16” UNF LH M |
| 0764464 |
Fuel |
1,5 bar (A) 5 bar (M) 5 bar (P) |
M16×1,5 LH F | M16×1,5 LH M |
| Art. Nr. | Gas | Working pressure | Inlet connection | Outlet connection |
| 0764457 | Oxygen | 10 bar | G3/8” F | G3/8” M |
| 0764458 | Oxygen | 10 bar | G1/4” F | G1/4” M |
| 0764462 | Oxygen | 10 bar | 9/16” UNF F | 9/16” UNF M |
| 0764463 | Oxygen | 10 bar | M16×1,5 F | M16×1,5 M |
