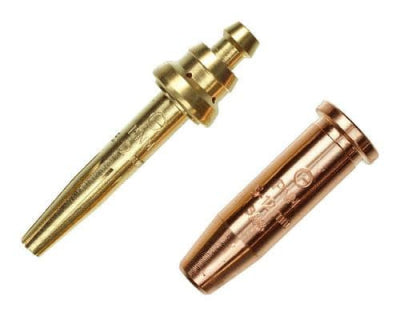

GCE X20 MK 4/5 PNM Cutting Nozzle

GCE continues introducing the new torch design across the extensive Cutting & Welding product range. Now it´s time to present the GCE X20™ MK 4/5 ORIGINAL torch program.

The GCE X20™ MK 4/5 ORIGINAL is a high pressure, sturdily constructed and well-balanced welding and cutting torch replacing the MK 4/5, together with additional improved progressive features. Each component (shank, mixer, cutting attachment) is interchangeable with other leading makes of type 3/4/5 equipment. It has a new design and well-balanced front-mounted colour-coded control valves, employing stainless valve spindles. Providing fine adjustment and leak-free conditions. The shank is common to both welding and cutting attachment the same quick positive positioning and leak-free means of attachment being used for both. The GCE X20 MK 4/5 ORIGINAL torch system and nozzles conform to the EN ISO 5172.

Features

Welding & Heating

  • Designed for welding work from 1 mm to over 25 mm thickness using type GCE X20™ MK 4/5 ORIGINAL swaged nozzles sizes 1 - 90 ft3/h litres.
  • The mixer seats on serrated toothed faces allowing the operator a selection of positive nozzle positioning through 360°.
  • Can also be used for heating, with either acetylene or propane heating nozzles, together with a heating neck.

Cutting

  • The cutting head is nozzle mixing, enabling the operator to use either acetylene or propane fuel gases by fitting the appropriate nozzle.
  • A range of ANM and PNM nozzles are available for clean efficient cutting of material thickness from sheet metal to 150 mm.
  • Its versatility allows gouging, flame cleaning etc., to be supplied to customer´s requirements.
Art. Nr. Thickness
mm (")		 Size Acetylene Oxygen
Pressure
Bar (Psi) 		Flow rate
(m3/h) 		Pressure
Bar (Psi) 		Flow rate
(m3/h)
0768880 3-6 (0-1/4“) 1/32“ 0,3 (4) 0,3 2 (30) 2.3
0768865 5-12
(1/4-1/2“)		 3/64“ 0,3 (4) 0,4 2 (30) 3.4
0768879 10-75 (1/2-3“) 1/16“ 0,3 (4) 0,45 3 (40) 4.7
0768878 70-100 (3-4“) 5/64“ 0,5 (7) 0,6 3,5 (50) 10

The GCE X20 Mk 4/5 torch is a versatile, high-pressure system for medium-duty applications, conforming to EN ISO 5172 standards. The cutting attachment's nozzle-mixing design allows for use with either acetylene or propane simply by fitting the appropriate nozzle type (ANM or PNM)
