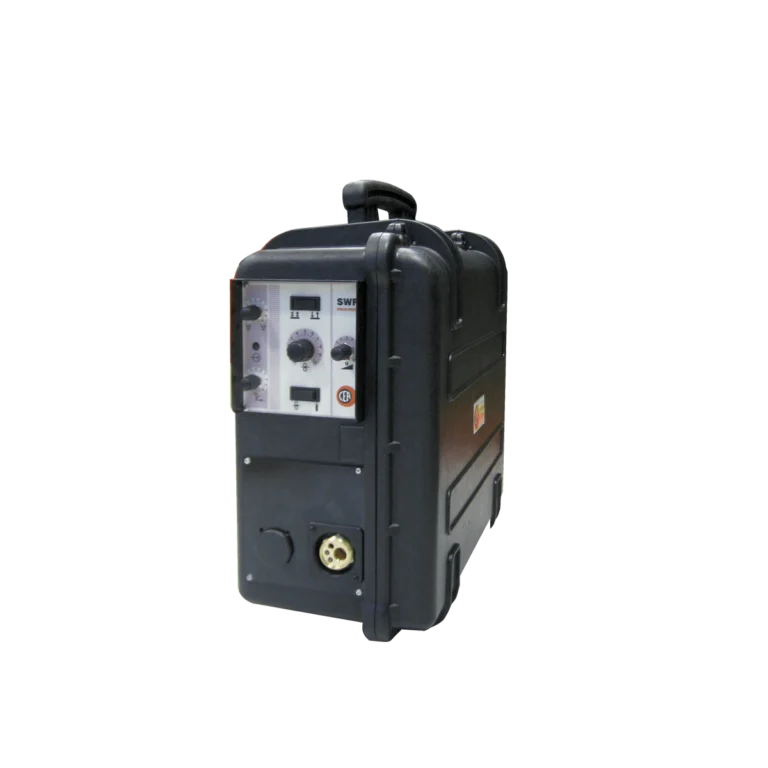

GenSet Closed Wire Feed Unit (4 Roll to suit GenSet models MPM 8/300, MPM 9/310, MPM 15/400, MPM16/450)
Enhance your welding experience and boost on-site confidence with GenSet accessories: professional, practical and user-friendly, designed to improve welding efficiency and comfort.
Meticulously crafted to ensure superior performance and workplace safety.
STRONG PLASTIC MIG WIRE FEEDER-ENGINEERED FOR HEAVY DUTY APPLICATION
SWF shows main selection and control keys as given in the main power source. The 2 independent displays provide the possibility of visualizing and monitoring 2 different parameters instantly and at the same time. It’s the ideal solution for working in shipyards and metal erection industries.
Features
- Hard case strong protection
- The digital control of all parameters, duly protected by a cover, is located directly on the YARD 4 W.
- Professional wire feeding mechanism with 4 rolls of large diameter for a precise and constant wire driving.
- Graduated knob to achieve the most correct value of the wire pressure, which remains unchanged also after any arm opening and closing.
- Double groove rolls replaceable without any tool.
- Lodging for wire spools up to 200 mm diameter maximum.
| Technical Data | SWF | |
| Single phase input 50/60 Hz | V | 48 |
| Motor power | W | 100 |
| Rolls | No. | 4 |
| Feeding speed | m/min | 0,5 / 20 |
| Solid wire (steel) | Ø mm | 0,6 / 2,4 |
| Spool | Ø mm
Weight |
300
15 MAX |
| Dimensions (LxWxH) | mm | 540 x 235 x 485 |
| Weight | kg | 14 |
