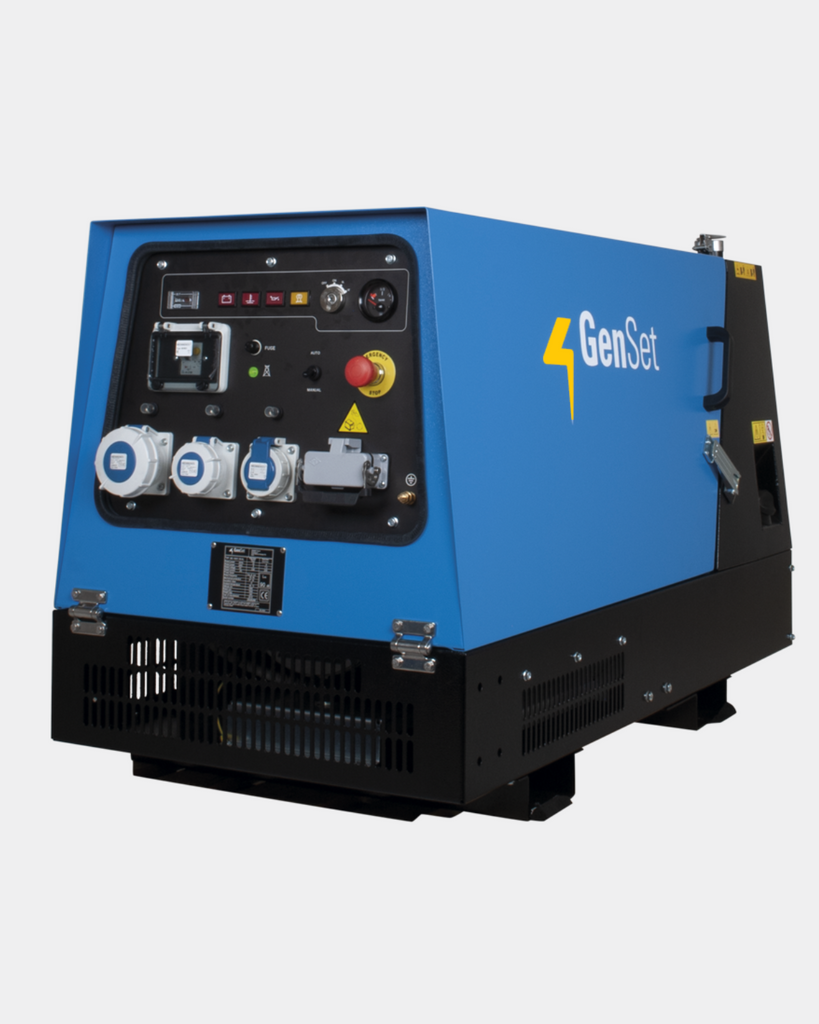

GenSet MG10001 SS-KL Power Generator 10kVA 230V/110V 1500rpm Super Silenced Kubota D1105 diesel engine.
GenSet super silenced Kubota engine1500rpm, compact and resistant it is designed for automatic starting via a convenient connector located on the instrument panel.
Equipped with central lifting hook and forklift base for easy handling.
GENSET MG 10001 SS-KL Single-phase generating set with Kubota D1105 StageV engine powered by diesel, capable of delivering a maximum power of 10KVA, the generator set is compact and easy to use, equipped with enclosure that lowers noise emissions and makes it super-silenced. This a single-phase 10KVA diesel generator set with electric start. This generator is also available in a version with an automatic panel and remote control.
Thanks to its compact size and very low weight, the GENSET MG 10001 SS-KL is a lightweight generator that is easy to transport & also has a low fuel consumption: only 2 Lt/h at 75% load.
The GENSET MG 10001 SS-KL generator set, thanks to the high quality and efficiency of its components, is ideal for various types of work: from small hobby work to large construction sites.

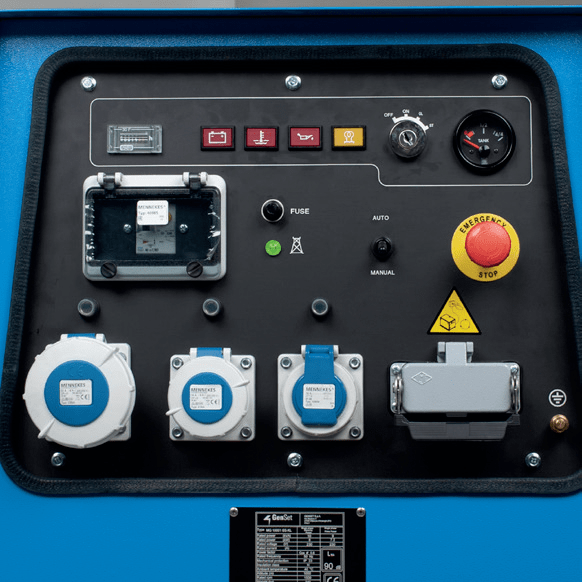

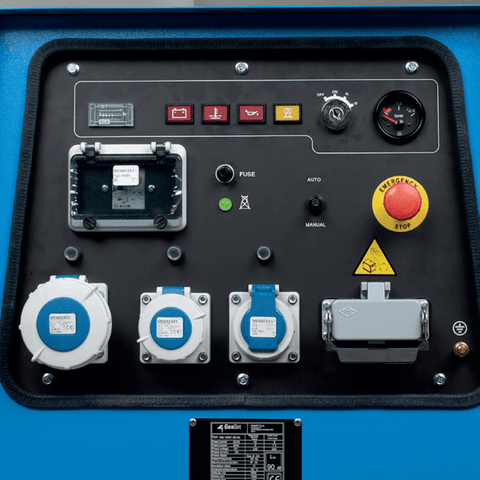

Features
• Battery 12 V
• 1 single-phase socket CEE 230V - 32A
• 1 single-phase socket CEE 230V - 16A
• 1 single-phase socket SCHUKO 230V - 16A
• Thermal protection
• Differential switch
• Emergency stop button
• Fuel level indicator
• Hour meter
• Bulb presence voltage 230V

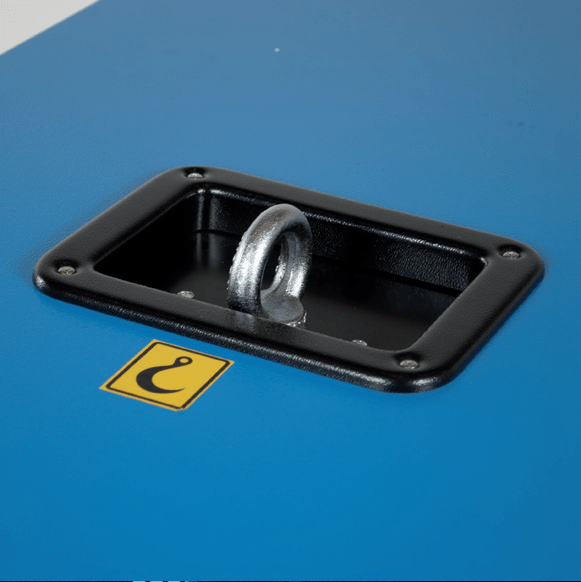

• Central lifting hook
• Arrangement for operation in AMF-ATS or Remote Control
• Automatic engine stop device with warning lights for:
- battery charge failure
- high water temperature
- low oil pressure
Technical Data
Phase Type: SinglePhase
Maximum SinglePhase Power: 10 KVA / 8 KW
Continuous SinglePhase Power: 9 KVA / 7.2 KW
VAC Voltage: 230 V
Frequency (Hz): 50
Starting Frame: Electric
Motor: Kubota D1105
Emission Standard: Stage V
RPM: 1500
Power supply: Diesel
Fuel tank capacity: 30 l
Consumption @ 75 % load: 2 l/h
Autonomy @ 75 % load: 15 h
Sound pressure: 90 dB(A)
Length: 1360 mm
Width: 675 mm
Height: 860 mm
Net weight: 330 kg
