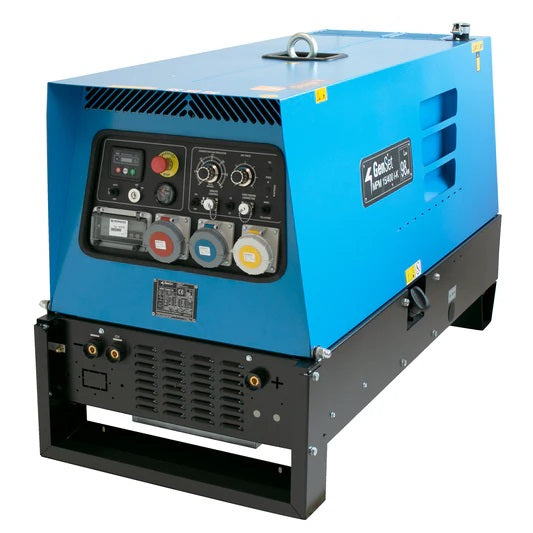

GenSet MPM 15/400 I-K Diesel Welder Generator GEN-400DK
The Genset 400 DK diesel welder generator is an Italian made machine offering 400 amps welding output, as well as 110, 230 and 400V power too. A good solution for vehicle mounted welding plant for off grid power and welding. Couple this with the ability to use a MIG wire feed unit thanks to the constant current, constant voltage welding output, it is an ideal mobile welding set. Further features include engine auto idle, a remote control socket and an arc force control switch.
A Kubota diesel engine powers this capable Genset, allowing welding of up to 6mm electrodes. Its many features and quality build enable this machine to be used for the most industrial of applications. Equipped with Kubota 3000 RPM engine and on board control panel, it’s fitted for remote control operation.
Asyncronous alternator for a better welding current quality, clean and distorsion free wave form.
Just like all the GenSet engine driven welder it is designed to be used as both a generator and welder simultaneously, its simple and smart design allows an easy handling.
Features
- Auto engine protection shutdown system with warning lights for: battery charger failure, low fuel level, low oil pressure and high water temperature
- Arc Force Control switch
- Remote control socket
- Automatic idle device when no load is connected
- 1 x 32A 400V Three phase EEC socket (15kVA – Standby)
- 1 x 32A 230V Single phase EEC socket (5kVA)
- 1 x 32A 110V Single phase EEC socket (2.4kVA)
- Earth leakage circuit breaker
- Power output protection
- Fuel level gauge
- Hourmeter
- Voltmeter
- Emergency stop button
- Engine oil drain pipe
- Central lifting eye
DC Welding
| Amps range | 30 – 400A |
| Duty cycle @ 35% | 370A – 35V |
| Duty cycle @ 60% | 350A – 34V |
| Open Circuit Voltage (OCV) | 70V |
| Max Welding Rod | 6mm |
Diesel Engine
| Type | Kubota D1105-E – 3 Cylinder – 1123cm³ |
| Max Power | 26.4HP (18.1kW/m) |
| Cooling System | Water |
| Fuel Tank Capacity | 38 Litres |
| Fuel Consumption @ 75% | 4.9 Litres/Hour |
1590 X 730 X 920mm (Length x Width x Height)
Dry Weight 450KG
2 Year Warranty
Enjoy peace of mind with the GenSet MPM 15/400 I-K1U Static Diesel Welder Generator, backed by a robust two-year warranty, ensuring reliability and durability for your welding needs.
