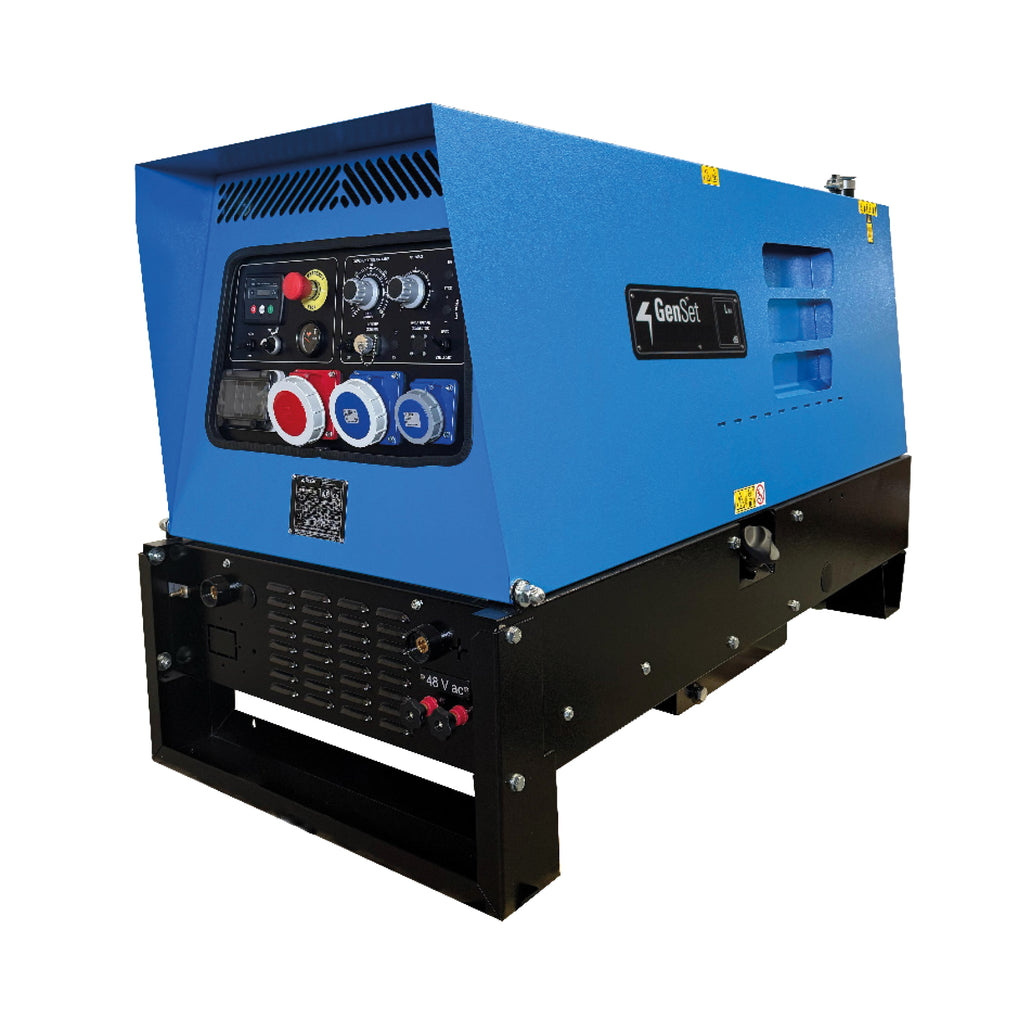

GenSet MPM 16/450 I-Y Diesel Engine Driven Welder Generator

GenSet MPM 16/450 I-Y Diesel Engine Driven Welder Generator

Compact and resistant engine driven welder suitable for frequent handling. Thanks to its design, it allows an easy maintenance.
Equipped with a Yanmar 3000 rpm engine and on-board control logic, it is suitable for remote control operation.
Asynchronous alternator for better welding current quality, clean and distortion-free waveform.
Like all GenSet engine driven welders, it is designed for contemporary use with generation, its simple and smart design allows an guarantees a practical and user-friendly experience.

• Water cooled diesel engine generator set designed for welding, whereas it can be used as a normal generator with standard outputs 400V/50 Hz (3~), 230V/50 Hz (1~). Optionally, a 48V/110V output is also available.
• In addition to Rutile, Basic and Cellulosic coated electrode welding, Carbon Cutting, TIG (Lift TIG) and MIG/MAG welding with optional wire feeding unit are also possible.
• Welding current can be adjusted through the potentiometer on the front panel and also with the wired remote control.
• Current, voltage, fuel level and operating time indicators are on the front panel.
• No loss of performance with long welding cables.
• Especially designed for outdoor use, protection class is IP23.
• Ignites with a 12V internal battery and switches to idle position automatically when there is no load.
• Warnings are; low fuel level, low oil pressure, battery charge failure and protections are; against current leakage and overheating.
• Standard accessories come with the machine.
• Trailer is Optional.
