GenSet MPM 5/200 I-EL/H Petrol Welder Generator 200A

GenSet MPM 5/200 I-EL/H Petrol Welder Generator 200A

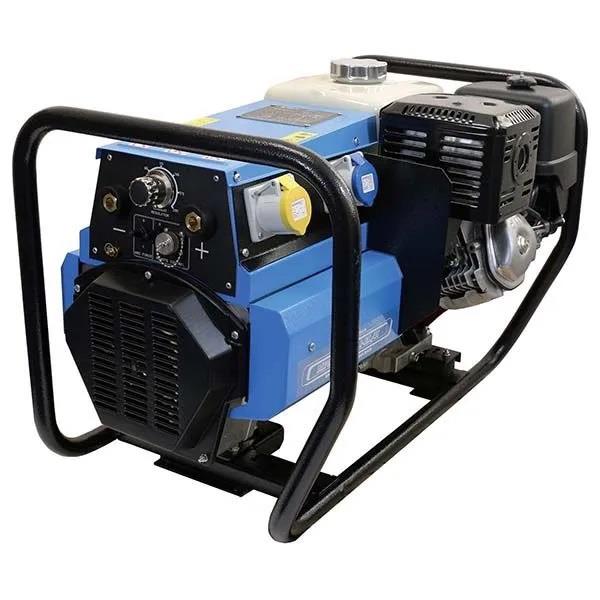

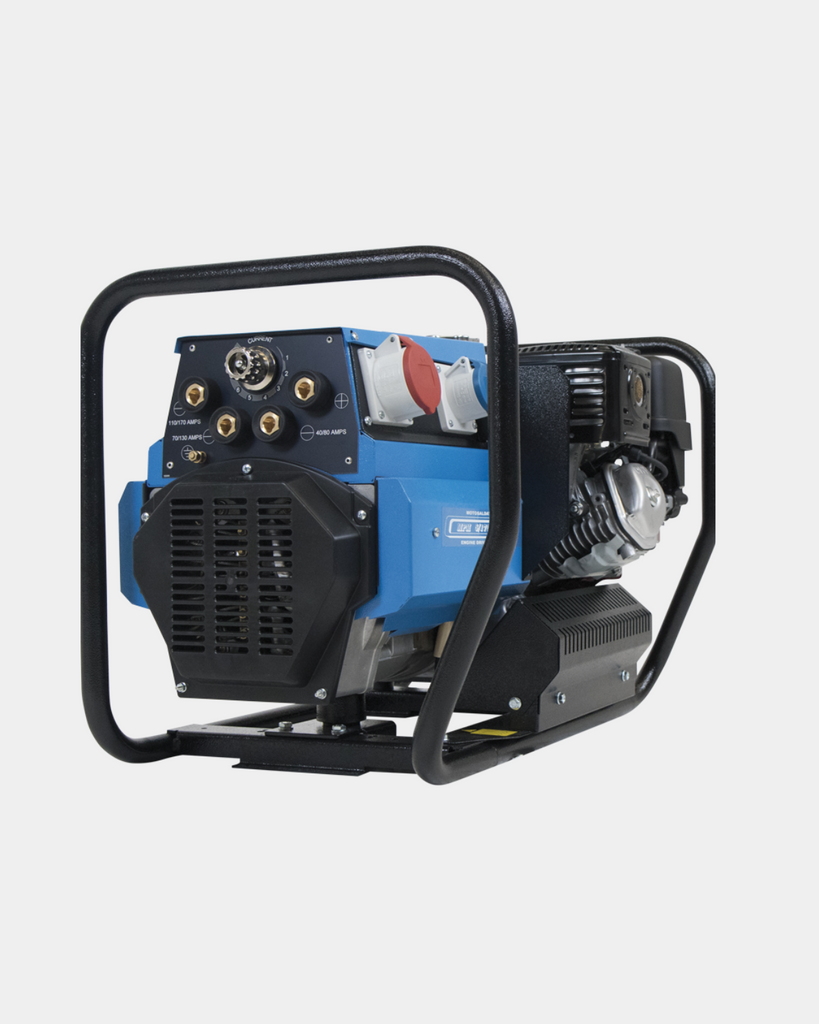

The Genset MPM 5/200 petrol welder generator is an Italian made petrol engine driven welder generator.  A stepless welding current adjustment from 30A to 200A allows the user to run up to 4mm welding rods (including cellulosic).  The generator side of this Genset offers both a 110V socket and a 230V socket, perfect for on site work, running angle grinders, lighting etc.

Portable, compact, lightweight and easily transportable engine driven welder, is equipped with Honda 3000 RPM engine and is fitted for remote control operation.

An asyncronous alternator provides a better welding current quality, with a clean and distorsion free wave form.
Just like all the GenSet engine driven welders it is designed to be used as both a generator and welder simultaneously, its simple and smart design allows easy handling too.

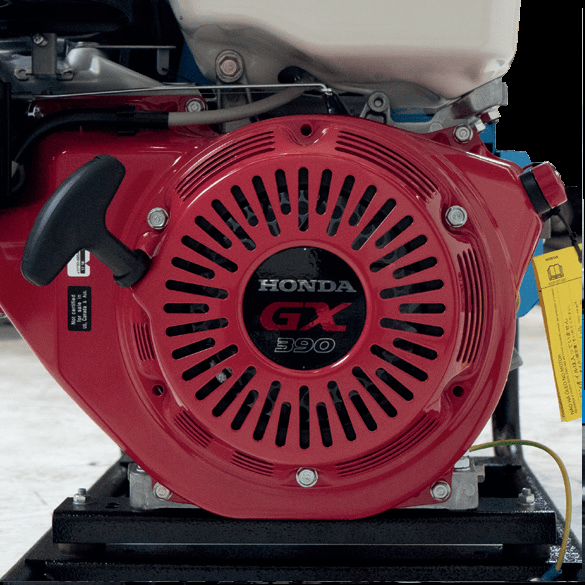

Powered by a stage 5 compliant Honda GX390 engine, you can be rest assured that the machine is built to last and will stand up to Industrial use.

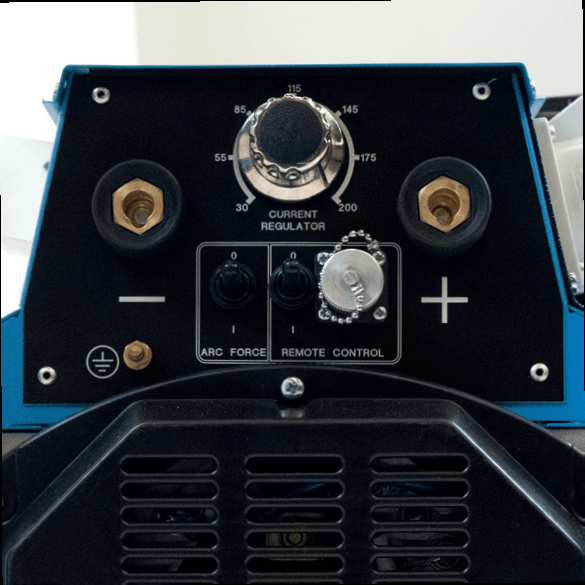

Further features of the Genset MPM 5/200 is an electric start for easy starting, an arc force control switch and a voltmeter.  A socket on the front of the machine accepts the connection of a remote control, for amperage control without having to move backwards and forwards to the machine.

Features

• Welding with cellulosic electrode
• Stepless current adjustment
• Remote control socket
• Arc Force Control switch
• Low oil level cut out device
• Earth leakage circuit breaker
• Power output protection
• 1 x 16A / 230V single phase EEC socket (2kVA)
• 1 x 16A / 110V single phase EEC socket (3.6kVA)
• Voltmeter

DC Welding

Petrol Engine

Measurement:   720mm x 480mm x 515mm (L x W x H)

Dry Weight:       96KG
