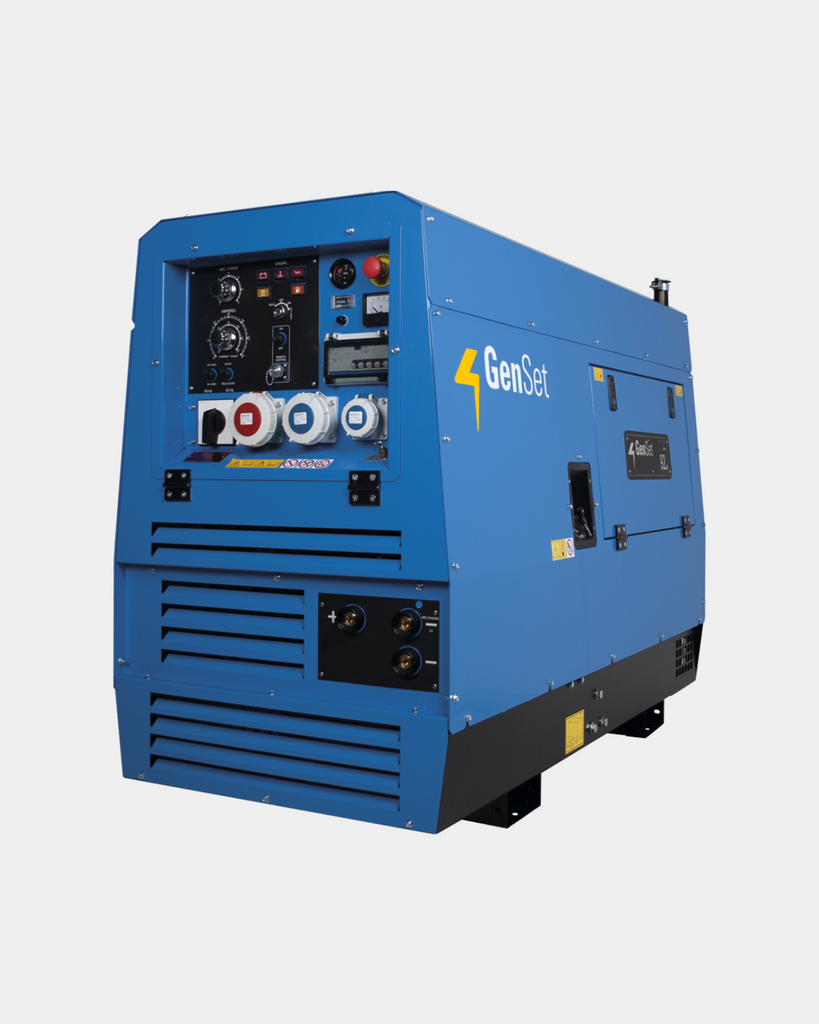

GenSet MPM 500 Y Diesel Engine Driven Welder Generator 500A
Compact and resistant engine driven welder suitable for frequent handling. Equipped with Yanmar 1500/1800 RPM engine, it’s fitted for remote control operation. Carbon Arc Gouging as standard. Asyncronous alternator for a better welding current quality, clean and distorsion free wave form. Perfect to power also even more sophisticated equipment such as Inverters and Battery Chargers.
Just like all the GenSet engine driven welder it is designed to be used as both a generator and welder simultaneously, its simple and smart design allows an easy handling. It can be used as a generator in 50/60 Hz via a convenient selector on the instrument panel.
This resistant engine driven welder is suitable for frequent handling, it is equipped with Yanmar or Perkins 1500/1800 engine and on board control panel. It’s asynchronous alternator provides better welding quality and clean, distortion free wave form. This welder generator is practical and easy to use as it is designed to be used as both a generator and welder simultaneously. It can be used as a generator in 50/60 Hz via a convenient selector on the instrument panel. It has one 32A 230V single-phase EEC, 32A 110V single-phase EEC and one 16A 110V single-phase EEC.
Features:
– Welding processes: SMAW (stick) / TIG
– DAS, auto engine protection shutdown system with warning lights in the event of:
o Battery charger failure
o Low fuel level
o Low oil pressure
o High coolant temperature
– 1 x 32A 230V single-phase EEC
– 1 x 32A 110V single-phase EEC
– 1 x 16A 110V single-phase EEC
– Power output protection 12V battery

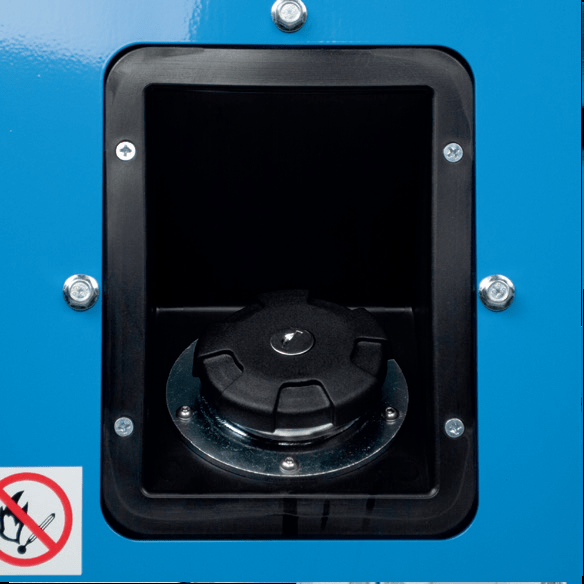

– Fuel level gauge
– Single-phase voltmeter
– Engine hourmeter
– 50/60Hz selector
– Emergency STOP button
– Remote control socket

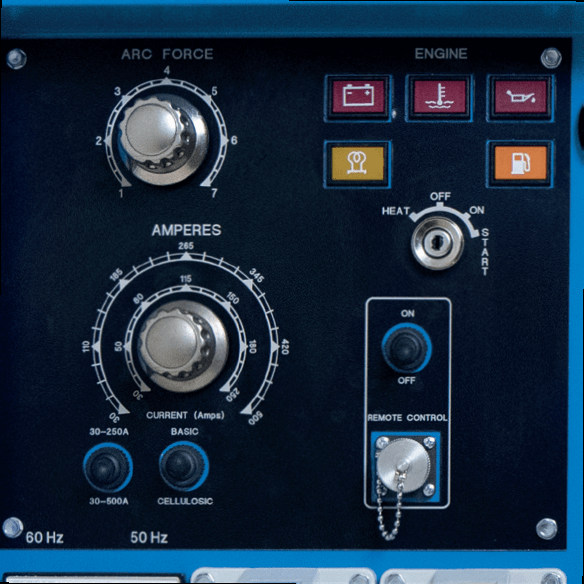

– Arc Force Control switch
– Carbon Arc Gouging (CAG) socket

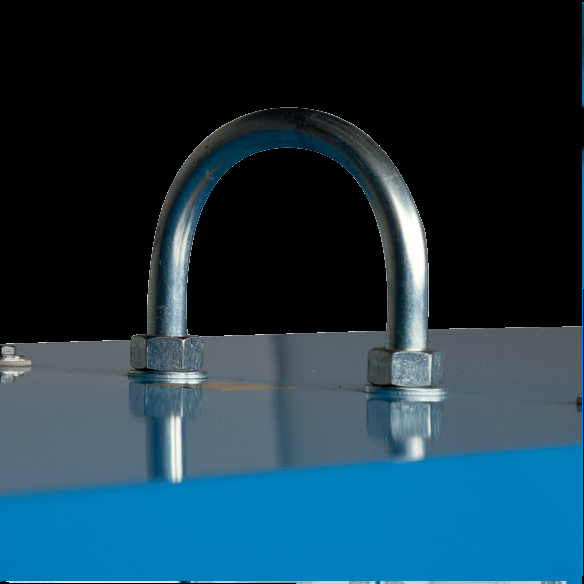

– Central lifting eye
– Fork-lift pockets
