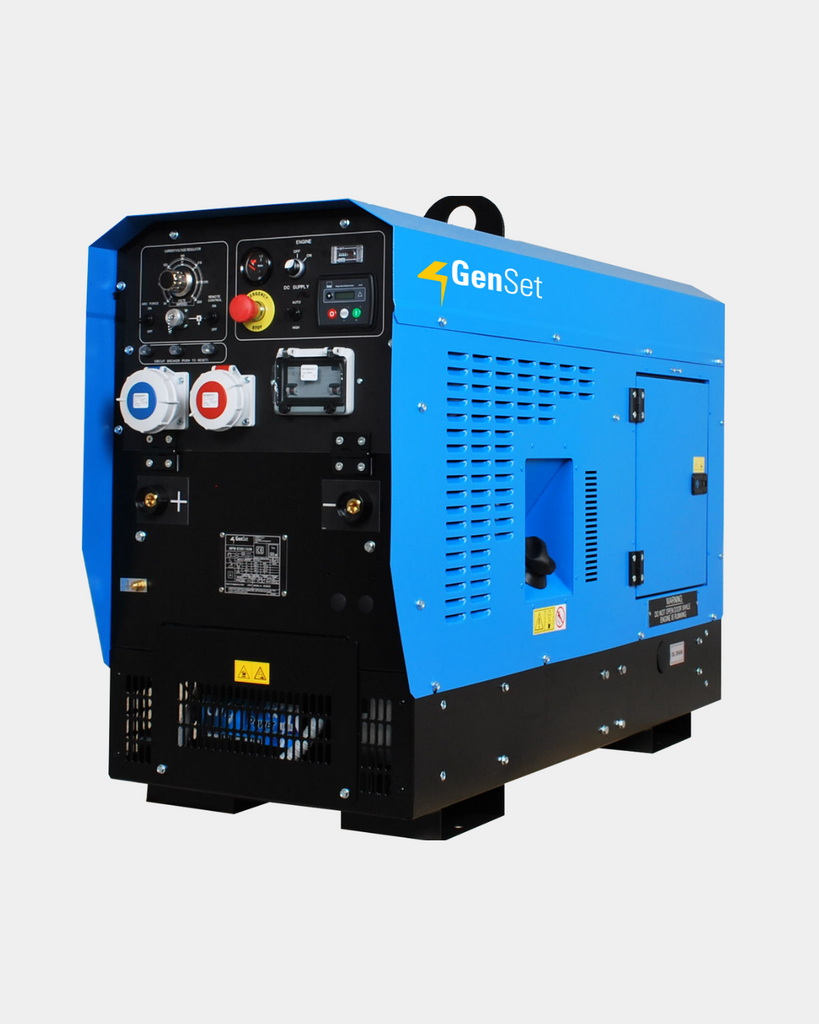

GenSet MPM 8/300 I-K Diesel Welder Generator 300A
The Genset 300 IK diesel welder generator is an Italian made machine offering 300 amps welding output, as well as 110, 230 and 400V power too. Fairly lightweight within its class, we have found these to be a good solution for vehicle mounted welding plant. Couple this with the ability to use a MIG wire feed unit thanks to the constant current, constant voltage welding output, it is an ideal mobile welding set.
Further features include engine auto idle, a remote control socket and an arc force control switch.
A Kubota diesel engine powers this capable Genset, allowing welding of up to 6mm electrodes. Its many features and quality build enable this machine to be used for the most industrial of applications. Asyncronous alternator for a better welding current quality, clean and distorsion free wave form.
Just like all the GenSet engine driven welder it is designed to be used as both a generator and welder simultaneously, its simple and smart design allows an easy handling.
DC Welding
| Amps range | 30 – 300A |
| Duty cycle @ 35% | 300A – 32V |
| Duty cycle @ 60% | 270A – 31V |
| Open Circuit Voltage (OCV) | 70V |
| Max Welding Rod | 6mm |
Diesel Engine
| Type | Kubota – 3 Cylinder – 719cm³ |
| Max Power | 19.4HP (14.4kW/m) |
| Cooling System | Water |
| Fuel Tank Capacity | 30 Litres |
| Fuel Consumption @ 75% | 3.3 Litres/Hour |
1360 X 530 X 870mm (Length x Width x Height)
Dry Weight 345KG
Genset Italy is a market leader when it comes to engine driven welders and generators. UK importer, Specialised Welding Products look after the warranty of these machines in the unlikely event of a breakdown. Filters are available quickly too, ensuring servicing can be carried out when needed.
