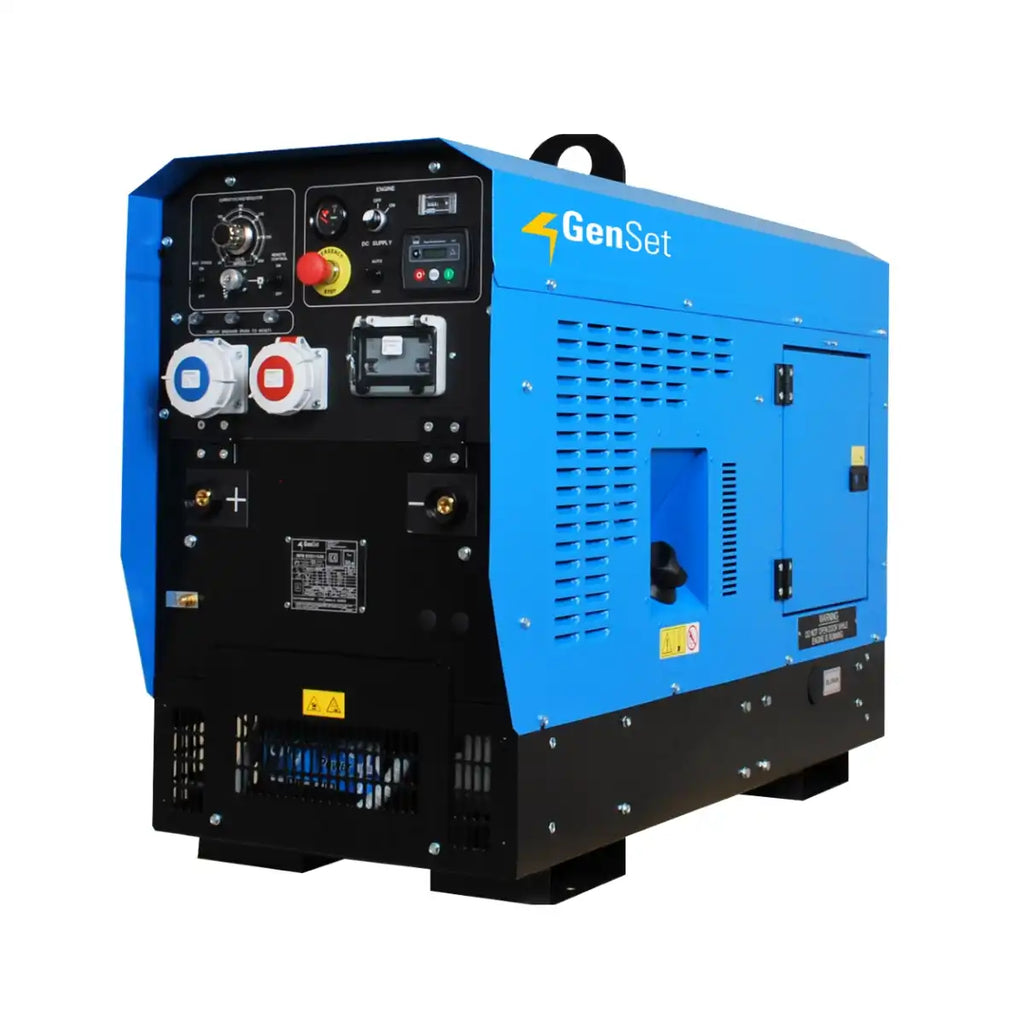

GenSet MPM 9/310 I-Y Static Diesel Welder Generator
Compact and resistant engine driven welder, thanks to the forkable base and the practical central lifting hook is suitable for frequent handling.

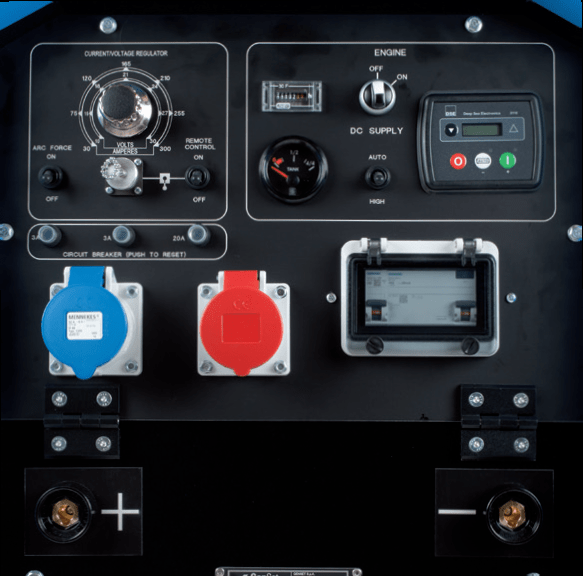

Equipped with Yanmar 3000 RPM engine and on board control panel, it’s fitted for remote control operation.
Asyncronous alternator for a better welding current quality, clean and distorsion free wave form.
Just like all the GenSet engine driven welder it is designed to be used as both a generator and welder simultaneously, its simple and smart design allows an easy handling.
- Enhanced Productivity: Delivers powerful performance to expedite welding projects
- Versatility: Supports a wide range of welding processes for diverse applications
- User-Friendly Operation: Simplifies operation and reduces setup time
- Durability: Built to withstand demanding work environments

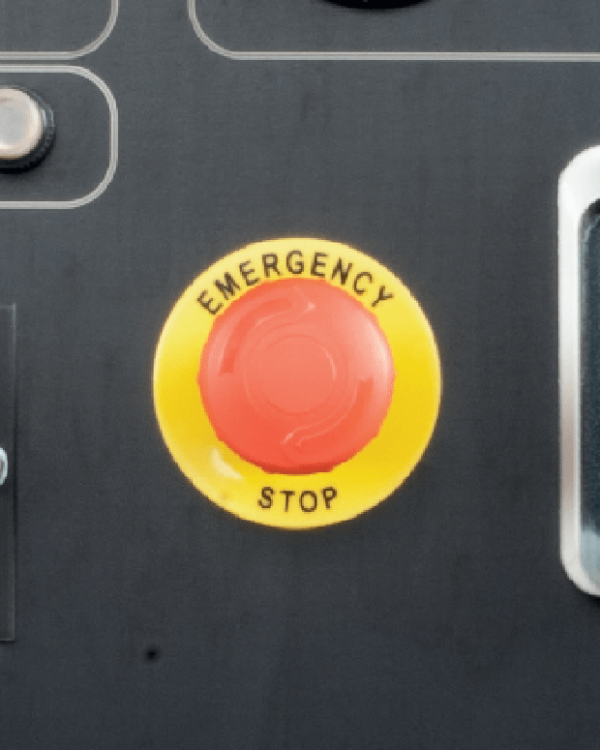

- Safety: Offers advanced safety features for operator protection
The GenSet MPM 9/310 I-Y Static Diesel Welder Generator is a powerful and versatile machine designed to deliver exceptional welding performance for a wide range of applications. This industrial-grade generator is equipped with a reliable diesel engine that provides ample power to operate various welding processes, including MMA (Stick), MIG/MAG (Gas Metal Arc Welding/Metal Inert Gas), TIG (Gas Tungsten Arc Welding), and FCAW (Flux-Cored Arc Welding).
The MPM 9/310 I-Y boasts a robust design with a heavy-duty frame that ensures durability and stability in demanding environments. Its user-friendly control panel features intuitive controls for easy operation, allowing you to precisely adjust welding parameters for optimal results. Additionally, the generator incorporates advanced safety features to safeguard operators during welding operations.
Features
- Powerful Diesel Engine: Delivers exceptional power for various welding processes
- Multi-Process Capability: Supports MMA, MIG/MAG, TIG, and FCAW welding
- User-Friendly Control Panel: Ensures effortless operation and precise parameter adjustment.
- Robust Design: Features a heavy-duty frame for superior durability and stability
- Advanced Safety Features: Protects operators during welding applications
Applications
- Metal Fabrication: Ideal for welding tasks in metal fabrication shops, construction sites, and industrial settings
- Maintenance and Repair: Suitable for maintenance and repair applications in various industries, including automotive, agriculture, and heavy machinery
- Field Welding: Designed for use in remote locations where access to grid power is limited
- Pipeline Welding: Can be effectively utilised for pipeline construction and maintenance projects
- Shipbuilding and Repair: Well-suited for welding applications in shipbuilding and ship repair yards
Specifications
DC Welding
Duty Cycle @ 35%: 300A-32V
Duty Cycle @ 60%: 270A-31V
Stepless Control: 30A-300A
Open Circuit Voltage: 70V
Max Welding Rod: 6mm
AC Generator – 50Hz
Type: Asynchronous, Self Excited & Self-Protected
Three-Phase Power (max): 8.0kVA-400V
Single-Phase Power (max): 2.7kVA-230V
Single-Phase Power (max): 13kVA-110V
Power Factor: cos 0.8
Diesel Engine – 3000 rpm
Type: Yanmar 3TNM72 – 3 cylinders – 904cm3
Max Power: 19.4HP (14.4kW/m)
Starting System: Electric (12VDC)
Cooling System: Water

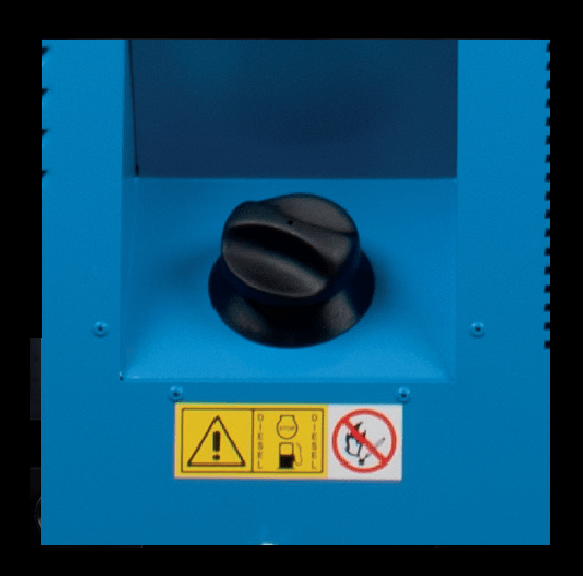

Fuel Tank Capacity: 50 litres
Fuel Consumption @ 75%: 5.1 litres/hour
Compliance Data
Noise Level: 99 LWA (74dB @ 7m)
Insulation Class: H
Ambient Temperature: 40°C
Altitude: 1000m
Mechanical Protection: IP23
Dimensions (l x w x h): 1360 x 530 x 870mm
Dry Weight: 385kg
