Specially designed for mounting on a wall or lift, the GYSFLASH vertical 32.12 PL is a 30 A multifunction charger for 12 V lead-acid and lithium-iron phosphate (LiFePO4) batteries. Its ‘Showroom/Diag’ mode means you can safely power vehicles in car dealerships or during diagnostics. It also guarantees optimum charge quality for servicing the most advanced vehicles.
• 2 charging modes :
- Pb: for charging 12 V lead-acid batteries from 15 Ah to 375 Ah
- LiFePO4: for charging lithium batteries (LFP) from 7 Ah to 375 Ah
• 3 charging currents: 7 A, 15 A and 30 A
• Fully automatic, intelligent charge curve in 7 steps (Lead) or 8 steps (LiFePO4)
• Meets the energy needs of 12 V batteries (up to 30 A) in a showroom or during diagnostics.
• Supply mode, to retain the vehicle's memory when replacing a battery.
• Compact, robust case with front-mounted cable winder (IP21)
• Total protection: against short-circuits, reverse polarity and overloads
• 230 V power supply
• Dimensions: 250 x 200 x 80 mm / Weight: 3 kg

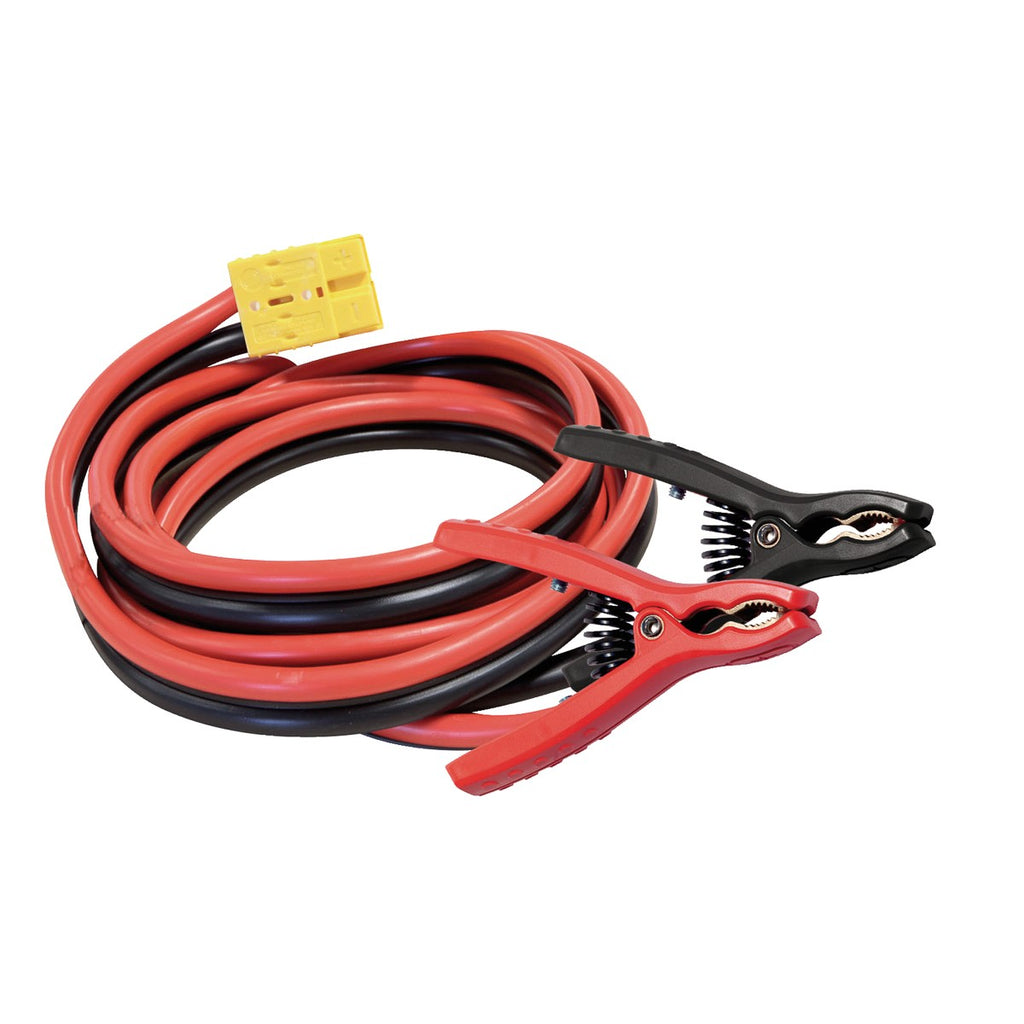

• Supplied with connection clips (2.5 m / 6 mm²)
- Length [mm]:250
- Width [mm]:200
- Height [mm]:80
- Product line: GYSFLASH 32.12 PL
- Features: portable, trickle charger
- Battery Capacity from [Ah]:7, 15
- Battery Capacity to [Ah]:375
- Vehicle type: Passenger cars, Trucks, Motorcycle
- Charge current (12V) [A]:7/15/30 A
- Cable Length [m]:2.2
- Protection Type (IP Code):IP 23
- Weight [kg]:3.0
- Charging Voltage [V]:12
- Input Voltage [V]:220-240
- Supplementary Article / Supplementary Info Info 2:with adapter, with hot wire protection, with overvoltage protection
