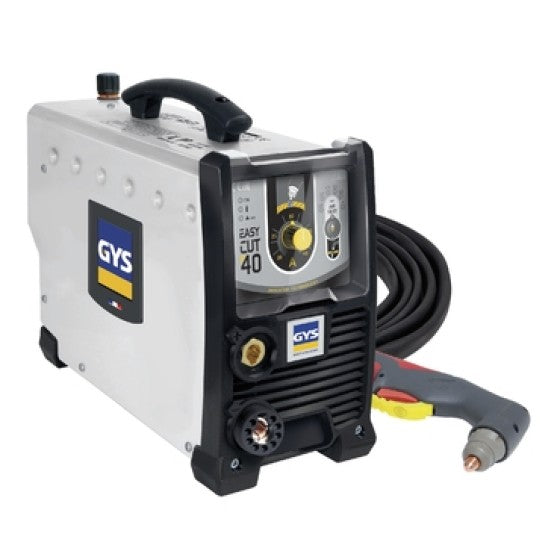

GYS 029743 Easycut 40 Plasma Cutter 230V

GYS 029743 Easycut 40 Plasma Cutter 230V

Ultra compact (8 kg), the EASYCUT 40 is a plasma cutter with a HF-free starting voltage, perfect for cutting all types of metal up to 20 mm thick. With a power output of 40 A, it excels in precision cutting at low intensity. Ideal for use in workshop or car body shop, the EASYCUT 40 has great portability and cutting performance. A pilot arc start does not require contact of the tip with the work piece.  Pilot arc eliminates the requirement for a HF (high frequency) start eliminating any electro magnetic interference from mobile phones, computers, radios etc.

Inverter technology guarantees quality cutting on all types of steels (soft, stainless, hardened, HLE), aluminium, copper, etc. Quick and easy installation of plasma torch consumables (standard Trafimet®).

Efficient

• Inverter technology guarantees quality cutting on all types of steels (soft, stainless, hardened, HLE), aluminium, copper, etc.
• Quick and easy installation of consumables.

The GYS plasma Easy Cut 40 provides high quality cutting results even on painted surfaces.

Cutting capacities:

• Up to 20mm steel, stainless steel and cast iron (15mm clean cut)
• Up to 15mm aluminium and copper (10mm clean cut)

Other features:

• Easy to use and connect to a compressed air system.

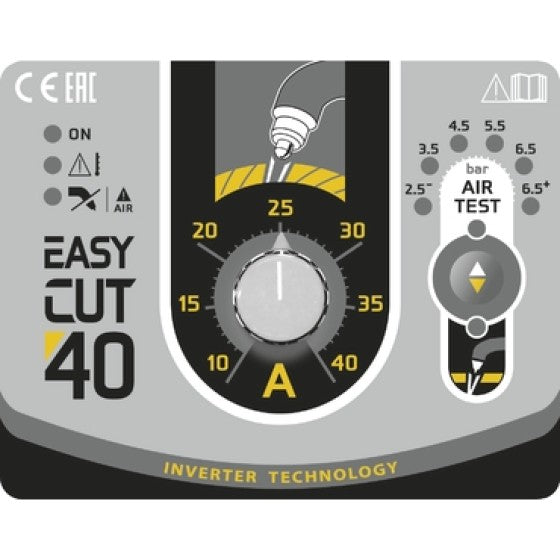

• Simple to use panel interface.
• Manual adjustment of the air pressure (2.5 < 6.5 bar) with an LED indicator on the front panel.
• Automatic torch detection.

Ergonomic Torch

• Effective cutting: air cooled torch body for a high arc stability and duty cycle.
• Ergonomic handle for comfort and ease.
• Designed to be shock and heat resistant.
• Quick torch connection/disconnection, without tools

Simple To Use

• Intuitive control panel.
• Manual adjustment of the air pressure (2.5 < 6.5 bar) with a bar graph on the front panel.
• Automatic torch detection.
• HF-free ignition to prevent disturbances that could damage nearby electronic equipment.

Ergonomic

• Reinforced structure with isolated non slip rubber pads.
• HMI protective cover.
• The torch and earth clamp can be disconnected.
• Compact, lightweight and portable

Separation

Clean Cut

Package Includes

• Flexible Voltage Machine
• 4m Torch
• 2m Earth Clamp

Supported by a 2 Year Manufacturers Warranty.
