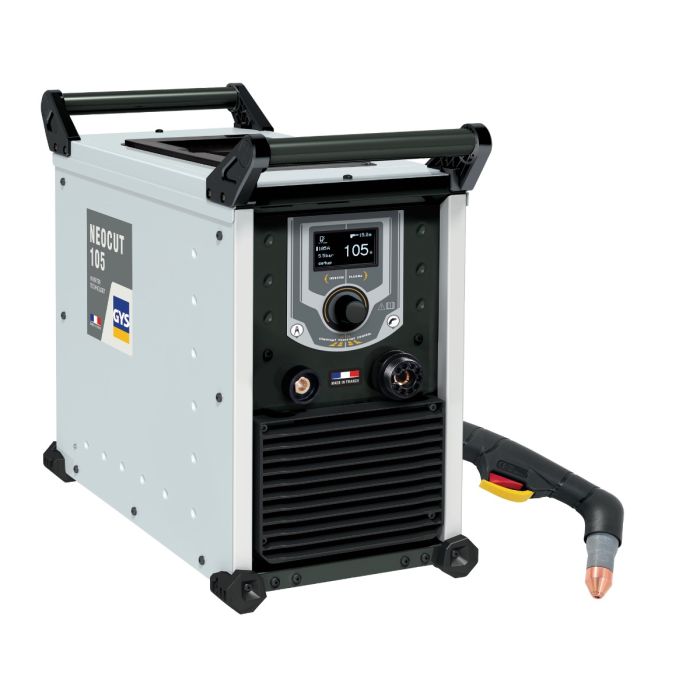

GYS 063112 Neocut 105 Plasma Cutter With 6M MT125 Torch 400V
The NEOCUT 105 stands as a plasma cutter featuring a 100% duty cycle at 105 A, designed for cutting tasks up to 50 mm thickness in industrial settings. It comes equipped with automatic air pressure management in all modes, ensuring optimal cutting quality throughout the consumables' lifespan. Additionally, it can be seamlessly connected to a cutting table, and its "Marking" mode is ideal for tracing and identifying parts.
- Duty cycle 100% A at 105 A (40°C).
- Cuts up to 50mm thick
- Optimised cooling
- Compatible with CNC KIT
- 3-Phase
- 3 Year warranty
Features
- Professional plasma cutter for cutting parts up to 50 mm thick.
- Compatible with a wide range of materials including mild steel, stainless steel, aluminium, and copper.
- Features 6 working modes: Cutting, Cutting with locked trigger, Gouging, Gouging with locked trigger, Cutting perforated sheet metal, and Marking.

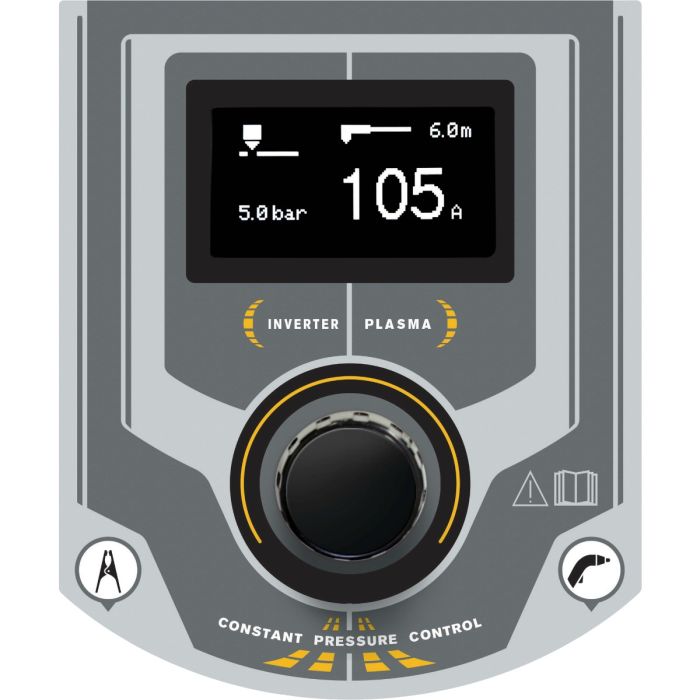

- Equipped with an ergonomic interface and OLED screen supporting 7 languages.
- Includes a meter to monitor wear and tear of consumables.
- Provides pneumatic diagnostics and automatic air pressure management.
- Supports gouging with maximum shrinkage (specific skid and nozzle optional).
- HF-free priming for safe operation.
- Pre-engineered for use on automated cutting tables (optional).
- Software update capability via USB cable.
- Supplied with a 6 m MT-125 premium manual torch.
- Operates on a three-phase 400 V power supply.
Specifications
| EAN Code | 3154020063112 |
| Weight | 33 kg |
| Length | 69 cm |
| Width | 40 cm |
| Height | 61 cm |
| Cutting thickness | Up to 50 mm |
| Working modes | 6 modes including Cutting, Gouging, and Marking |
| Interface | Ergonomic with OLED screen |
| Languages supported | 7 languages |
| Consumable monitoring | Meter to monitor wear and tear |
| Diagnostics | Pneumatic diagnostics |
| Air pressure management | Automatic |
| Priming | HF-free |
| Automation compatibility | Pre-engineered for automated cutting tables |
| Software updates | Via USB cable |
| Torch | 6 m MT-125 premium manual torch |
| Power supply | Three-phase 400 V |
