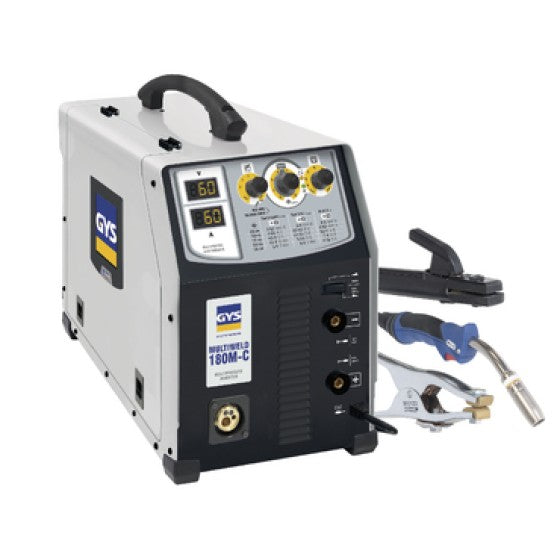

Discover the GYS MULTIWELD 180M-C: a compact single-phase power source that combines MIG/MAG, flux-cored gasless wire, and MMA welding processes. With its intuitive interface and two digital displays, precise adjustments are effortless. Portable and suitable for welding steel, stainless steel, and aluminium with its 180 amp output for MIG/MAG. Upgrade your welding experience today!
Features
- MIG/MAG Welding: Compatible with steel, stainless steel, and aluminium- wires of various diameters, as well as flux-cored wires.
- MMA Welding: Supports basic and rutile electrodes up to Ø 3.2 mm.
- Integrated Anti-sticking Welding Aid: Reduces electrode sticking.
- Multi-process Capability.
- Portable: Compact design (16.5 kg) with reinforced housing and anti-shock feet.
- Intuitive Interface: Two digital displays for easy adjustments, even in bright conditions.
- Manual Arc Dynamics Adjustment.
- Welding Aid: Front panel table for adjusting voltage and wire feed speed based on material thickness.
- Optimized MIG/MAG Settings.
- Integrated Wire Feeder: Compatible with Ø 200/300 mm wire spools, features a 4-roller feeder.
- European Torch Connection: Allows for quick assembly/disassembly.
Package Includes
- MULTIWELD 180M-C
- 3 MTR MB15 Mig Torch
- Earth Cable
- Electrode Cable
Technical Specifications
- Power Supply: 230 V, 1~
- Frequency: 50/60 Hz
- Welding Processes: MIG/MAG, Flux-cored
- Wire Spool Compatibility: Ø 200/300 mm
- Wire Diameters Supported: Steel: 0.8 mm - Flux-cored: 0.9 mm
- Electronic Control
- Wire Feed Speed: Adjustable from 3 to 10 m/min
- Current Range: MIG/MAG: 16 to 180 A - MMA: 50 to 110 A
- Duty Cycle (at 60%): MIG/MAG: 100 A - MMA: 100 A
- Voltage Adjustment Range: 16 to 20 V
- Maximum Current Consumption: 53 A
- Dimensions: 59 x 28 x 45 cm
- Weight: 16.5 kg
- Protection Class: IP21
- Cable Length: 2 m
Specifications
SKU-GYS-078727
Weight (kg)-16.5
Manufacturer-GYS
Warranty-2 Years
GTIN / Barcode-3154020078727
MPN-78727
Voltage-240
