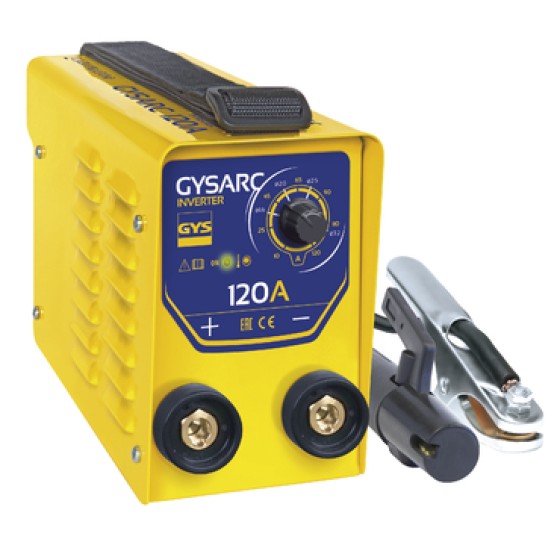

GYSARC 120 MMA Inverter Welder – More Power, Same Portability
The GYSARC 120 delivers compact, efficient, and powerful MMA welding performance in a unit weighing under 3 kg. With up to 120 amps of output, it can weld steel, stainless steel, and cast iron up to 8 mm thick — making it ideal for home workshops, mobile welding, and light fabrication work.
What's in the Box
GYSARC 120 Inverter Welder
1.6 m Earth Clamp Cable (Ø 10 mm²)
1.6 m Electrode Holder Cable (Ø 10 mm²)
User Manual
Key Features
Adjustable Output: 10 – 120 A
Handles light-duty tasks through to thicker workpieces with ease.
Welds a Variety of Electrodes
Supports rutile, stainless steel, cast iron, and basic types from Ø 1.6 to 3.2 mm.
Welds Up to 8 mm Material Thickness
Versatile enough for construction, equipment repair, and metalwork projects.
IGBT Inverter Technology
Delivers smooth, stable arcs
Reliable performance even on long extension leads or variable power supplies
Fast arc ignition and clean welds
Integrated Welding Assistance Functions
Hot Start: Assists with quick arc ignition
Anti-Sticking: Reduces electrode sticking during contact
Arc Force: Maintains consistent arc control throughout the weld
Simple and Intuitive Operation
A single potentiometer lets you adjust output current from 10 to 120 A.
Designed for Portability and Durability
Weight: Just 2.7 kg
Dimensions: 15 × 23 × 10 cm – fits in compact storage or transport spaces
Shoulder Strap: Included for mobile and on-site welding tasks
Power Supply: 230 V / 16 A single-phase plug for easy setup
Safety Features: Thermal and overcurrent protection
Protection Rating: IP21 – suitable for indoor and workshop use
Technical Specifications
Input Voltage: 230 V / Single-phase / 16 A
Output Current: 10 – 120 A
Duty Cycle: 70 A @ 60%, 55 A @ 100%
Electrode Diameter: Ø 1.6 – 3.2 mm
Maximum Material Thickness: Up to 8 mm
Protection Rating: IP21
Weight: 2.7 kg
Dimensions: 15 × 23 × 10 cm
Ideal For
Field repairs and mobile welding
Workshop and DIY metalwork
Agricultural equipment maintenance
General fabrication
Anywhere compact power is needed
