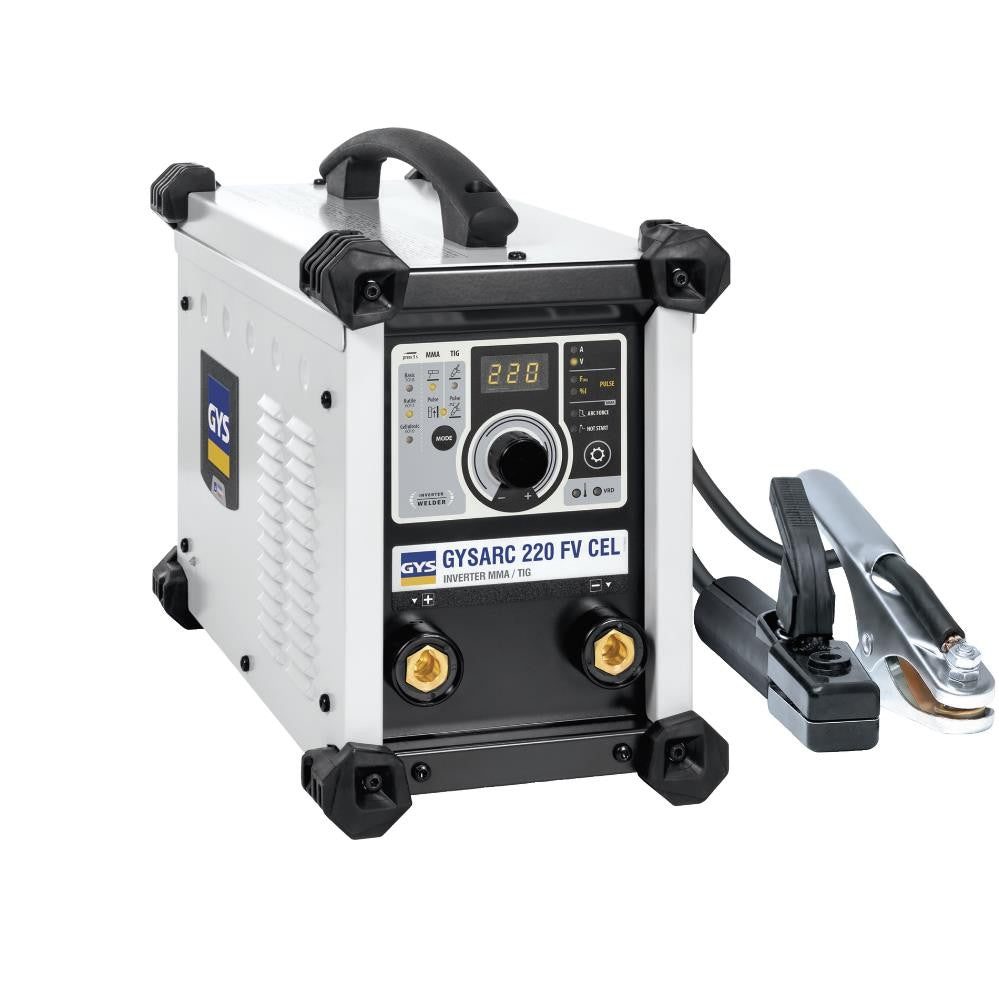

Elevate your welding game with the GYSARC 220 FV CEL, a versatile dual voltage (110 – 230V) MMA welding inverter. Packed with cutting-edge technology, this welder delivers exceptional performance in various applications.
Designed to withstand harsh conditions, GYSARC inverters feature a rugged casing and reinforced electronics, boasting a tested IP23 protection rating. With the ability to handle electrodes from 1.6 to 5mm, including basic, rutile, and cellulosic rods, it offers unmatched flexibility.
MMA Pulse modes simplify positional welding, and flexible voltage combined with Power Factor Correction (PFC) technology allows operation on 85V to 265V power supplies. Perfect for on-site use, it accommodates 110V and 230V supplies and extends up to 100m with suitable cables.
Setting up is a breeze with the touchpad and single-dial interface, while the digital meter ensures clear visibility of settings. The high duty cycle makes it ideal for intensive use with welding rods from 1.6 to 5.0mm, handling materials up to 10mm thick. Suitable for various electrodes, including steel, stainless steel, cast iron, rutile, basic, aluminium, or cellulosic, the GYSARC 220 FV CEL is your go-to welding solution for precision and power.
Ready To Weld Package Includes
- 3m Electrode cable
- 3m Work Return
Features
- Immediate start with high no-load voltage for easy arc initiation
- Constant welding power for smooth melting of welding rods with DC current
- Excellent arc stability and penetration for precise welding
- High duty cycle enables intensive use without compromising performance
- Lift TIG Capability ensures easy starts and clean welding finishes
- Pulsed MMA mode for controlled weld pools, quicker freezing, and reduced heat input
- Compatible with standard 230V-16A/110V-32A, even during intensive use with 100m extension leads
- Suitable for use with generators (+/- 15%) with automatic voltage regulation recommended
- Includes a 3m electrode holder lead and 3m work return lead for added convenience
- European-made (France) with a confidence-boosting 2-year warranty
Technical Spec
- Model: GYS GYSARC 220 FV CEL PFC
- Amps Range: 10 – 220 (230V), 10 – 120 (110V)
- Duty Cycle @ 40% (20ºC): 220A (230V)
- Input Fuse: 16A (230V), 32A (110V)
- Min Generator Size: 12.5kVA
- Electrode Size for MMA: 1.6 – 5.0mm
- Dimensions: 420 x 210 x 350mm
- Dinse Plug Size: 35 – 50
- Approx. Weight: 10.5kg
