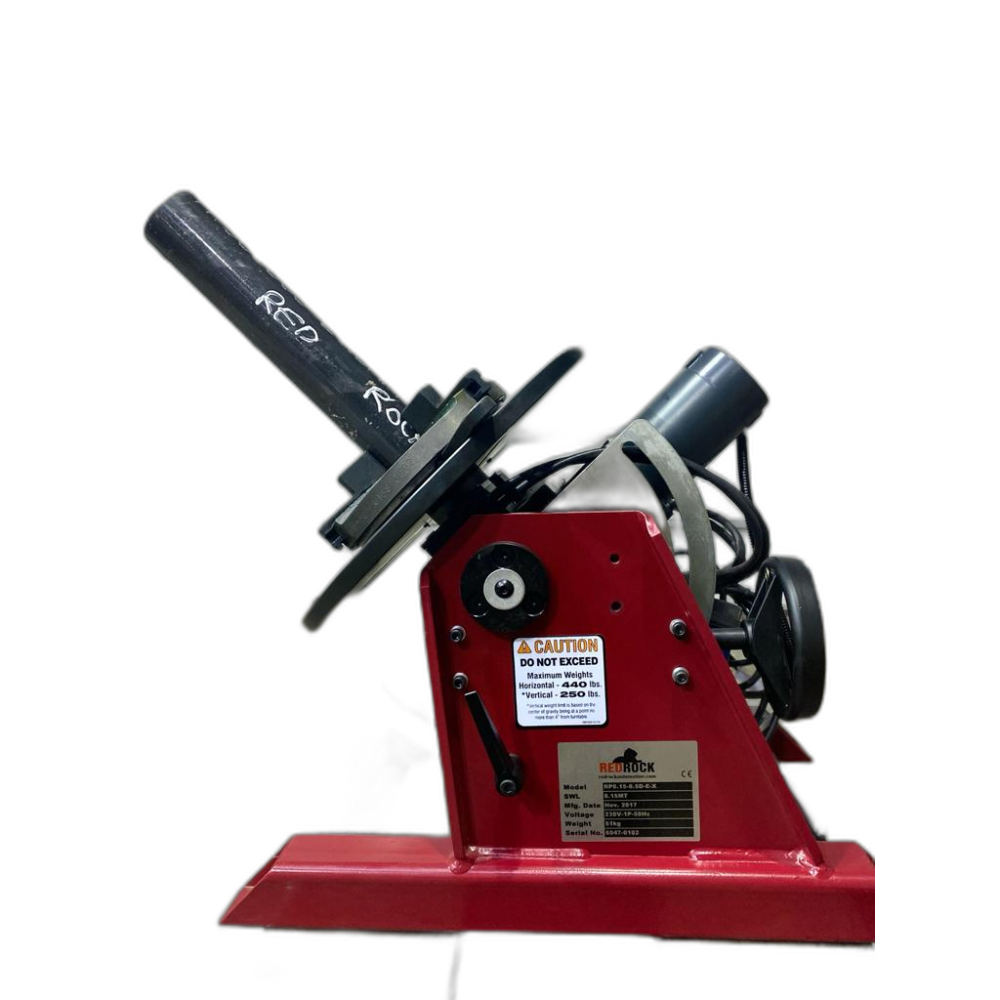

LPE0.15-0.36C-WD Redrock150kg Welding Positioner
The Redrock 150kg Welding Positioner 2 Axis Hydraulic Welding Positioner is designed to hold, rotate and tilt work-pieces during welding and fabrication operations. It helps operators place components at a controlled working angle, reducing manual handling while supporting more consistent weld access and improves weld quality, safety and production flow.
Features
- 2 axis positioning: Enables controlled work-piece rotation and tilt for improved weld access
- Heavy-duty capacity: Rated for 150kg @ 100mm turning capacity and 150kg @ 100mm tilting capacity
- Controlled rotation: 0-4.7rpm at 0.9V / DC 65w rotation speed for steady positioning during welding work
- Robust work table: Φ 350x12t c/w 3 slot(14) table for supporting fabrication components
- Industrial earthing: 300A earthing provision for welding applications
| Technical Data |
| Cat | POS0.15 |
| Model | LPE0.15-0.36C-WD |
| Turning Capacity | 150kg @ 100 mm |
| Tilting Capacity | 150kg @ 100 mm |
| Rotation Speed / Power | 0-4.7rpm at 0.9V/ DC 65w |
| Tilt Range / Power | 0-90° Manual |
| Rotation Drive Control: | DC Motor Card |
| Table Size | Φ 350x12t c/w 3 slot(14) |
| Earthing | 300A |
| Tilt Speed | TBA |
