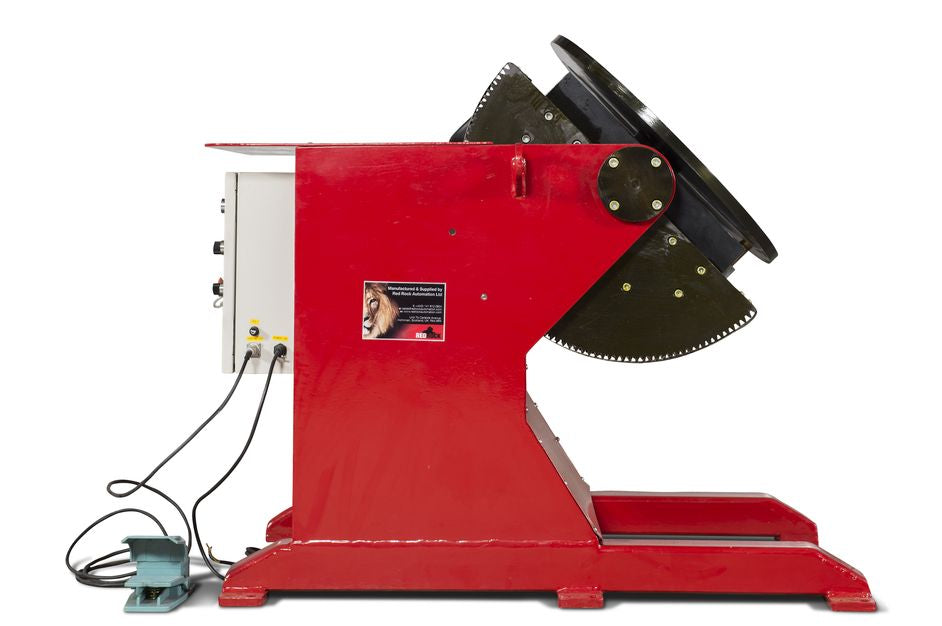

PE0.5-0.62C-WD-WH 500kg Welding Positioner
The Redrock Automation PE0.5-0.62C-WD-WH is a heavy duty 2 axis welding positioner designed to hold, rotate, and tilt large fabrication components weighing up to 500 Kg. By positioning work-pieces at optimal angles, it helps welders achieve clean, consistent down-hand or automated welds while reducing physical strain.
Features
- 2 axis positioning: Enables controlled work-piece rotation and tilt for improved weld access
- Heavy-duty capacity: Rated for 0.5MT @ 300 mm turning capacity and 0.5MT @ 300 mm tilting capacity
- Controlled rotation: 0.2-2 rpm rotation speed for steady positioning during welding work
- Robust work table: Ø620 x 25 mm table for supporting fabrication components
- Industrial earthing: 500A earthing provision for welding applications
| Technical Data |
| Cat | POS0.5 |
| Model | PE0.5-0.62C-WD-WH |
| Turning Capacity | 0.5MT @ 300mm |
| Tilting Capacity | 0.5MT @ 300mm |
| Rotation Speed / Power | 0.2-2rpm |
| Tilt Range / Power | 0-135° |
| Rotation Drive Control | DC Motor Card |
| Table Size | Ø620 x 25mm |
| Earthing | 500A |
| Tilt Speed | 135° in 51sec |
