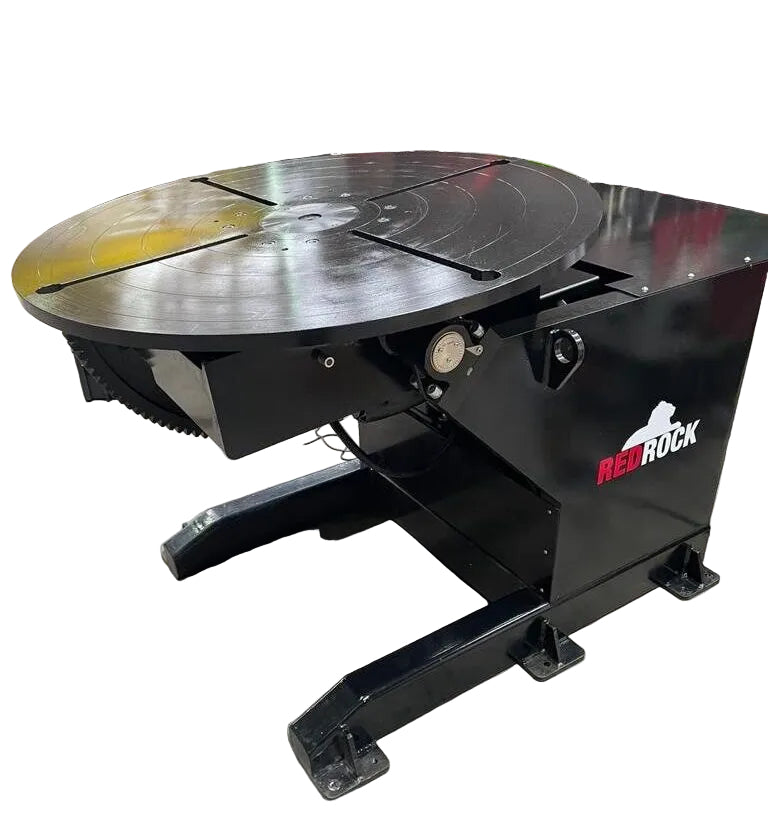

PE1-0.9C-WE-X Redrock 1,000kg Welding Positioner
The Redrock 1,000kg Welding Positioner 2 Axis Hydraulic Welding Positioner is designed to hold, rotate and tilt work-pieces during welding and fabrication operations. It helps operators place components at a controlled working angle, reducing manual handling while supporting more consistent weld access and improved production flow. It is suitable for workshops that need controlled rotation, stable work-piece support and repeatable positioning for fabrication, assembly and welding tasks.
Features
- 2 axis positioning: Enables controlled workpiece rotation and tilt for improved weld access
- Heavy-duty capacity: Rated for 1MT @ 300mm turning capacity
- Controlled rotation: 0.12-1.2rpm @ 5-50hz rotation speed for steady positioning during welding work
- Robust work table: Ø900 x 25mm table for supporting fabrication components
- Industrial earthing: 800A earthing provision for welding applications
| Technical Data |
| Cat | POS001 |
| Model | PE1-0.9C-WE-X |
| Turning Capacity | 1MT @ 300mm |
| Rotation Speed / Power | 0.12-1.2rpm @ 5-50hz |
| Tilt Range / Power | 0-135° |
| Rotation Drive Control | 0.75kW AC Inverter (turning only) |
| Table Size | Ø900 x 25mm |
| Earthing | 800A |
| Tilt Speed | 135° in 66s running@ 50hz |
