Hire PE3-1.2C-WE-X Redrock 3,000kg Welding Positioner

PE3-1.2C-WE-X Redrock 3,000kg Welding Positioner

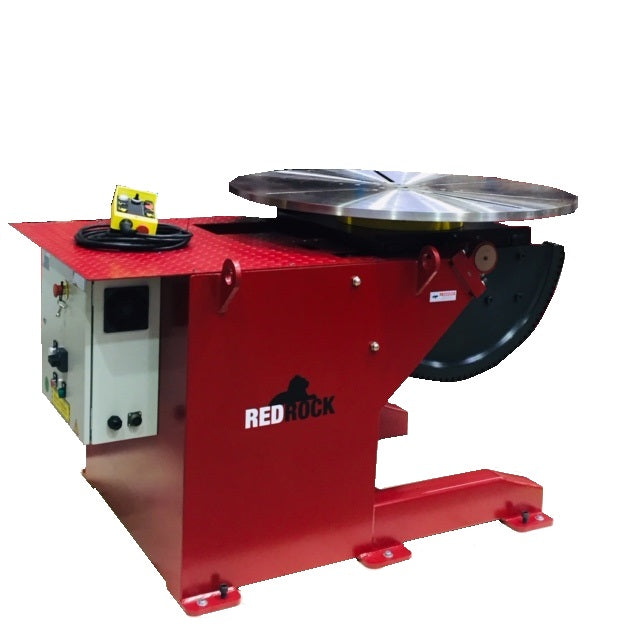

The Redrock PE3-1.2C-WE-X is a heavy duty, 3000 kg 2 axis hydraulic welding positioner designed to safely hold, tilt, and rotate massive cylindrical work-pieces for precision welding. It eliminates the severe safety hazards of manual fabrication handling by using a 1.5kW AC inverter motor to control movements precisely.

Features

• Provides complete control over the spatial orientation of work-pieces by facilitating 360° continuous rotation alongside a 0° to 135° hydraulic tilt range.
• Uses a 1.5kW AC inverter motor dedicated strictly to the turning axis, maintaining steady torque distribution under full 3-tonne off-centre loads
• Features an integrated 800A earthing mechanism that safely conducts heavy high-amperage welding currents without damaging internal motor bearings or gearboxes
• Equipped with a solid Ø1200mm × 28mm thick turntable featuring industry-standard radial slots to securely anchor custom fixtures or heavy-duty 3-jaw welding chucks
• Delivers ultra-slow, stepless rotation speeds ranging from 0.09 to 0.9 rpm operating across a 5–50 Hz frequency spectrum, optimising automated circumferential weld profiles
• Features high-torque hydraulic rams capable of sweeping through the maximum 135° tilt index in 108 seconds flat under 50 Hz power
