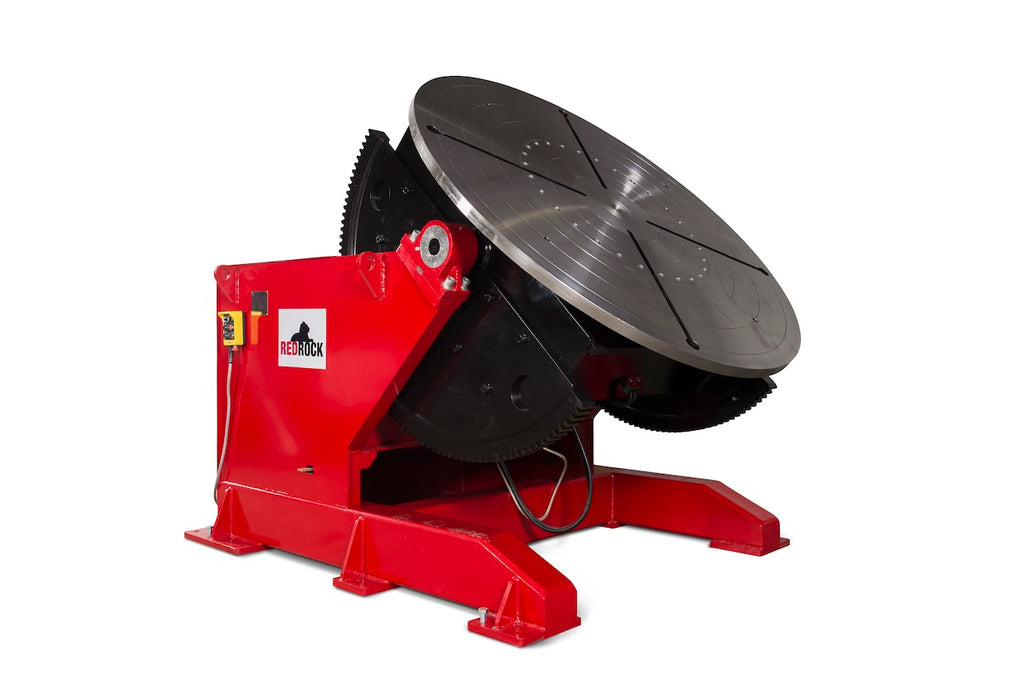

PE5-1.5C-WE-X Redrock 5,000kg Welding Positioner
The PE5-1.5C-WE-X is a 5000 kg 2 axis hydraulic welding positioner, it is heavy-duty industrial piece of machinery used to rotate and tilt large work-pieces, allowing welders to maintain an optimal downhand welding position. This equipment is used to manipulate massive structural components safely. It eliminates the need for overhead cranes during active welding. The variable speed rotation ensures consistent weld travel speeds, which maximizes weld quality and deposition rates.
Features
- 2 axis positioning: Enables controlled workpiece rotation and tilt for improved weld access
- Heavy-duty capacity: Rated for 5MT @ 300mm turning capacity and 5MT @ 200mm tilting capacity
- Controlled rotation: 0.074-0.74rpm running at 5-50Hz rotation speed for steady positioning during welding work
- Robust work table: Ø1500mm x 36mm table for supporting fabrication components
- Industrial earthing: 800A earthing provision for welding applications
| Technical Data |
| Cat | POS005 |
| Model | PE5-1.5C-WE-X |
| Turning Capacity | 5MT @ 300mm |
| Tilting Capacity | 5MT @ 200mm |
| Rotation Speed / Power | 0.074-0.74rpm running at 5-50Hz |
| Tilt Range / Power | 0-135° |
| Rotation Drive Control | 3kw AC Inverter (turning only) |
| Table Size | Ø1500mm x 36mm |
| Earthing | 800A |
| Tilt Speed | 135° in 113sec |
