RD10-PV Redrock 10t Self Aligning Welding Rotator Set

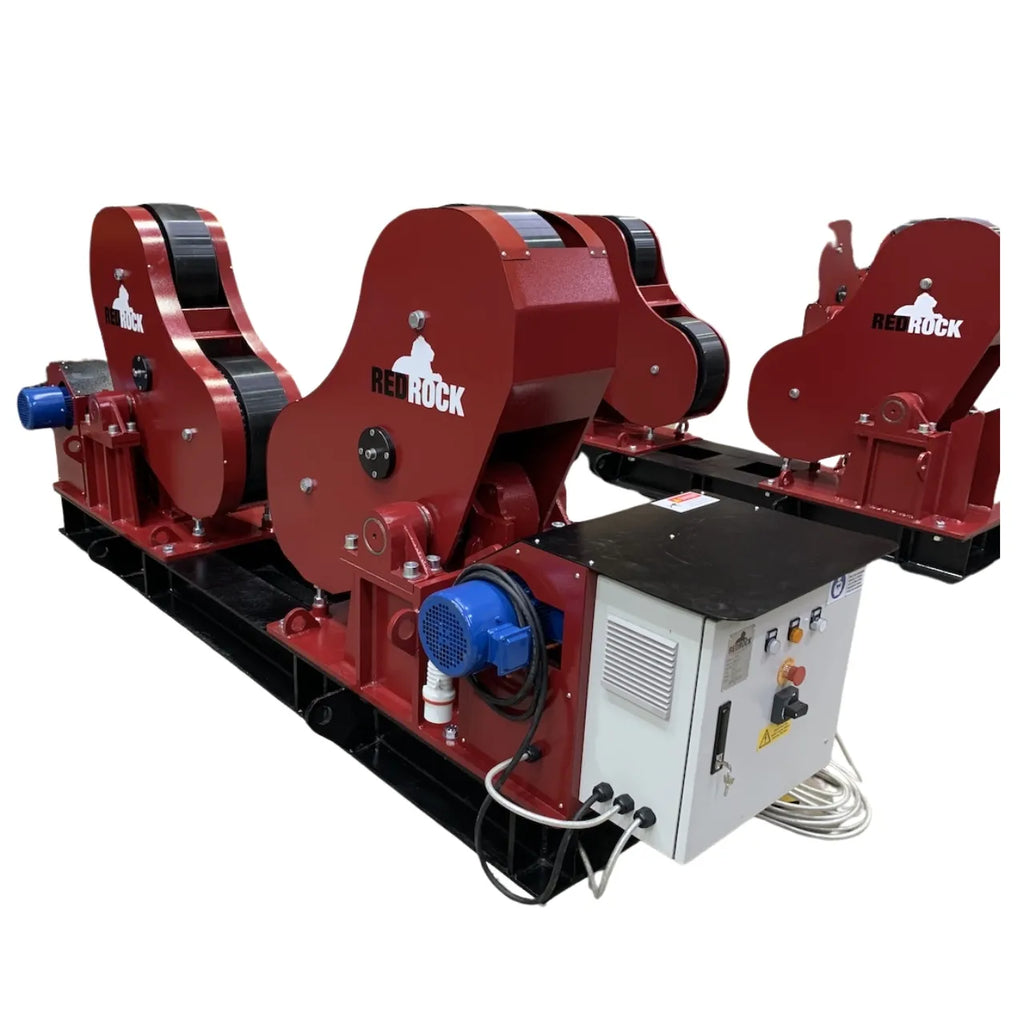

The Redrock RD10-PV is a 10 ton self aligning welding rotator set consisting of one drive unit and one idler unit, it automatically pivots and adjusts to different vessel diameters, removing the need for manual wheel layout changes and speeding up the fabrication setup.

For operations requiring high-precision, automated handling of cylindrical work-pieces, engineered by experts in industrial welding automation, this system is meticulously designed to optimise the circular welding process for pipes, tanks, boilers, and pressure vessels, delivering superior weld quality and substantial efficiency gains.

This specific rotator set includes one robust drive unit and one idler unit, featuring a combined nominal set capacity of 10 metric tonnes. Critically, the system is validated for a total rotational work-piece capacity of 15 metric tonnes, providing substantial reserve capacity and versatility for various industrial projects.

The self-aligning design is intelligently adapting the roller spacing to precisely cradle work-pieces with varying diameters – from a minimum vessel size of Ø500 mm up to a substantial maximum of Ø3500 mm. This automatic adjustment eliminates the time-consuming manual setup required by conventional rotators, ensuring rapid production changeovers and minimising operator intervention.

Equipped with high-traction, durable Vulcanised Polyurethane (PU) tyres, the RD10-PV ensures consistent, non-slip rotation while protecting the work-piece surface from marking. The advanced motor control allows for a finely tuned roller speed range of 130 to 1300 mm/min (at 5-50Hz), essentially for maintaining optimal travel speed.

By integrating the Redrock RD10-PV rotator set into your fabrication workflow, you are adopting a proven solution for achieving consistently high-quality circumferential welds, significantly reducing non-productive time, and enhancing overall project delivery capabilities.

Features

• Automated Self-Alignment: The four-roller mechanism pivots independently to dynamically adjust to varying vessel diameters. It removes the need for manual wheel adjustments or layout downtime.
• Synchronised Dual-Drive: The drive unit utilises two synchronised electric motors. This design guarantees uniform torque delivery and prevents work-piece slippage.
• Shock-Absorbing PU Wheels: Heavy-duty vulcanised polyurethane (PU) tyres cushion against high-impact loads during crane positioning. They also protect the internal gearboxes from mechanical shock.
• Constant Centre Line: The height of the vessel's centre axis remains uniform across changing diameters. This simplifies the alignment of fixed automated welding torches or column-and-boom setups.
• Precise Speed Inverter: An integrated frequency inverter provides infinitely variable rotation speeds. This delivers stable, shudder-free rotation at low speeds for high-quality weld beads.
• Low-Voltage Remote Control: A heavy-duty hand pendant allows operators to adjust speeds, toggle direction, and trigger emergency stops safely away from the rotating load.
