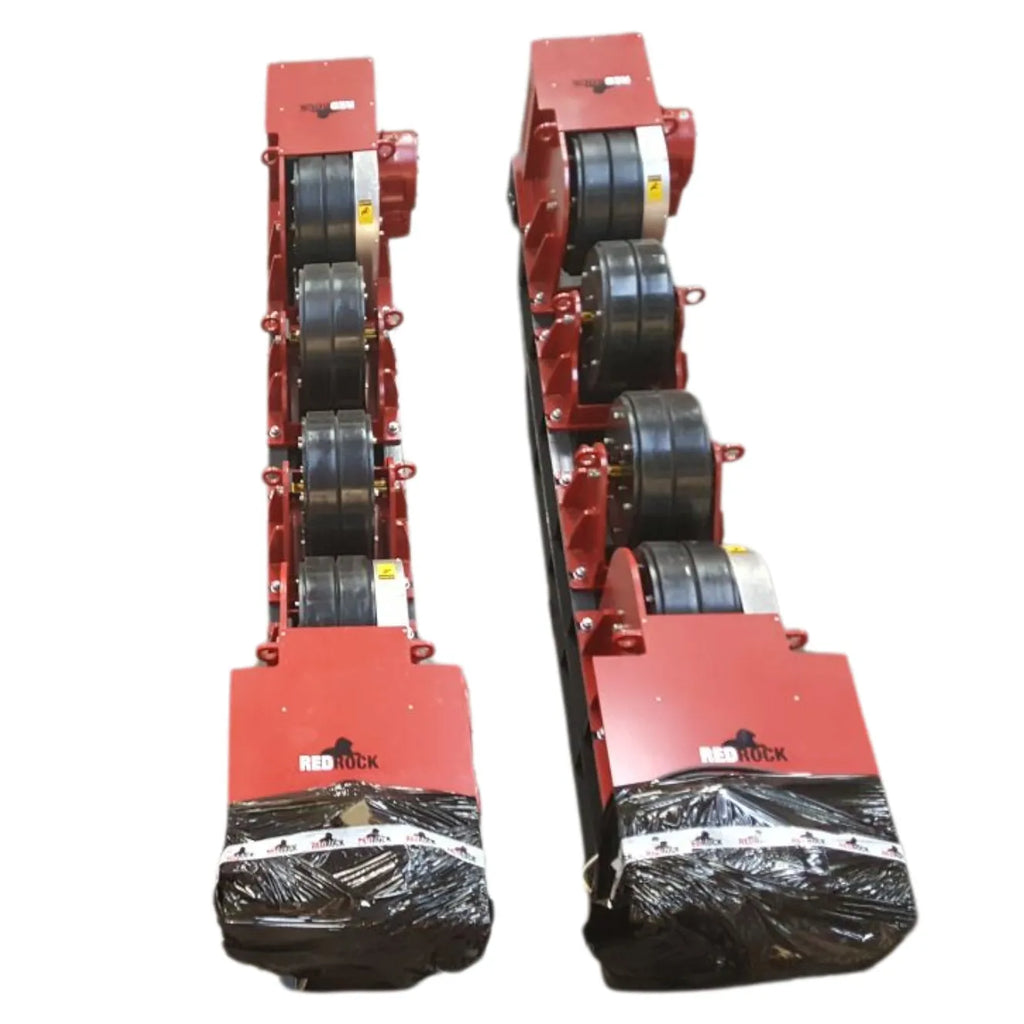

RRW40-60-PP-31-F-E Redrock 40t Conventional Welding Rotator Set
The Redrock RRW40-60-PP-31-F-E is a heavy-duty 40 tonne conventional welding rotator set consisting of one powered drive unit & one idler unit. It is engineered to support, rotate, and position large cylindrical workpieces, such as pressure vessels, tanks, and large diameter pipes during manual or automated welding processes.
This robust conventional rotator system is built for stability and longevity. While as a 40-tonne unit, the set boasts an exceptional total rotation capacity of 60 tonnes, providing an operational margin for diverse projects.
The precision is the units high-traction, durable Polyurethane (PU) roller system (ø520mm x 200mm). These rollers, specified to a Shore ‘A’ hardness of 90-95, minimise the risk of workpiece damage, slippage, and distortion, particularly critical when working with polished or sensitive materials. Furthermore, the electronic variable speed control provides an infinitely adjustable roller speed range from 130mm/min up to 1300mm/min, allowing welders to fine-tune the rotation speed precisely to the required welding process.
The Redrock 40t Rotator Set offers versatility, accommodating minimum vessel diameters of ø470mm and expanding to manage diameters up to ø7580mm. This system elevates operational efficiency, enhances welder productivity, and guarantees the highest standard of repetitive weld quality, establishing it as an essential component in any serious heavy vessel fabrication facility.
Features
- Precise vessel rotation and reliable workshop performance.
- Dual-Component Architecture: Includes one powered drive unit and one passive idler unit.
- Polyurethane Tyres: High-durability PU rollers (Shore A 90-95 hardness) maximise traction while preventing surface marring on sensitive workpieces.
- Manual Adjustment Frame: Pre-drilled bolt positions allow quick manual shifting of wheel centres to accommodate diverse diameters.
- Dual-Motor Synchronisation: The drive unit utilises two synchronised AC motors to eliminate rotational backlash and ensure smooth, balanced torque.
- Heavy Steel Base: Rigorous, fully welded chassis withstands high impact and prevents deformation under max load.
- Inverter Control: Advanced variable-frequency drive (VFD) yields precise, infinitely variable speed regulation from 130 to 1,300 mm/min.
- Remote Control Pendant: Low-voltage hand pendant manages forward/reverse rotation, precise speed adjustment, and sudden stops.
- Emergency Stop: Integrated E-stop button on the main panel and remote control ensures instant power cutoff for operator safety.
- Universal Integration: Control panel features auxiliary ports to easily link and synchronise rotation directly with automated welding columns and booms.
| Technical Data |
| Cat | 040T |
| Model | RRW40-60-PP-31-F-E |
| Item | Drive / Idler Rotator |
| Load Capacity Each | 20T |
| Total Rotation Capacity | 60T |
| Vessel Size Min | Φ470 mm at 90° included angle, at C-C 700 mm |
| Vessel Size Max | Φ7580 mm at 45° included angle, at C-C 3100 mm |
| Tyre Type & Size | Polyurethane Φ520mmx200mm, Shore ‘A’ 90-95 |
| Roller Speed | 130~1300mm /min at 5 to 50Hz |
