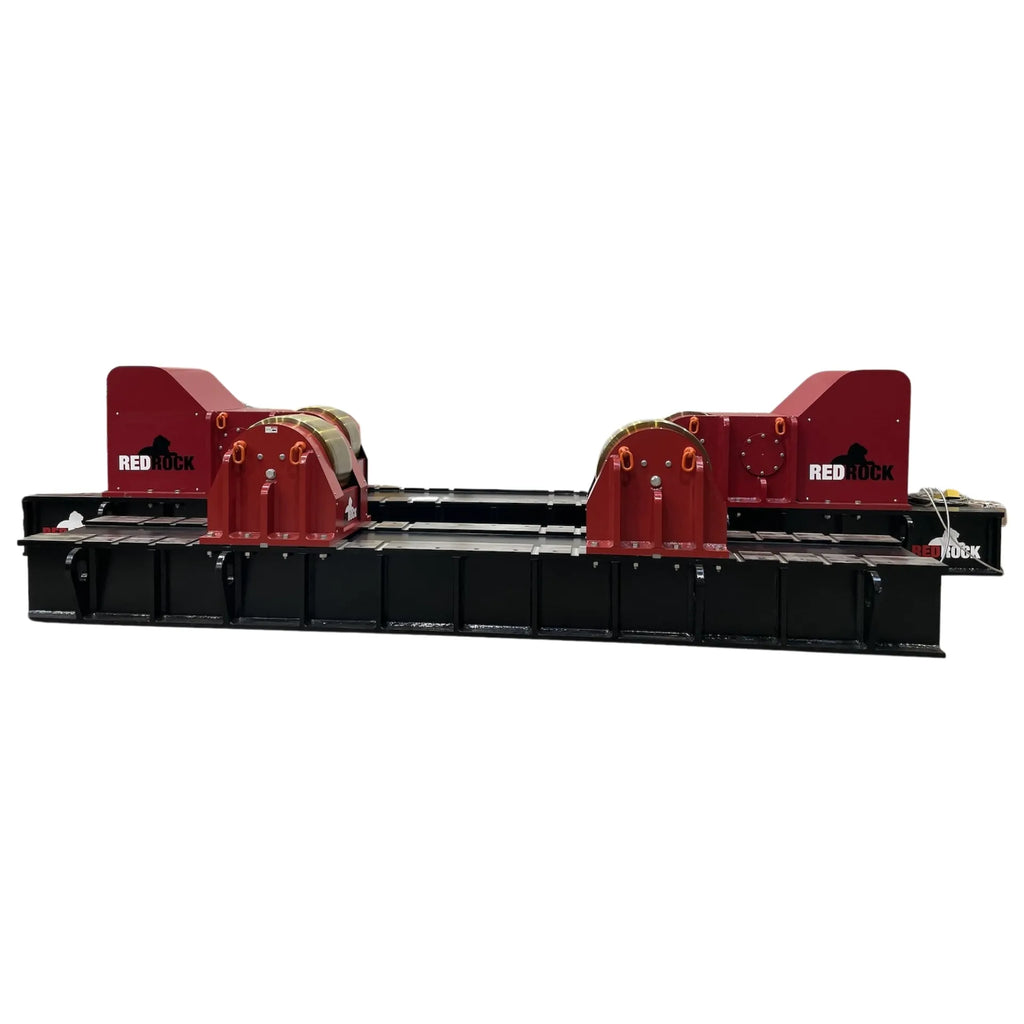

RRW800-1200-PS-50-F-E Redrock 800t Conventional Welding Rotator Set
The Redrock RRW800-1200-PS-50-F-E 800t Conventional Welding Rotator Set is an ultra high capacity industrial positioning system designed for heavy duty vessel fabrication, such as massive wind tower sections, nuclear reactors, and heavy walled pressure vessels.
Built with an uncompromising commitment to structural integrity and operational expertise, the Redrock 800t features robust, heavy-duty chassis construction and high-grade, machined steel rollers, ensuring maximum grip and minimal roller deflection even under maximum load. The drive unit incorporates a highly reliable variable speed AC motor and gearbox system, delivering precise, consistent, and variable rotation speed from 100 to 1,000 mm/min. This granular speed control is critical for optimising weld quality across a wide range of welding processes.
Features
- System Setup: Includes one synchronised, powered Drive unit and one passive Idler unit.
- Individual Load Capacity: 400 metric tonnes (MT) static weight support per individual unit.
- Total Static Load: 800 metric tonnes total supported weight across both units.
- Total Turning Capacity: 1,200 metric tonnes maximum rotational mass capacity.
- Minimum Vessel Diameter: Φ850 mm (configured at a 77° included angle with a 1,000 mm centre-to-centre distance).
- Maximum Vessel Diameter: Up to Φ12,000 mm (configured at a 46° included angle with a 5,000 mm centre-to-centre distance).
- Wheel Dimensions: Heavy-duty solid rollers measuring Φ750 mm x 400 mm.
- Speed Range: Steplessly variable from 100 to 1,000 mm/min
| Technical Data |
| Cat | 800T |
| Model | RRW800-1200-PS-50-F-E |
| Item | Drive / Idler Rotator Set |
| Load Capacity Each | 400MT |
| Total Rotation Capacity | 1200MT |
| Vessel Size Min | Φ850 mm at 77° included angle, at C-C 1000 mm |
| Vessel Size Max | Φ12000 mm at 46° included angle, at C-C 5000 mm |
| Tyre Type & Size | 42 CrMo Steel, Ø750 mm x 400 mm |
| Roller Speed | 100-1000 mm/min |
