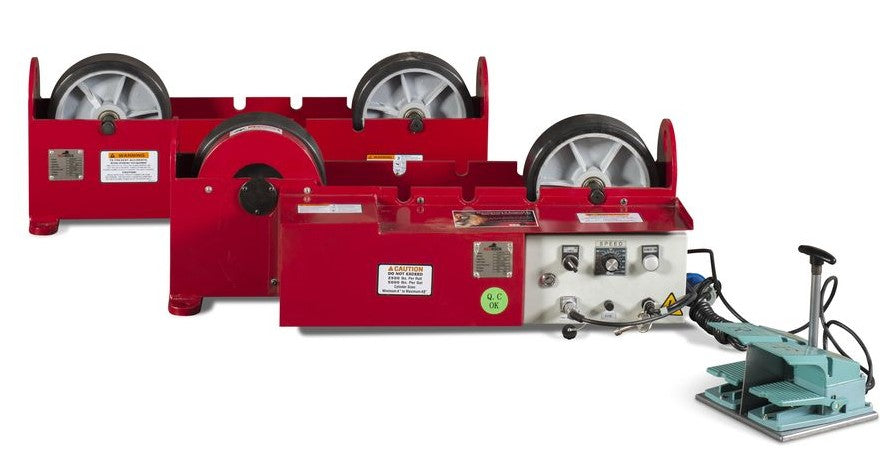

RW3-4.5-SV-6.3-FM Redrock 3t Conventional Welding Rotator Set
A heavy-duty welding rotator manufactured to handle different vessel diameters, lengths and load capacities, resulting in a smooth, consistent rotations.
Engineered for robust performance and exceptional reliability, this heavy-duty system is an indispensable asset for circumferential welding of pipes, tanks, pressure vessels, and boilers. As experts in industrial welding solutions, the conventional rotator Set provides the essential platform for consistent, high-quality seam welding, minimising manual handling and dramatically improving safety standards.
This comprehensive set includes both a drive rotator and an Idler rotator, offering a collective load capacity of 3 metric tons (3T) and a formidable 4.5 MT total rotation capacity, ensuring stability for substantial workpieces. The variable roller speed, ranging from a precise 400 mm/min up to a rapid 4000 mm/min, allows operators to meticulously match the rotation speed to any welding process. Featuring durable Vulcanised Polyurethane (PU) tyres the rotator guarantees superior grip and protects the workpiece surface, making this an ideal choice for professional circumferential welding equipment in demanding industrial environments.
Features
- Rotation Capacity: Handles a total rotation weight of 1.5 tonnes (1,500 kg), providing robust stability for heavy industrial fabrications.
- Set Configuration: Includes a complete assembly of one variable speed drive unit alongside one heavy-duty idler unit.
- Precision Speed Control: Features highly adjustable rotational settings spanning 558 to 5,580 mm/min (driven by 9–90VDC), ensuring exact pace control across various welding techniques.
- Surface Protection: The non-marring properties of the vulcanised PU rollers actively protect the exterior of sensitive metals from scratching or damage during rotation.
- Improved Safety Compliance: Mechanising the rotation of heavy cylindrical objects drastically lowers workplace manual handling hazards.
- Enhanced Output Quality: Providing a stable, steady rotation allows operators to maintain a cleaner, more continuous weld deposition line.
| Technical Data |
| Cat | 003T |
| Model | RW3-4.5-SV-6.3-FM |
| Item | Drive / Idler Rotator Set |
| Load Capacity Each | 1.5MT |
| Total Rotation Capacity | 4.5MT |
| Vessel Size Min | Φ286 mm at 60° included angle |
| Vessel Size Max | Φ1000 mm at 60° included angle |
| Tyre Type & Size | Vulcanised PU, Φ245 mm x75 mm |
| Roller Speed | 400-4000 mm/min |
