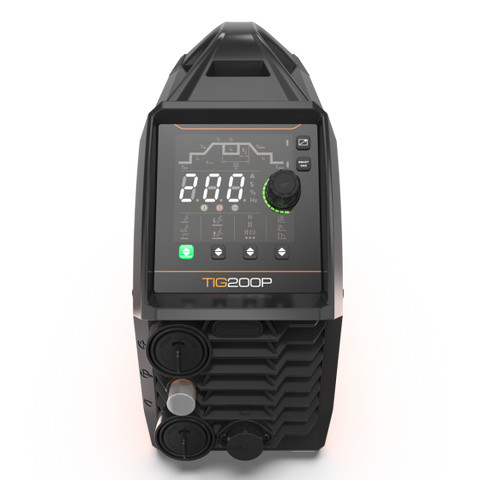

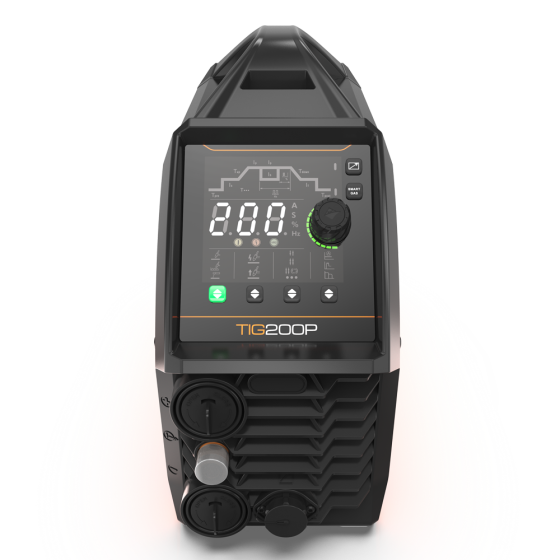

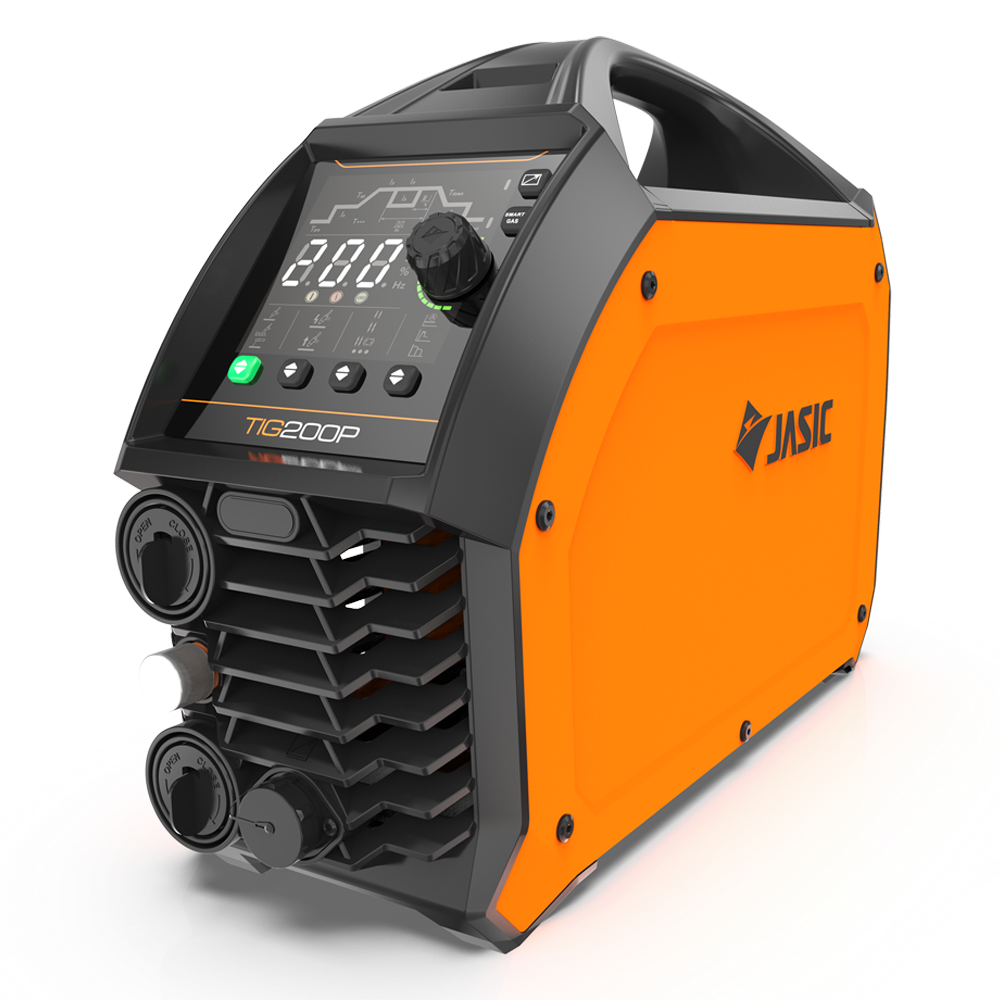

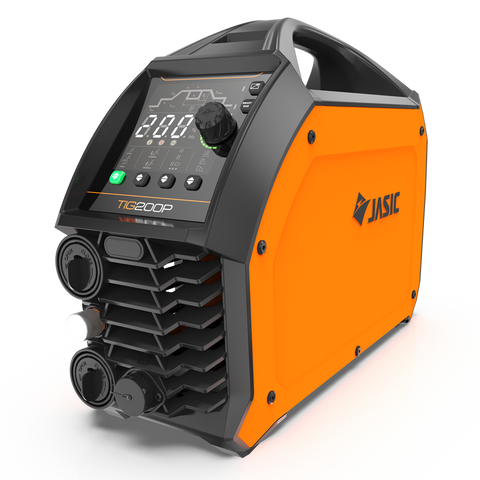

Jasic ET-200P EVO TIG 200 Pulse PFC Inverter c/w Case & Lead Set.
The Jasic TIG 200P PFC is a professional-grade DC pulse TIG inverter designed for durability, efficiency, and performance. Compact, lightweight, and generator friendly, it combines advanced features such as Clear-Vision technology, Dash-Arc, Smart Lift TIG, and Pulse TIG parameters to ensure excellent results across a wide range of welding tasks.
The EVO TIG series come with PFC as standard for increased energy efficiency. They are also auto voltage sensing and can be plugged into 110 or 230V supplies including generators. Furthermore, the input tolerance of the Jasic EVO TIG is from 96V up to 265V meaning it will cope with being used on long extension leads where voltage drop may otherwise be an issue.
Features
- Rugged, ergonomic design
- ClearVision technology
- Full featured DC pulse TIG parameters
- Adaptable wide voltage range
- Dash-Arc
- Smart Lift TIG
- Flexible remote control solutions (optional)
- Power factor correction (PFC), generator friendly
- Quick factory reset; auto sleep mode
- ABAP: Active Balancing Air Passage
- Smart gas for optimised shielding gas consumption
- Fan on demand
- Voltage Reduction Device (VRD)
- Key power electronic component protection
- Overcurrent and overheat protection
- Complete with protective case, torch, leads, regulator
Main Features-The EVO TIG 200P PFC (ET-200) also boasts a set of full featured pulse TIG parameters, in order to provide further control of the arc and the weld puddle. This is achieved by alternating between the peak and the base current, so that the heat going into the work piece is minimised.
An auto sleep mode reduces power consumption, where, when left for a period of time, the machine will go to “sleep” into an energy saving state (running at less than 50w), and returns to full function with any key press.
A Smart Gas option calculates the optimum post gas delay time based on the current setting and weld time.
Improving Performance & Protection-The EVO TIG also has fan on demand meaning the internal cooling fan will only start when it is required, reducing noise as well as power consumption. This also acts to reduce the amount of dust drawn into the welder which will increase the lifespan of the components.
Active Balancing Air Passage (ABAP) on the Jasic EVO series incorporates specially designed tunnels to funnel air through to cool the machine without particle laden air being passed over the components. This efficient cooling system improves the power sources performance and by protecting the components increases the longevity of the machine.
Overcurrent and thermal protection also help to protect the machine from damage.

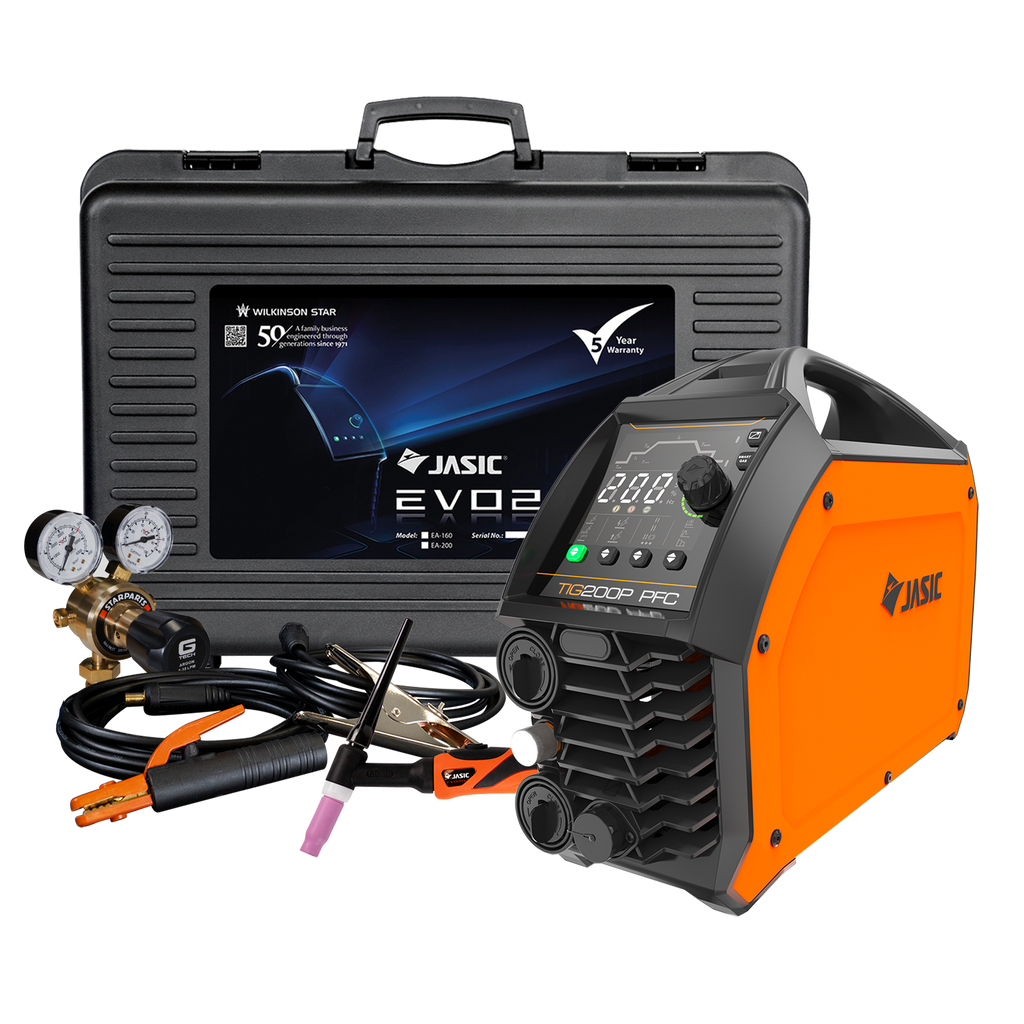

Package Includes:-TIG Inverter Power Source
Protective Case
4 m TIG Torch
MMA Leads
Argon Regulator
Gas Hose
Technical Data
