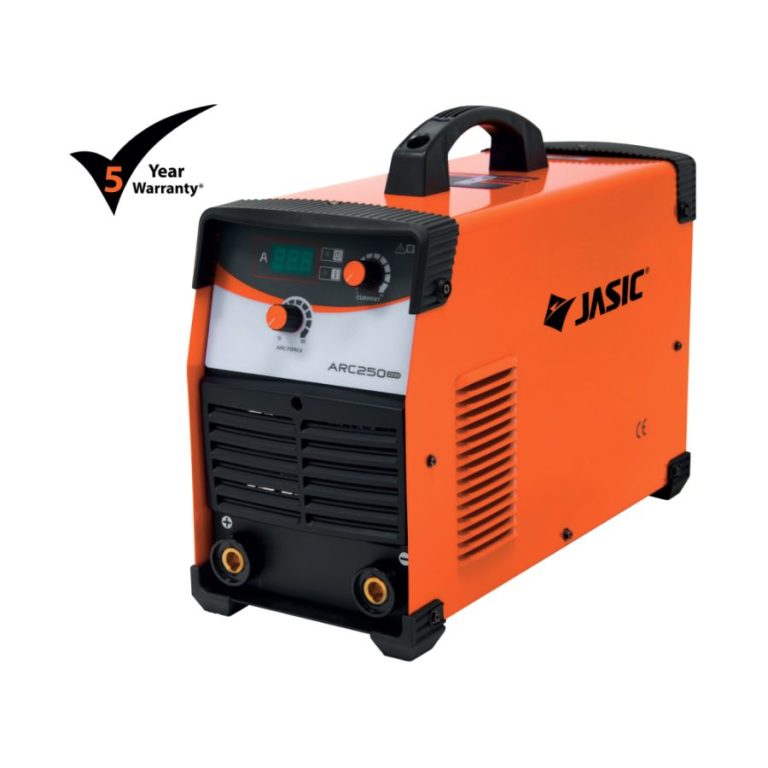

JASIC ARC 250 WELDER; MULTI-PROCESS STICK WELDER
The Jasic Arc 250 is a cost effective, compact and highly portable ‘plug and go’ MMA inverter. Extremely small in size and lightweight, the three phase Jasic Arc 250 is a great portable tool for mobile use or as a lower cost yet quality machine. Able to weld up to a 5.0mm rod, they are excellent for home and agricultural repairs as well as site welding.
The Jasic Arc 250 produces excellent weld characteristics and benefits from easy arc starting and a stable and reliable arc. Jasic Pro Arc inverters feature IGBT inverter technology making it possible to use them safely when powered by a generator.
This arc inverter benefits from ‘Lift TIG’ allowing the user to TIG weld with the same power source. If you would like to make the most of this function, please add the TIG torch by using the drop down options above. Save by buying your TIG torch with the machine at a reduced price.
The Jasic Pro Arc MMA inverter is a compact and lightweight machine weighing just 9.6kg. Rubber mouldings and handle make it perfect for on site maintenance tasks. A duty cycle of 250A @ 60% allows use of up to 5.0mm stick rods.
Jasic arc welding inverters come with an excellent 5 year warranty. The warranties are not subject to service plans and in our experience, are always dealt with quickly and fairly too.
Jasic inverters have a certified ISO 9001 quality management system and a product range that fully complies with CE, RoHS, C-TICK, CSA and CCC standard.
Package Includes:
- MMA inverter power source,
- Cable plugs,
- Operating instructions,
- 5 year extended warranty.
Not Included:
- MMA leads Mains plug,
- TIG torch
- Adaptor & Consumables,
- Shielding gas,
NOTE: TIG Torch will require an earth lead. If the machine, lead set and TIG torch is purchased, the TIG torch can be used with the earth lead from the MMA lead set.
Please call if wanting to purchase MMA welding leads, Tig torch or both, best price given.
Supported by a 5 Year Manufacturers Warranty.
Key Features
- IGBT Inverter technology-for the professional user (Generator Friendly)
- MMA/DC Lift TIG
- Hot start ignition with anti stick
- Voltage Reduction Device for safe welding
- 40Khz Inverter frequency, high-efficiency
- Compact size, lightweight and modern design
- Easy arc starting, minimal spatter
- Stable and reliable arc
- Auto-compensation for voltage fluctuation
- Advanced single PCB construction
- 16 – 25 panel sockets
Technical Data
| Amps range | 20-250A |
| Fuse | 16A |
| Input Power | 9.5kVA |
| Input Voltage | 380V (50/60Hz) |
| No Load Voltage | 60 |
| Duty Cycle | 250A @ 60% |
| Dimensions | 430 x 168 x 312 |
| Approx. weight | 9.6kg |
| Electrode sizes | Up to 5.0mm |
