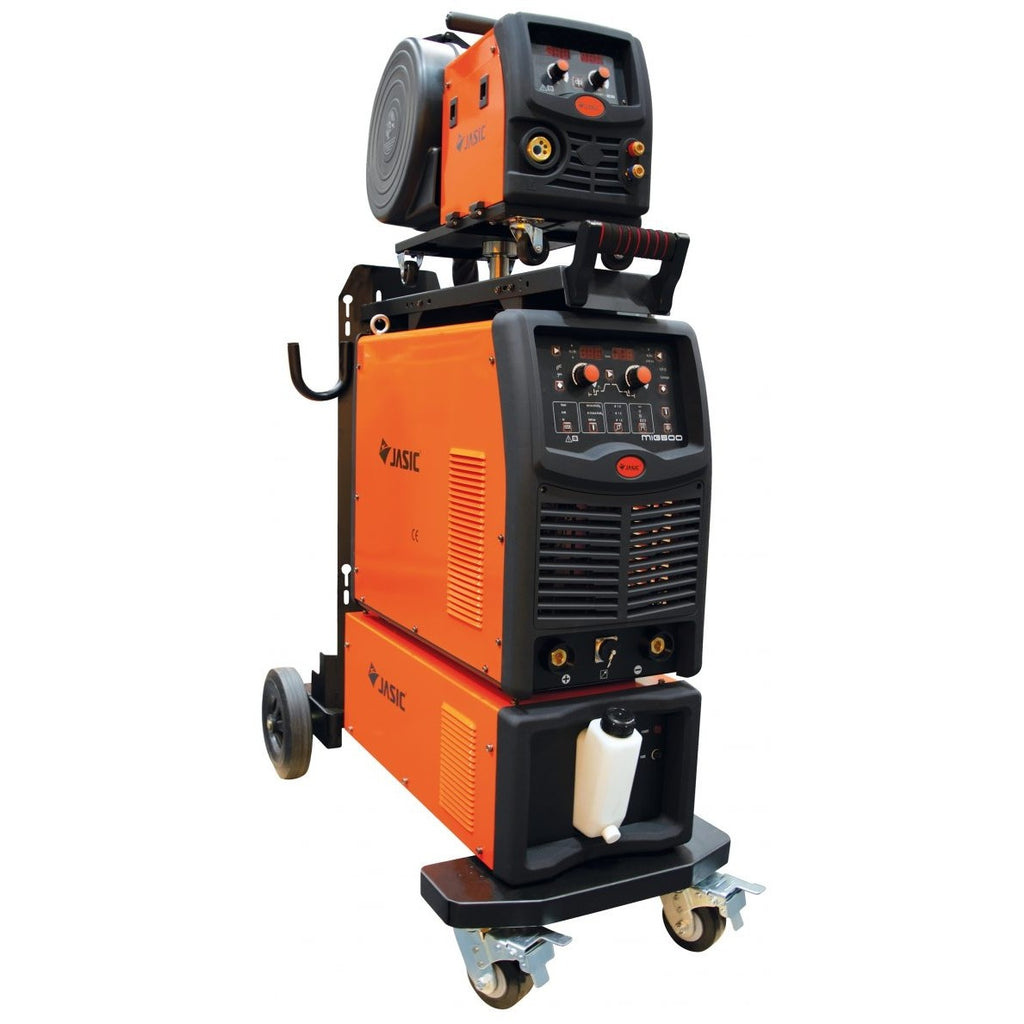

Jasic ZXJM-500P MIG 500 Multi Process Separate Pulse Synergic Inverter Welder
The Jasic MIG 500P is a professional-grade, multi-process digital inverter welder designed to deliver exceptional weld quality across MIG, MAG, MMA and TIG applications. Featuring synergic and pulse MIG modes, advanced DSP digital technology, and a robust water-cooled system, this machine provides the precision, control, and durability that heavy-duty fabrication demands.
Package Includes:-
Inverter power source
Trolley
4-roll wire feed unit
5 m interconnecting cable
Integrated water cooler
Titanium 501 MIG torch
Work return lead & clamp
Gas hose & regulator
MMA leads
Operating instructions
5-year warranty (subject to registration)
Ideal for:-
- Heavy-duty industrial fabrication and production welding
- MIG/MAG pulse and double pulse applications requiring clean, strong welds
- Workshops needing reliable, high duty cycle performance
- Welders requiring multi-process capability in one machine
Features
- IGBT multi-process inverter
- Pulsed MIG, MIG/MAG, TIG and DC MMA welding modes
- Synergic or standard operating settings
- DSP digital technology for optimum welding performance
- Job storage system for saving and recalling settings
- 4-roll geared wire feed unit for smooth wire delivery
- Easy parameter setting with synergic curves for common materials and wires
- Encoder feedback control of wire feed system for precision
- Self-diagnostic system for reliability and ease of servicing
- Smart fan and water cooling control

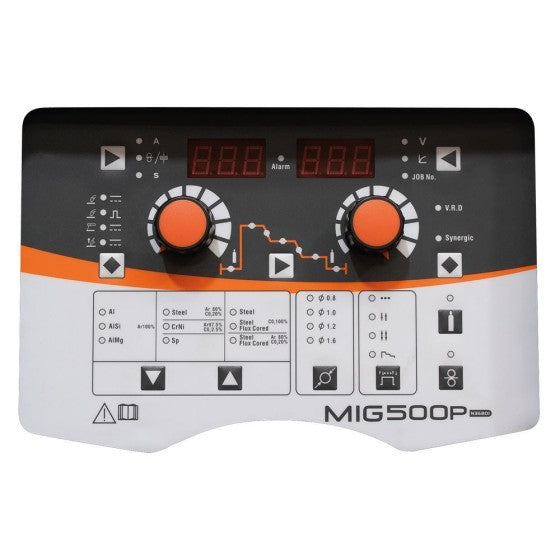

- Power & status LEDs for clear monitoring
- Inverter trolley designed to hold a full-size gas bottle
- Backed by a comprehensive 5-year warranty
Technical Data
- Input Voltage: 400 V ± 20% (3-phase)
- Ieff (A): 28.6
- Input Power (kVA): 26.7
- Voltage Adjustment Range (V): 10 – 50
- Current Range (A): 30 – 500
- Duty Cycle @ 40 °C: 500 A @ 50%
- No-Load Voltage (V): 86
- VRD Voltage (MMA/TIG): 15 V
- Wire Speed (m/min): 1.5 – 23
- Efficiency (%): 92
- Power Factor: 0.9
- Protection / Insulation Class: IP23S / F
- Dimensions (L × W × H): 1080 × 510 × 1180 mm
- Weight: 129 kg
