Powerful MIG/MAG Synergic System
The Jasic MIG 500S is a powerful MIG/MAG synergic welding system. It is suitable for use in the most demanding situations and its digital controls and displays make it easy to use.
It has synergic programs for a wide range of common wires and materials.

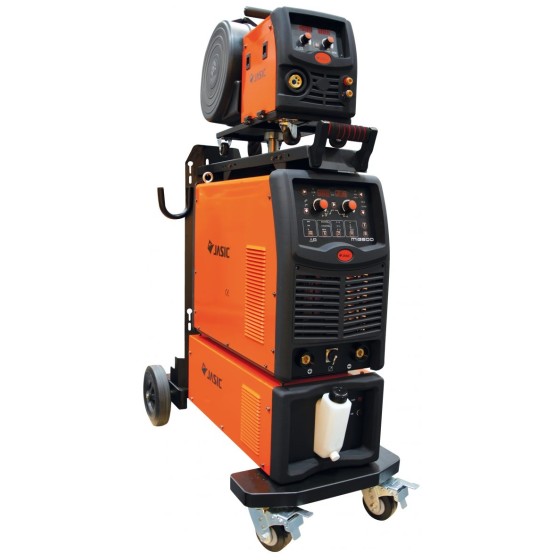

Package Includes
MIG inverter welder, Water Cooler, Inverter Trolley,
4 Roll Wire Feed Unit, Water Cooled MIG welding torch, Earth return lead, Gas hose and Regulator
Inverter Features
-
IGBT multi-process inverter welder
-
DSP digital technology for optimum weld performance
-
High duty cycle
-
4 Roll wire feed unit
-

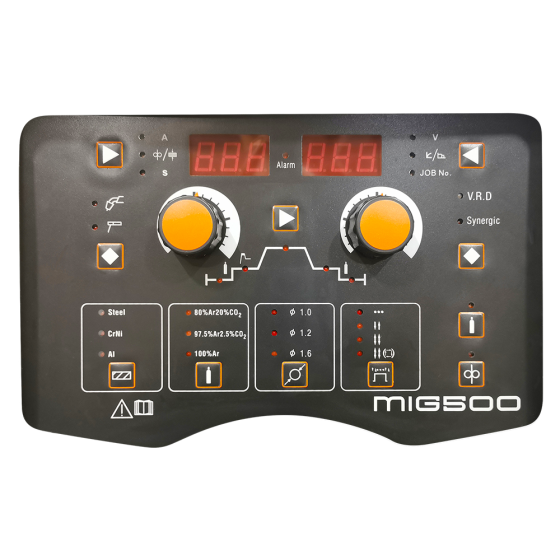

Easy parameter setting for the operator
-
Suitable for 0.8/1.0/1.2/1.6mm wires
-
Self diagnostic system
-
Power & status LED's
-
Encoder feedback control of wire feed system
-
Inverter trolley takes full size gas bottle
-
AVR generator friendly
Technical specifications
- Electrical input voltage - 400V 3 phase
- Input current - 32A
- Amperage range - 60A - 500A MIG / 30A - 500A MMA
- No load voltage - 80V
- Duty cycle - 500A @ 50%
- Max wire spool size - 15KG
- Efficiency - 91%
- Protection/insulation class - IP23S/F
- Dimensions - 1020MM x 505MM x 1390MM
- Weight - 129KG
