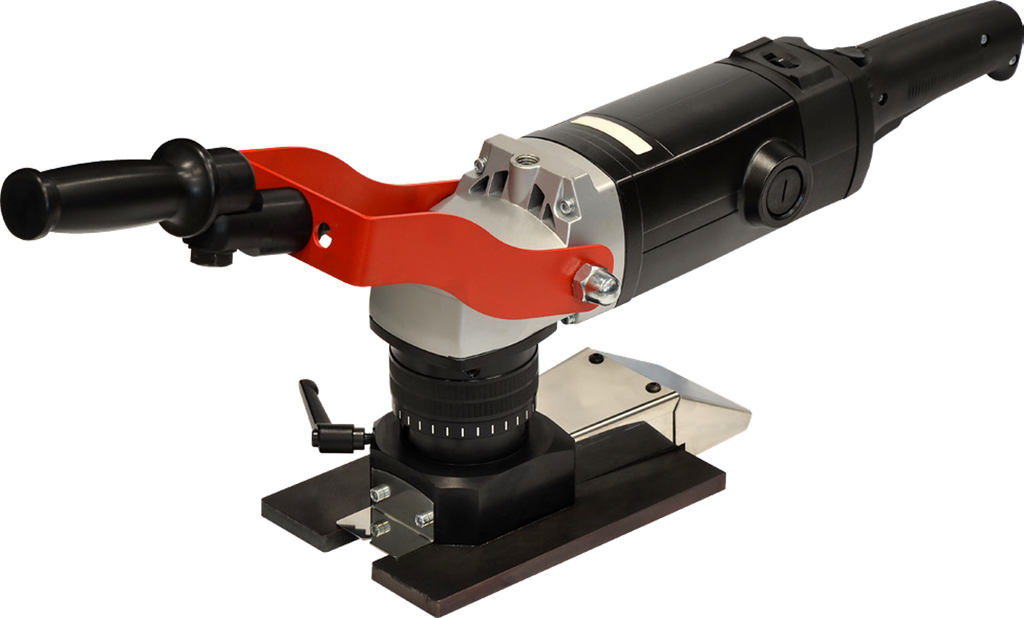

Portable weld shaver WS-30 Weld Milling Machine
The WS-30 weld shaver is an easy-to-use, portable, Industrial heavy-duty machine designed specifically for creating a perfect flush finish on a weld seam joint.
It is capable of machining weld seam removal up to 11 mm high and 30 mm wide, milling down to a level and continuous surface with the rest of the parent metal in preparation for painting, coating or any other further processing.
Featuring a powerful, heavy duty motor with electric speed controls to optimise cutting conditions. Fitted with a rotary face milling head that ensures exceptional efficiency without causing heat distortion.
Standard accessories include a guide rail with magnetic clamping system to maintain a constant position against the workpiece.
Features
| Comfort and ergonomics of work |
| Powerful electric motor |
| Removal of excess weld up to 11 mm high and 30 mm wide |
| Possibility of undercutting to a depth of up to 1.5 mm |
| Continuous milling height adjustment |
| Milling head is equipped with 5 pcs of 2-sided indexable cutting inserts |
| Electronic speed control between 1800–5850 rpm |
| Overload protection |
Specifications
| Voltage | 1~ 220-240 V, 50-60 Hz |
| Power | 2200 W |
| Spindle speed (without load) | 1800-5850 rpm |
| Max. milling width | 30 mm |
| Max. milling height | 11 mm |
| Max. milling depth | -1.5 mm |
| Weight | 12,5 kg (27 lb) |
| Product Code | UKS-0761-10-20-00-0 |
