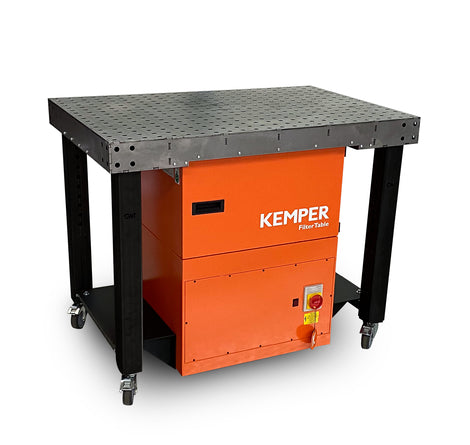

Kemper 950400020 FilterTable GWT Combination of Welding Table and Filter Unit
The fume extraction FilterTable GWT is an affordable combination of working table and filter unit. The large work surface allows for effective work during welding with low to medium levels of smoke and dust. The device with disposable filter is suitable for occasional to frequent use.
- Low to medium levels of smoke and dust
- Occasional to frequent use
- Cobot applications
- Maintenance door allows easy filter change
- Effective spark protection ensures maximum safety
- Clamping options via clamping hole Ø 16mm
- Downdraft extraction throughout the whole working area
- Wide range of applications due to large working area of 1,200 x 800mm
- Dense bore grid 50mm
- Smooth repositioning by means of rollers
- Large, robust material support
- Activated charcoal filter (optional)
- Load capacity up to 1000kg (static)
- Down-draft system
- Protective wall enclosure (optional)
Filter
Filter stages-2
Filter method-Storage Filter
Filter surface-15,8 m²
Type of filter-Filter cassette
Filter material-Non-woven fibre
Filter class-F9
Additional filters-Pre-filter (aluminium)
Specifications
Extraction capacity-1400 m³/h
Max. fan performance-3000 m³/h
Maximum vacuum-3.000 Pa
Dimensions (w x t x h)-1200 x 800 x 970 mm
Weight-245 kg
Motor power-1,5 kW
Power supply-3 x 400 V / 50 Hz
Rated current-3,2 A
Noise level-71 dB(A)
