Kemper Start-Stop Set 2 '' (HV) Power supply by cable 32A
- Both outlets can be used simultaneously.
- Box version contains an all-pole switch-disconnector in the enclosure
- 1m cable length from motorised damper to connection box
- 10m cable length from connection box to Start-Stop-box
- After-run time for opening the damper can be individually adjusted
- By the connectionbox a further light hood can be connected.
- Start Stop box
- Connection box
- Motorised damper
- Installation material
- Cable
- PVC Installation pipe

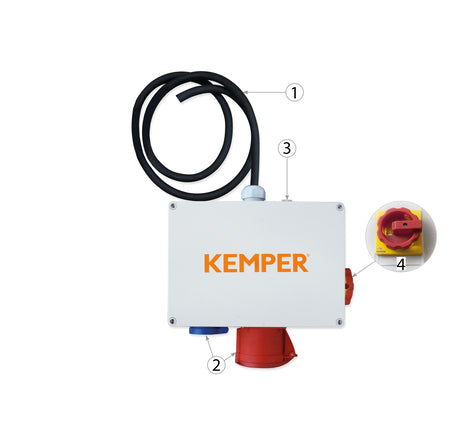

Mode of Operation
- Start-Stop box power connection direct or with CEE plug (1)
- (2) The electronic unit is connected to the User Box
- (3) The box detects the current flow and opens the connected electric motorised damper.
- For direct electrical connection the box is equipped with a circuit breaker (4)
- The damper closes automatically after the work process is finished
Technical Data
Diameter damper-2'' (HV)/160mm/250mm/355mm
Dimensions (w x t x h)-254 x 111 x 180 mm
Power supply-3 x 400 V / 50 Hz + N + PE
Power supply-Cable connection 32 A
Exit 1-CEE plug 32 A / 5-pin-Single phase socket 16 A
Circuit breaker-Yes
