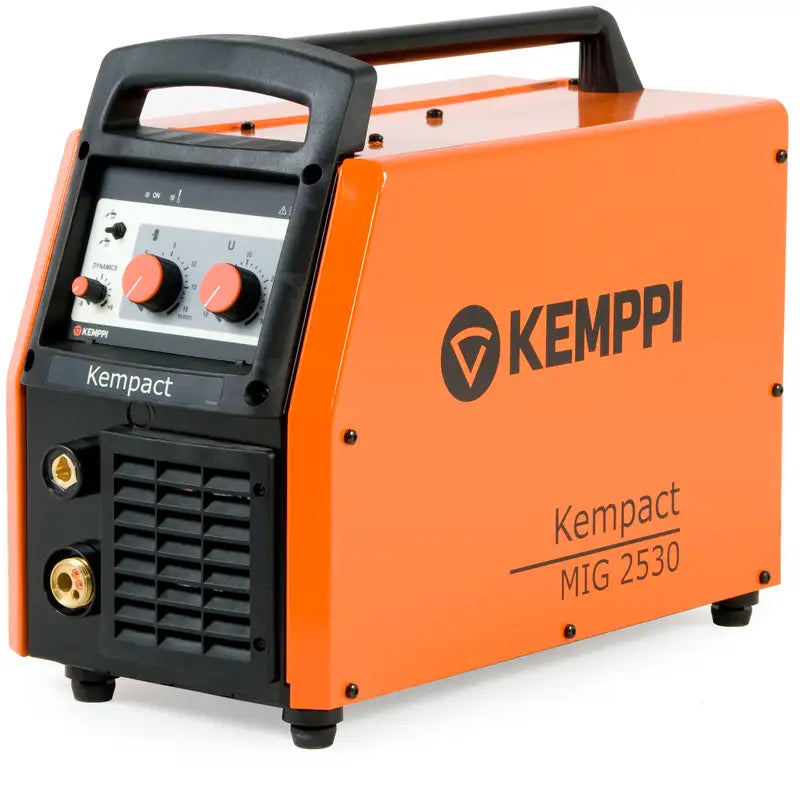

Kemppi 621853002 KEMPACT MIG 2530 Synergic Mig Welder

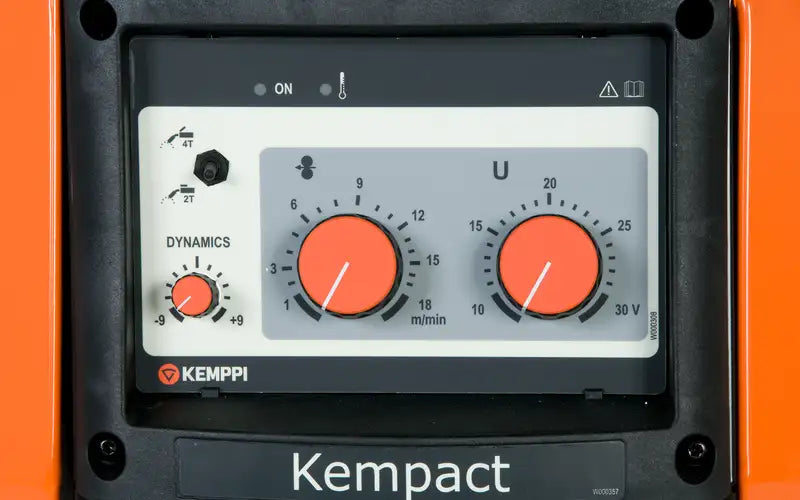

The Kempact 2530 is 70% lighter in weight than traditional step-regulated machines. Electronic voltage and wire speed control allow arc tuning during the welding process so you can quickly establish the desired weld settings. It also includes gun trigger latching and a wire-inch function.
The Kempact MIG machines have superb arc performance. Excellent arc ignition assisted by burn back time technology guarantee satisfaction. Electronic arc dynamics control offers the best arc performance in all situations.
Kemppi MIG welder with separate controls for voltage and wire feed speed. Discover superior arc performance with excellent arc ignition in all situations. The delivery package includes an earth return cable (35 mm², 5 m) and a gas hose (6 m).
Features
- Basic MIG/MAG model
- 4-roll wire drive system
- Electronic power regulation
- Maximum output at 40% duty cycle
- Light weight: 22 kg
- Suitable for power generator use
- Kemppi 3+ warranty for parts and labour
Technical Data
| Mains connection voltage | 380...440 V ±10 % |
| Mains connection phases | 3~50/60 Hz |
| Mains connection cable type | 4G, H07RN-F |
| Mains connection cable size | 1.5 mm² |
| Rated maximum input power [S1max] | 12 kVA |
| Mains fuse | 16 A |
| Open circuit voltage [Uav] | 30 ... 45 V |
| Output, duty cycle % at rated max. current, MIG | 40 % |
| Output at +40 °C, rated max current, MIG | 250 A |
| Output at +40 °C, 60% MIG | 207 A |
| Output at +40 °C, 100% MIG | 160 A |
| Power factor at rated maximum current [λ] | 0.64 |
| Efficiency at rated maximum current [η] | 87 % |
| EMC class | A |
| Filler wire diameter, Fe | 0.6 ... 1 mm |
| Filler wire diameter, Ss | 0.6 ... 1 mm |
| Filler wire diameter, MC/FC | 0.9 ... 1.2 mm |
| Filler wire diameter, Al | 0.9 ... 1.2 mm |
| Wire feed speed | 1 ... 18 m/min |
| Maximum wire spool weight | 15 kg |
| Maximum wire spool diameter | 300 mm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Degree of protection (fully installed) | IP23S |
| External dimensions, length | 580 mm |
| External dimensions, width | 280 mm |
| External dimensions, height | 440 mm |
| Weight without accessories | 20 kg |
| Standards | IEC/EN 60974-1, IEC/EN 60974-5, IEC/EN 60974-10 |
